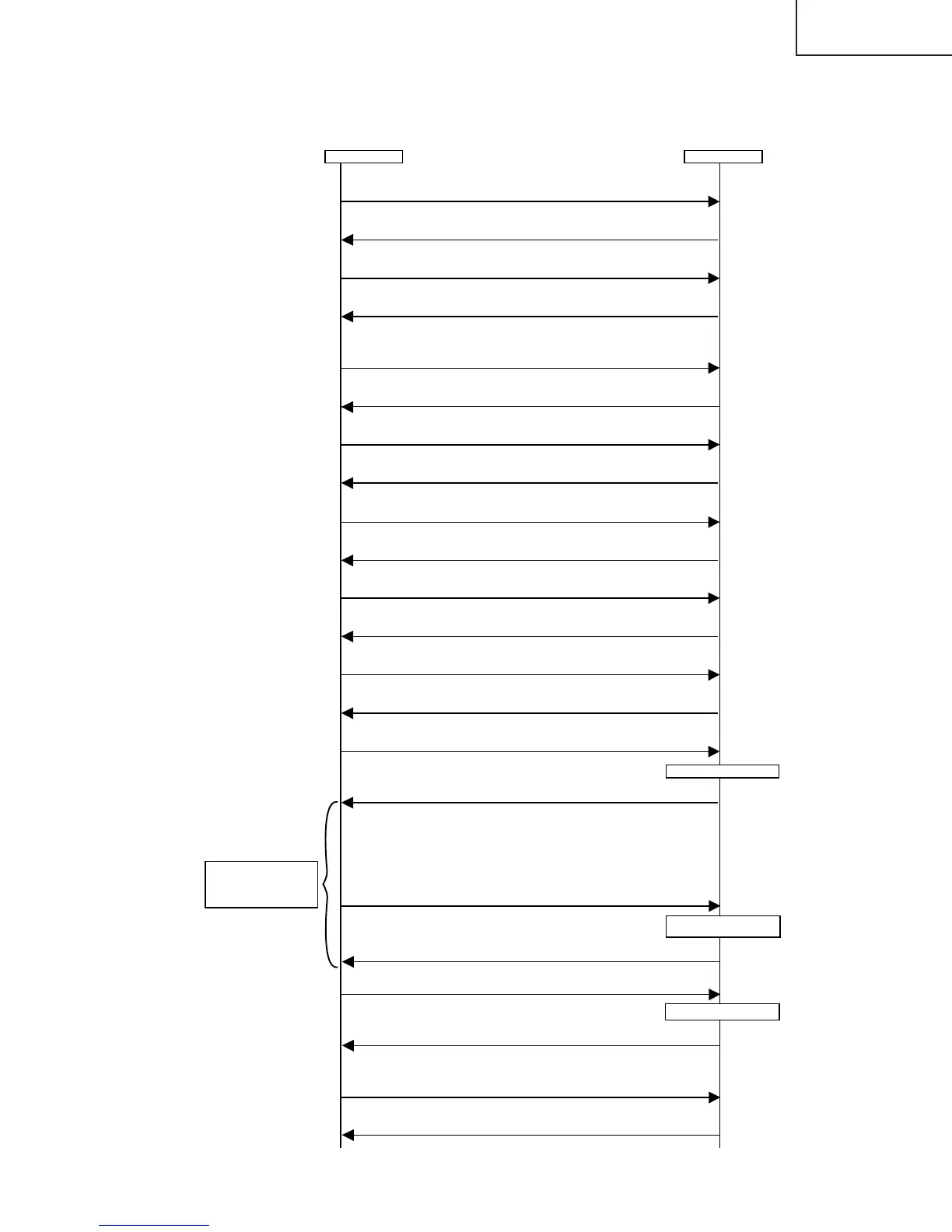

(3) White balance adjustment sequence
Activate process command (STEP1).
KRSW0001
Command is accepted.
ERR
Activate process command (STEP2).
KKT10037
Process command is
activated.
OK
Remote control
disable command
KYOF0000
Setting is complete.
OK
Inhibit command for the OSD display
OSDS0001
Setting is complete.
OK
Set the light level to +12 using dimmer control command.
SBSL0012
Setting is complete.
OK
Set the multipoint adjustment mode.
MSET0001
The mode is set.
OK
Initialize adjustment values.
MSET0004
Initialization is done.
OK
Adjustment gradation setting (Standard value 6 = 236 gradation)
LEV60236
Adjustment value is set.
OK
Adjust RGB to the target xy values.
MG6GXXXX
MG6BXXXX
MG6RXXXX
* XXXX indicates adjustment values between 0000 - 1023 (4 digit decimal
number with zero fill).
*
In order to adjust by reducing the value, set the strongest color as the fixed color.
* Default adjustment value of RGB is the parameter value of LEV6 command
multiplied by 4.
Adjustment values are set.
OK
Adjustment gradation setting (Standard value 5 = 200 gradation)
LEV60200
Adjustment value is set.
OK
Correct G value.
MG5GXXXX
Adjustment value is set.
OK
When G is changed at adjustment gradation setting (standard value 6 = 236 gradation), calculate the ratio of the
change and set the following value to XXXX: (the value set with LEV5) x 4 x (the ratio).
PC
Set
Repeat until values are
properly
adjusted.
1
1
Pattern display
Reflecting adjustment
values to images
Pattern display
(3) White balance adjustment sequence
Adjustment is available in any input or position. There is no specific order to adjust high and low, either.
