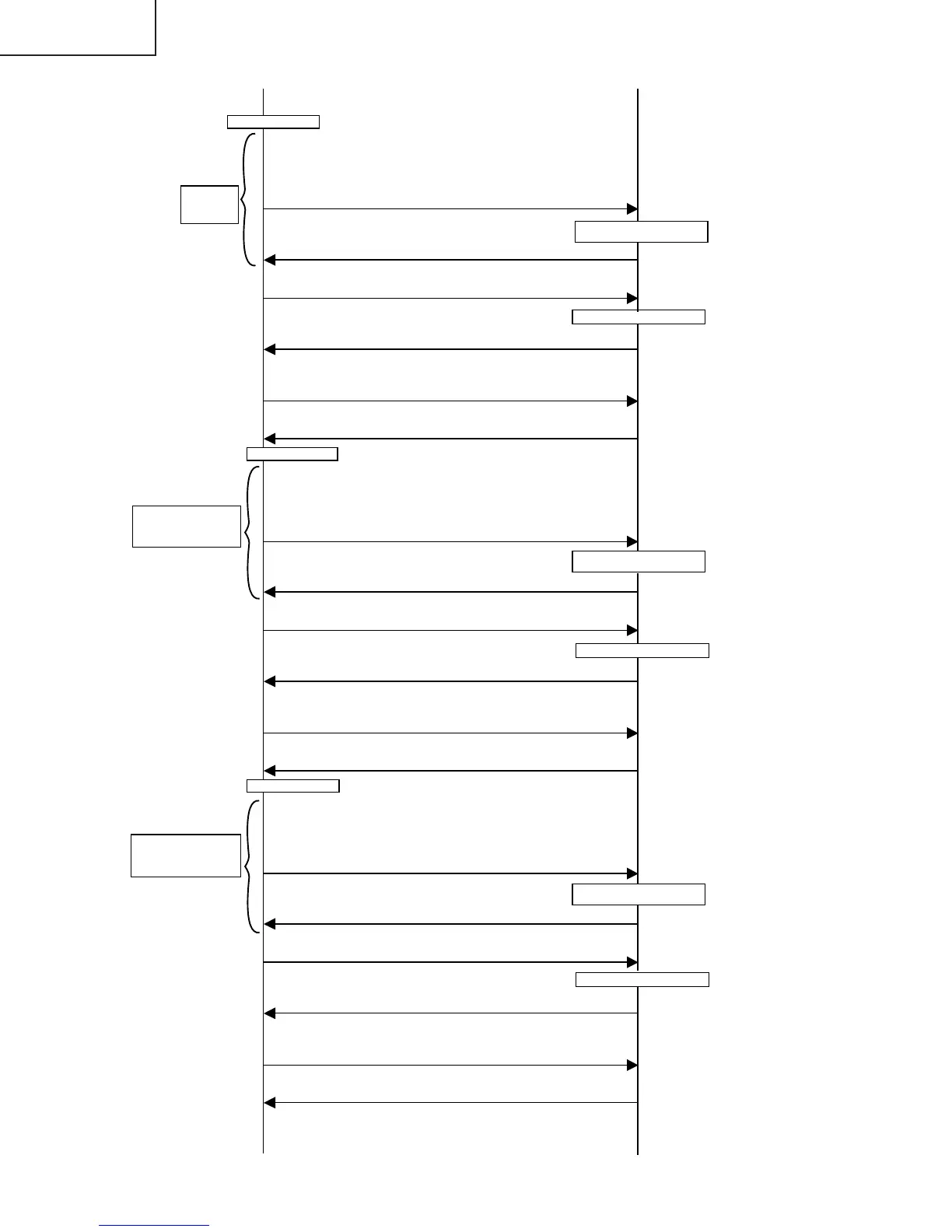

Adjust RB to the target xy values.
MG5RXXXX
MG5BXXXX
* XXXX indicates adjustment values between 0000 - 1023 (4 digit decimal number with zero fill).
* G is fixed.
* Default adjustment value of RGB is the parameter value of LEV5 command multiplied by 4.
Adjustment values are set.
OK
Adjustment gradation setting (Standard value 4 = 144 gradation)
LEV40144
Adjustment value is set.
OK
Correct G value.
MG4GXXXX
Adjustment value is set.
OK
Adjust RB to the target xy values.
MG4RXXXX
MG4BXXXX
* XXXX indicates adjustment values between 0000 - 1023 (4 digit decimal number with zero fill).
* G is fixed.
* Default adjustment value of RGB is the parameter value of LEV4 command multiplied by 4.
Adjustment values are set.
OK
Adjustment gradation setting (Standard value 3 = 116 gradation)
LEV60116
Adjustment value is set.
OK
Correct G value.
MG3GXXXX
Adjustment value is set.
OK
Adjust RB to the target xy values.
MG3RXXXX
MG3BXXXX
* XXXX indicates adjustment values between 0000 - 1023 (4 digit decimal number with zero fill).
* G is fixed.
* Default adjustment value of RGB is the parameter value of LEV3 command multiplied by 4.
Adjustment values are set.
OK
Adjustment gradation setting (Standard value 2 = 66 gradation)
LEV60066
Adjustment value is set.
OK
Correct G value
MG2GXXXX
Adjustment value is set.
OK
When G is changed at adjustment gradation setting (standard value 6 = 236 gradation), calculate
the ratio of the change and set the following value to XXXX: (the value set with LEV2) x 4 x (the ratio).
When G is changed at adjustment gradation setting (standard value 6 = 236 gradation), calculate
the ratio of the change and set the following value to XXXX: (the value set with LEV3) x 4 x (the ratio).
Start of measurement
When G is changed at adjustment gradation setting (standard value 6 = 236 gradation), calculate
the ratio of the change and set the following value to XXXX: (the value set with LEV4) x 4 x (the ratio).
Start of measurement
Repeatuntil
valuesare
properly
adjusted
Repeat until values are
properly adjusted.
Repeat until values are
properly adjusted.
Start of measurement
1 1
Reflecting adjustment values to
images
Pattern display
Reflecting adjustment values to
images
Reflecting adjustment values to
images
Pattern display
Pattern display
2 2
