Sharp LC-45GD5U User Manual

37
LC-45GD5U
MG2RXXXX
MG2BXXXX
* XXXX indicates adjustment values between 0000 - 1023 (4 digit decimal number with zero fill).
* G is fixed.
* Default adjustment value of RGB is the parameter value of LEV2 command multiplied by 4.
Adjustment values are set.
OK
Adjustment gradation setting (Standard value 1 = 50 gradation)

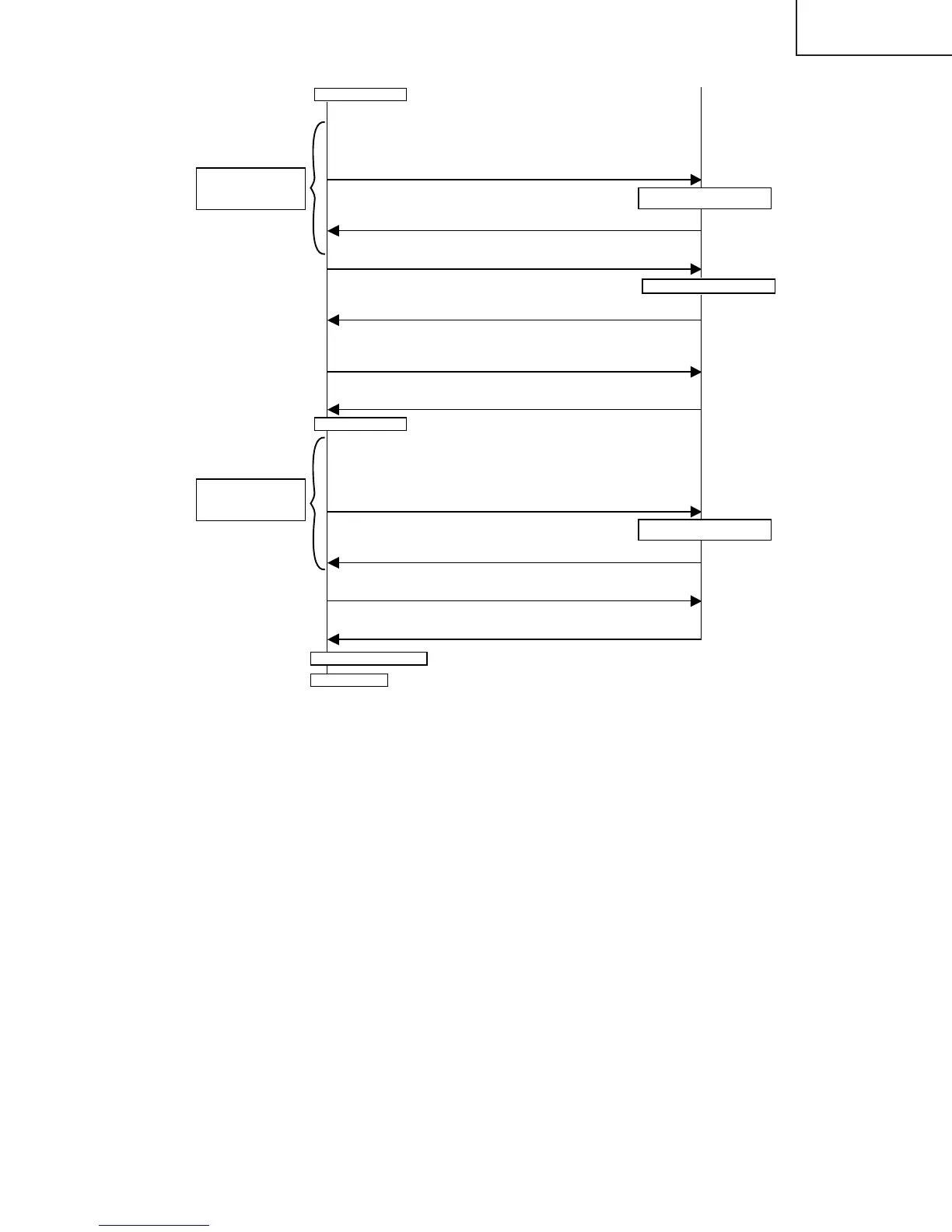

LEV60050
Adjustment value is set.
OK
Correct G value.
MG1GXXXX
Adjustment value is set.
OK
Adjust RB to the target xy values.
MG1RXXXX
MG1BXXXX
* XXXX indicates adjustment values between 0000 - 1023 (4 digit decimal number with zero fill).
* G is fixed.
* Default adjustment value of RGB is the parameter value of LEV1 command multiplied by 4.
Adjustment values are set.
OK
Save adjustment values.
MSET0003
Adjustment values are saved.
OK
Completion of adjustment
Turn off AC power
When G is changed at adjustment gradation setting (standard value 6 = 236 gradation), calculate
the ratio of the change and set the following value to XXXX: (the value set with LEV1) x 4 x (the ratio).
Repeat until values are
properly adjusted.
Repeat until values are
properly adjusted.
Adjust RB to the target xy values.
Start of measurement
Start of measurement
Reflecting adjustment values to
images
Reflecting adjustment values to
images
Pattern display
2 2
