Connecting external devices
Before connecting ...
Be sure to turn off the TV and any devices before making any connections.
Firmly connect a cable to a terminal or terminals.
Carefully read the operation manual of each external device for possible connection types. This also helps you get the best
possible audiovisual quality to maximise the potential of the TV and the connected device.
Refer to page 46 for connecting a PC to the AVC System.

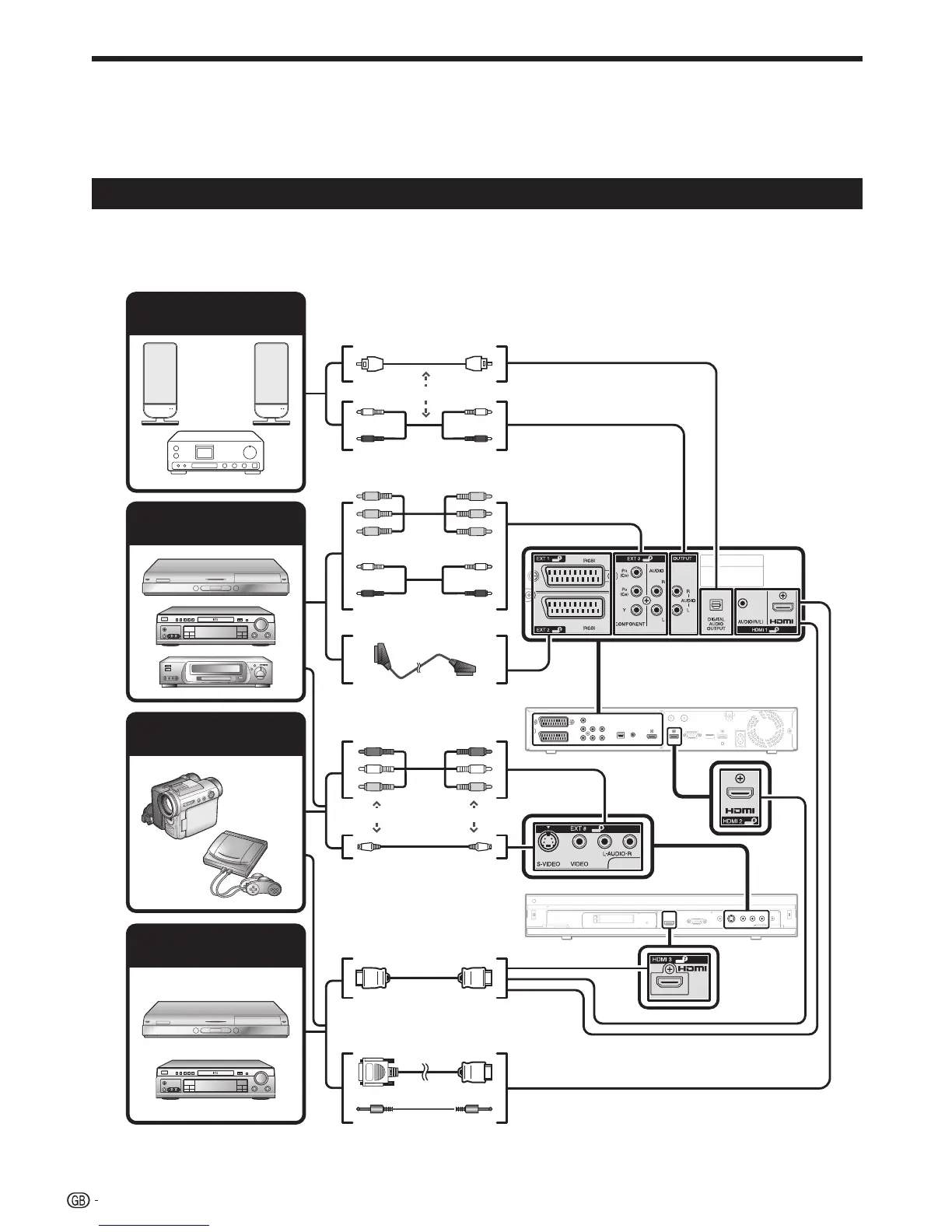

Introduction to connections
The AVC System is equipped with the terminals as shown below. Find the cable corresponding the terminal and connect the device.
NOTE
The cables illustrated in pages 22–25 are commercially available items.
E
•
•
•
•
•
S-video cable*
When using an S-video cable, you also need to connect an audio cable (R/L).*
22
Audio device (Page 25)
Video recording device
(Pages 23 and 24)
Game console or camcorder
(Pages 23 and 24)
HDMI-certified cable
DVI/HDMI cable
ø 3.5 mm stereo minijack cable
AV cable*
Audio cable
Optical audio cable
SCART cable
Component cable
Audio cable
HDMI device (Page 23)
or
or or
Rear view
Front
view
To Next Page
