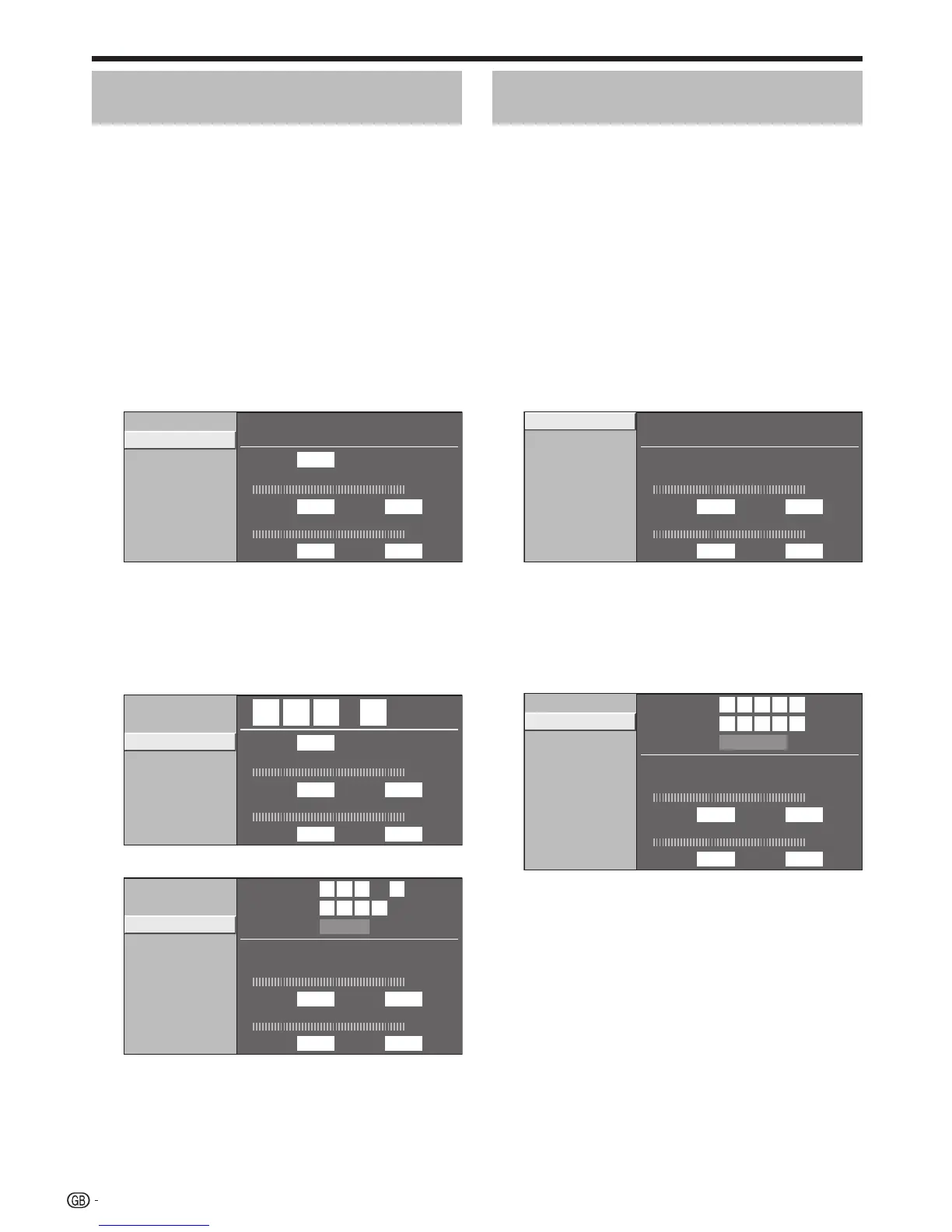

Checking signal strength and
channel strength (DVB-T/C)
If you install a DVB-T/C antenna for the first time or
relocate it, you should adjust the alignment of the
antenna to receive a good reception while checking
the antenna setup screen.
Press MENU and the “MENU” screen displays.
Press c/d to select “Setup”.
Press a/b to select “Antenna Setup-DIGITAL”,
and then press OK.
Press a/b to select “Digital Setup”, and then
press OK.
Checking signal strength
Press a/b to select “Signal Strength”, and then
press OK.
Signal Strength
Supply Voltage
Channel Strength
Signal Strength
Quality
Current Max 0
CH No. 21
0
Current Max 0 0
Checking channel strength
Press a/b to select “Channel Strength”, and
then press OK.
You can input a specified frequency band using the
0–9 numeric buttons.
Channel strength of DVB-T
Signal Strength
Supply Voltage
Channel Strength
Signal Strength
Quality
Current Max0
CH No. 21
0
Current Max00
474. 0
MHz
Channel strength of DVB-C
Signal Strength
Supply Voltage
Channel Strength
Signal Strength
Quality
Current Max0
Frequency
Symbol rate
QAM Modulation
4
*******
74
64
0 MHz.
0
Current Max00
Position and align the antenna so that the
maximum possible values for “Signal Strength”
and “Quality” are obtained.
NOTE
The values of “Signal Strength” and “Quality” indicate when
to check the appropriate alignment of the antenna.
1
2
3
4
E
E
•
5
•
Quick guide
Checking signal strength and
channel strength (DVB-S)
If you install a DVB-S antenna for the first time or
relocate it, you should adjust the alignment of the
antenna to receive a good reception while checking
the antenna setup screen.
Press MENU and the “MENU” screen displays.
Press c/d to select “Setup”.
Press a/b to select “Antenna Setup-DIGITAL”,
and then press OK.
Press a/b to select “Satellite Setup”, and then
press OK.
Checking signal strength
Press a/b to select “Signal Strength”, and then
press OK.
Signal Strength
Channel Strength
Signal Strength
Quality
Current Max 0 0
Current Max 0 0
Checking channel strength
Press a/b to select “Channel Strength”, and
then press OK.
You can input a specified frequency band using the
0–9 numeric buttons.
Channel strength of DVB-S
Signal Strength
Channel Strength
Signal Strength
Quality
Current Max0
Frequency
Symbol rate
Band
4
********
74
Vert/Low
00 MHz
0
Current Max00
1
2
3
4
E
E
•
16
