CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS (LC-60EQ10U/SQ10U,15U,17U)

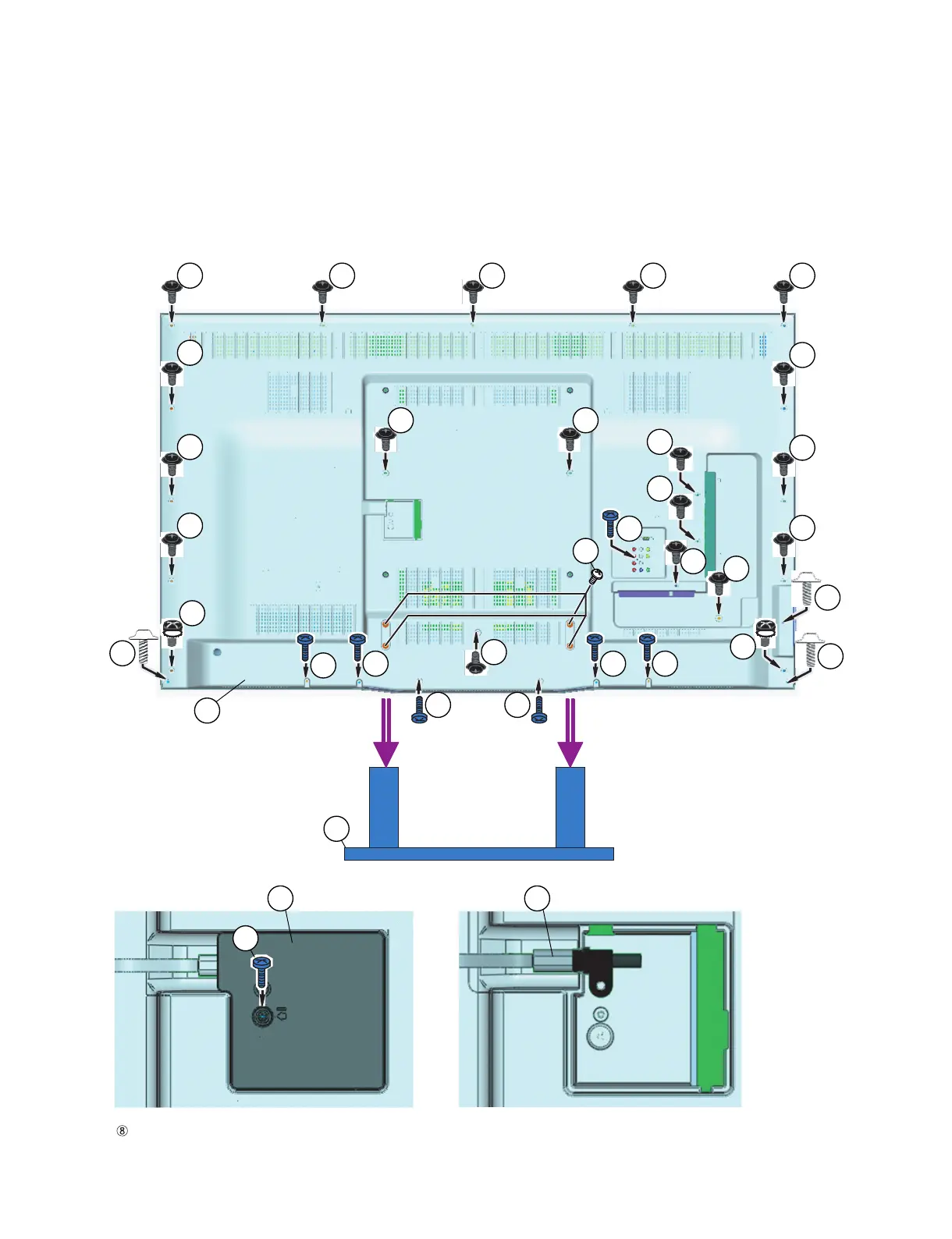

1. Removing of Stand Unit and Rear Cabinet Ass’y.
1. Remove the 4 lock screws (1) and detach the Stand Unit (2).
2. Remove the 1 lock screw (3) and detach the AC Cord Cover (4).
3. Disconnect AC Wire and detach the AC Cord (5).
4. Remove the 3 lock screws (6), 7 lock screws (7), 2 lock screws (8), 18 lock screws (9) and detach the Rear Cabinet Ass'y (10).
NOTE: only these places use different screws (plactic screws).
These are for heat measures.Please be careful.
