LC-60/70EQ10U,SQ10U/15U/17U,TQ15U,UQ17U
8 – 1
LC-60EQ10U
Service Manual
CHAPTER 8. OVERALL WIRING/SYSTEM BLOCK DIAGRAM

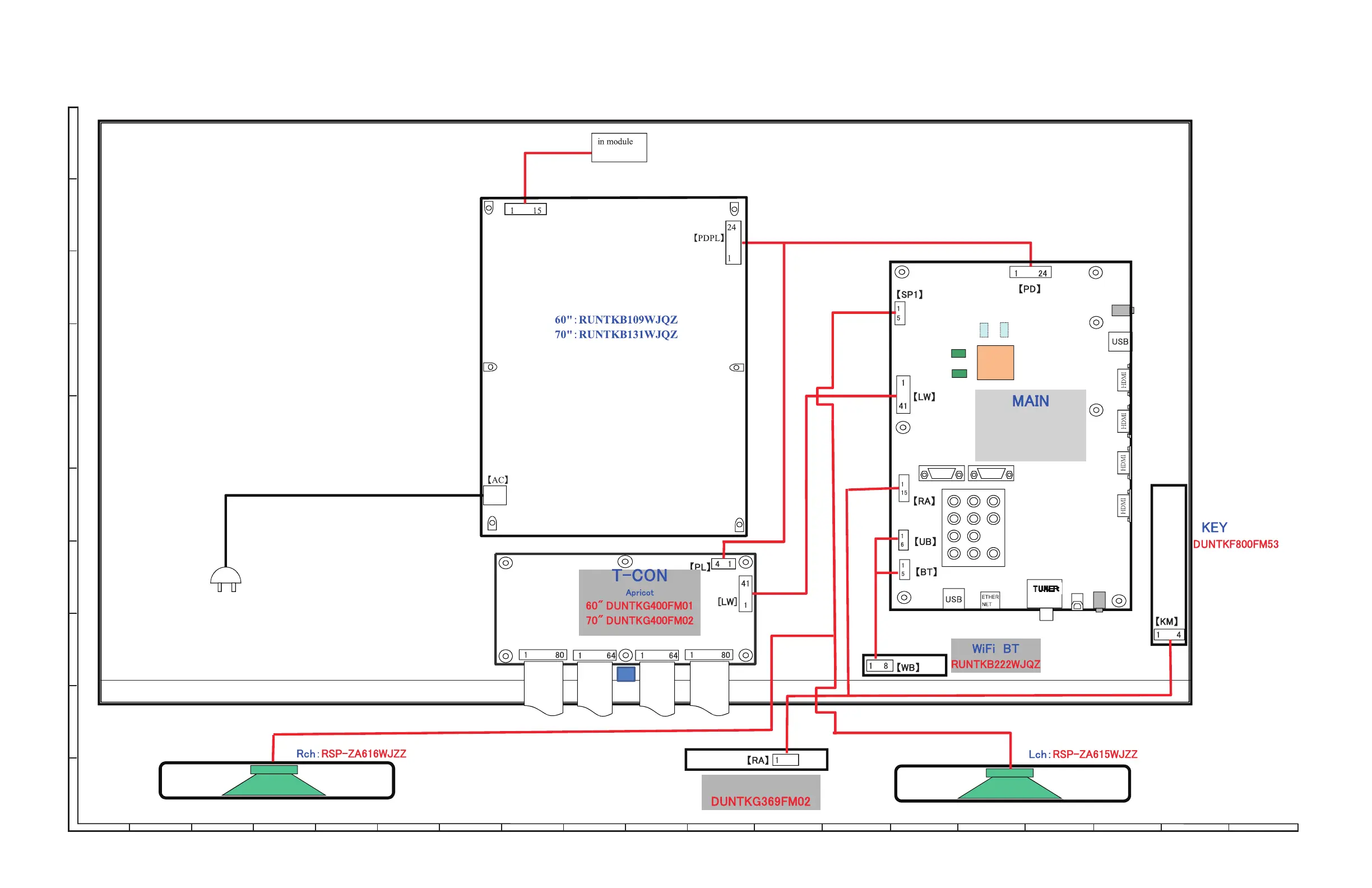

[1] OVERALL WIRING DIAGRAM (LC-60/70EQ10U)
1
23
1097654
8
J
A
B
C
D
E
F
G
H
I
1311 191816151412 17
POWER/DRIVE UnitPOWER/DRIVE Unit
QCNW-N702WJZZ
60:QCNW-N236WJZZ
70:QCNW-N241WJZZ
60:QCNW-N236WJZZ
70:QCNW-N241WJZZ
QCNW-M030WJZZQCNW-M030WJZZ
QCNW-N243WJZZ
QCNW-N242WJZZ
R/C ICON Unit
DKEYMG381FM01
