[2] REMOVING OF MAJOR PARTS (LC-70EQ10U/SQ10U,15U,17U)

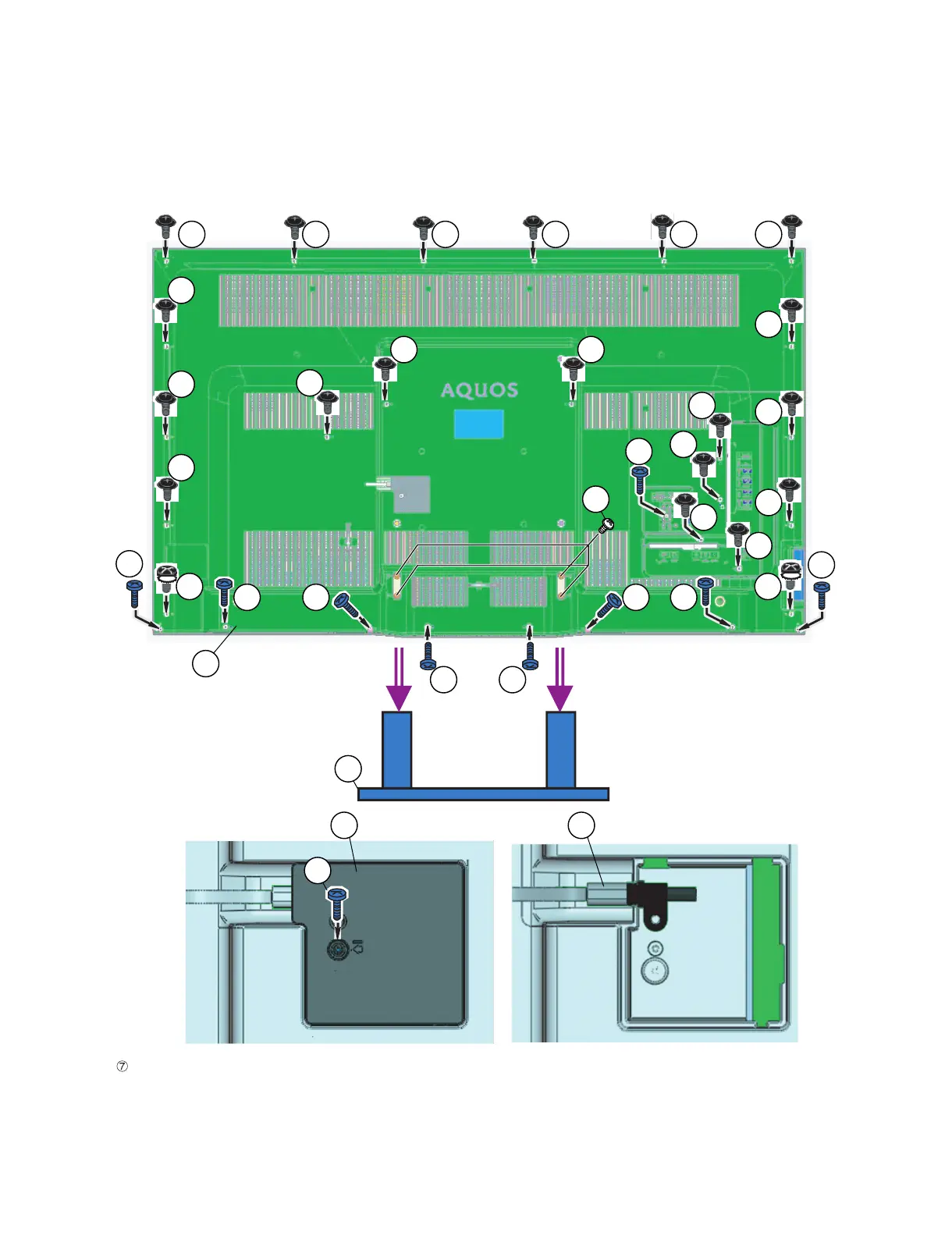

1. Removing of Stand Unit and Rear Cabinet Ass’y.
1. Remove the 4 lock screws (1) and detach the Stand Unit (2).
2. Remove the 1 lock screw (3) and detach the AC Cord Cover (4).
3. Disconnect AC Wire and detach the AC Cord (5).
4. Remove the 9 lock screws (6), 2 lock screws (7), 19 lock screws (8) and detach the Rear Cabinet Ass'y (9).
NOTE: only these places use different screws (plastic screws).
These are for heat measures.Please be careful.
