LC-60/70EQ10U,SQ10U/15U/17U,TQ15U,UQ17U
4 – 37
[12] Precautions for assembly (LC-60/70UQ17U)
1. Points to be checked and precautions when servicing the unit
Mount the main PWB Ass’y on the backlight chassis and check that the EMI-prevention parts are not peeled and twisted from the access holes. (The
EMI-prevention parts, conductive nonwoven fabric gaskets, must be seen from the access holes.)
[Countermeasure]

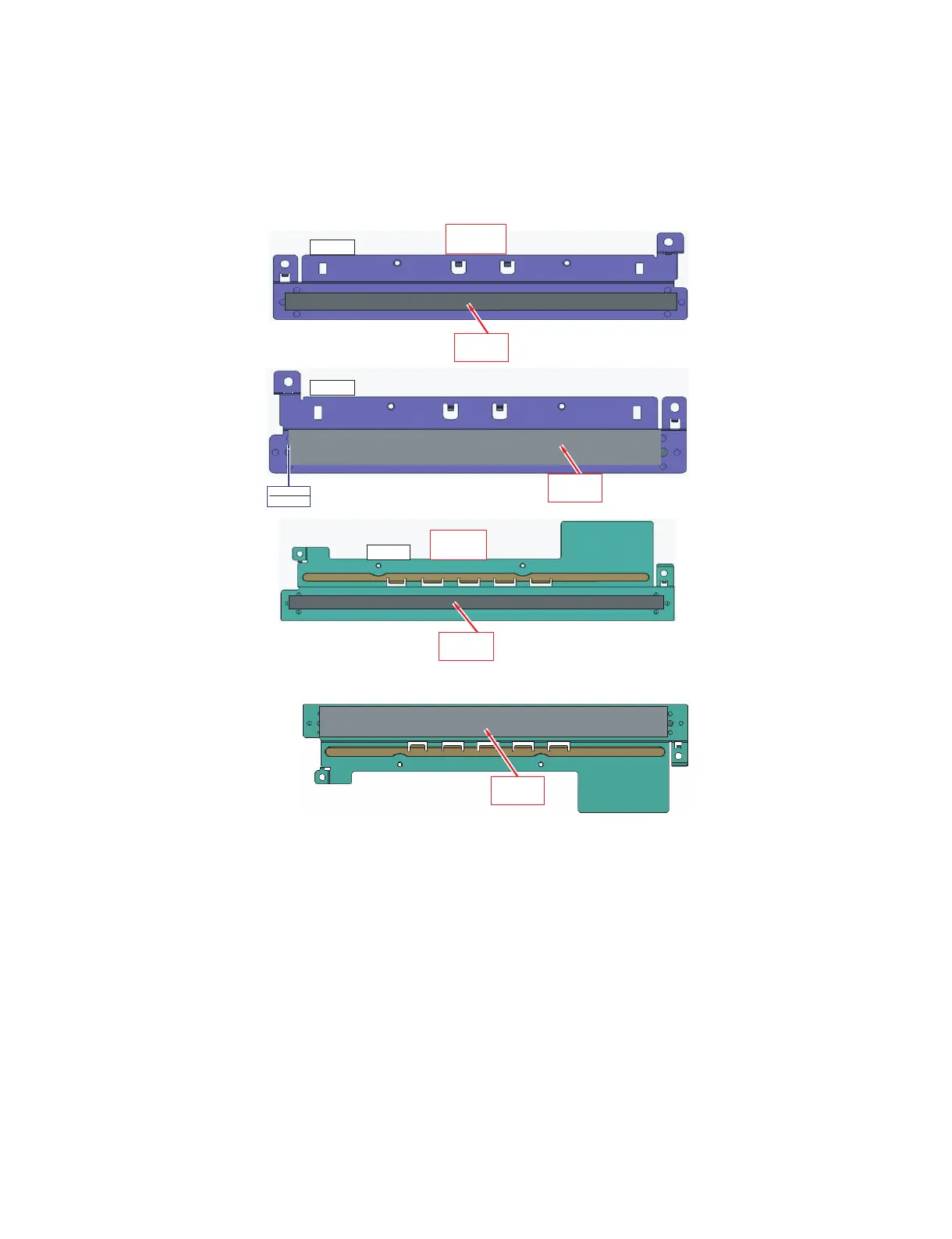

Attach the conductive nonwoven fabric gaskets on the shielded case on the main PWB.
LC-60TQ15U
Back side
Front side
(1) Prepare ***
LANGKD146WJFW
TER M A NG BOTTOM
(2) Stick ***
PSPAZC691WJZZ
CONDUCTR:8x 180
(3) Stick ***
HDECP A 091WJZ Z
DEC SHEET BTM
Stick standard
Center of Hole
Back side
(1) Prepare***
LANGKD145WJFW
TER M A NG SIDE
(2) Stick ***
PSPA Z C69 0WJZ Z
CONDUCTR:8x 255
(3) Stick *****
HDECPA090WJZZ
DEC SHEET SIDE
