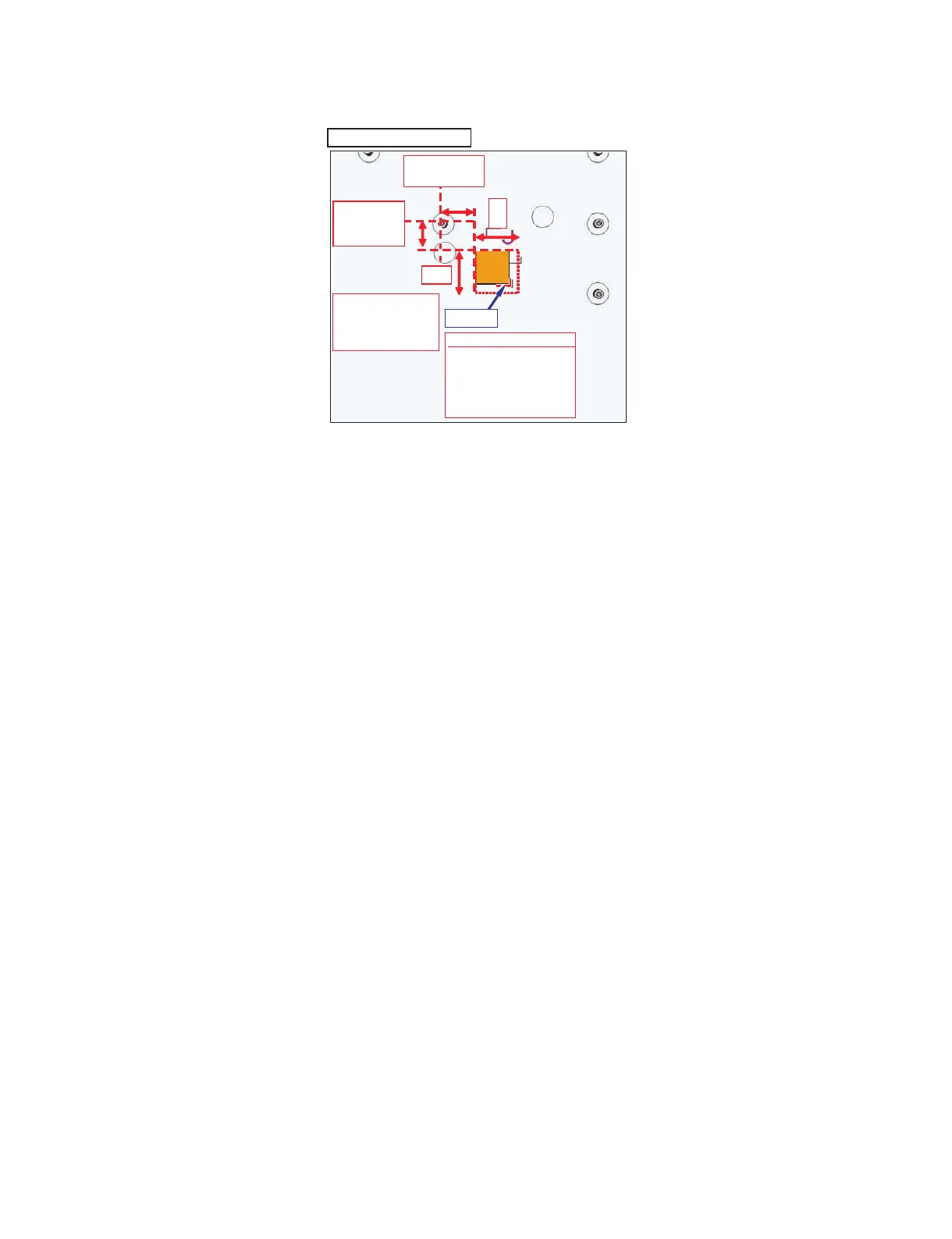

[11] The location putting on the heat measure sheet (LC-60/70UQ17U)
1. MAIN PWB Unit
Sti ck standard for CPU Cooler
is Punch Mark(right under)
or
27mm & 20mm
from center of screw hole.
I t is in 30m m space.
20mm
from center
of screw hole.
27mm from center
of screw hole.
30mm
30mm
BL chassis (Under the Main unit)
Punch mark
(1) Stick ***
PSPAZC805WJ KZ
COOLER:25x25x8t
