LC-60/70EQ10U,SQ10U/15U/17U,TQ15U,UQ17U
4 – 35

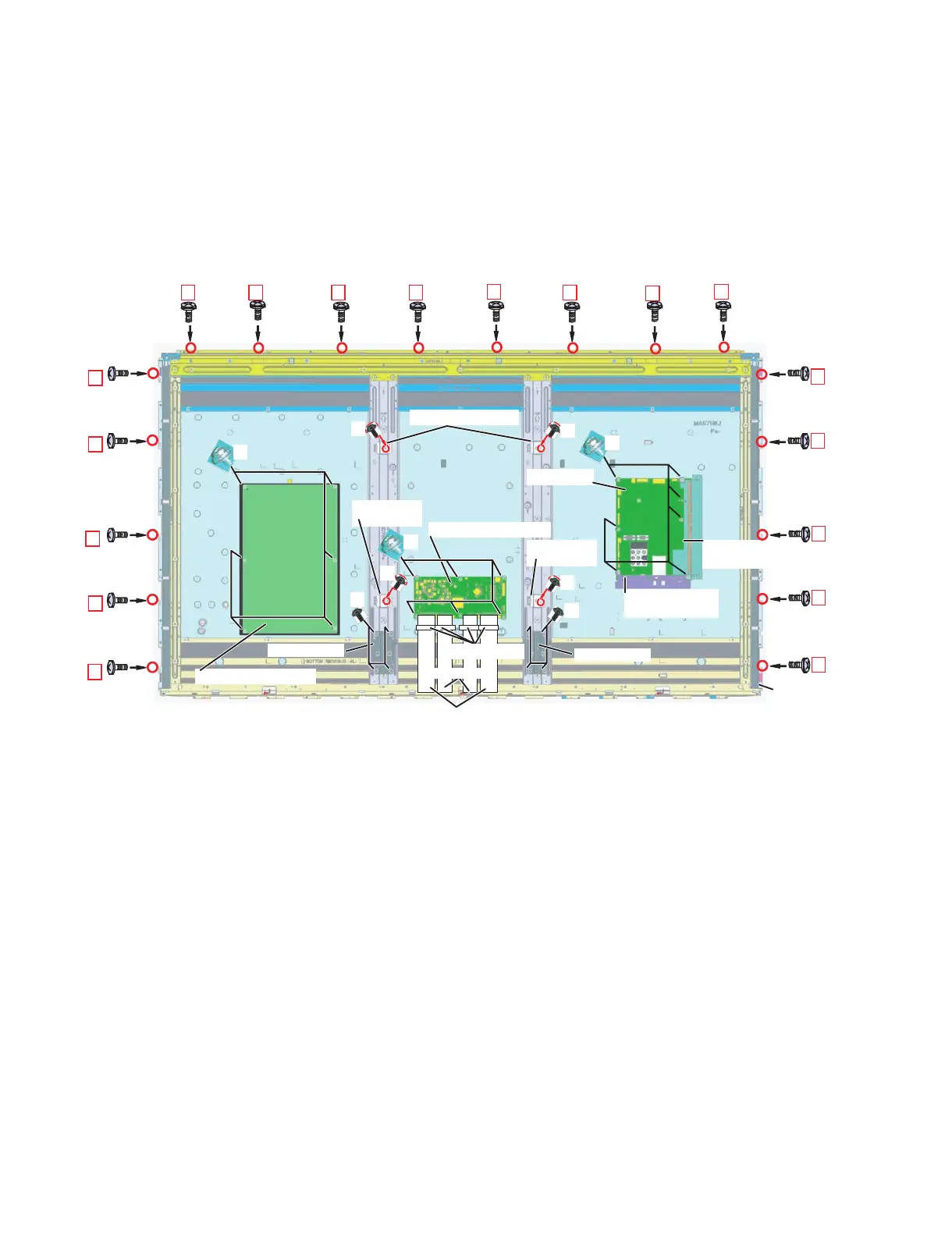

4. Removing of Aluminum Frame Ass'y, LCD CONTROL Unit, MAIN Unit, POWER/DRIVE Unit, VESA Angle
Ass'y and Stand fix Angle.
1. Remove the 18 lock screws (1) and detach the Aluminum Frame Ass'y (2)
2. Remove the 2 Connecting Cords(FFC 80p) (3), 2 Connecting Cords(FFC 64p) (4), 4 Ferrite Cores (5).
3. Remove the 6 lock screws (6) and detach the LCD CONTROL Unit (7).
4. Remove the 7 lock screws (8) and detach the Terminal Angle (Side) (9) and Terminal Angle (Bottom) (10).
5. Remove the MAIN Unit (11).
6. Remove the 6 lock screws (12) and detach the POWER/DRIVE Unit (13).
7. Remove the 4 lock screws (14) and detach the 4 VESA Angle Ass'y (15).
8. Remove the 8 lock screws (16) and detach the 2 Stand Fix Angles (17).
ԞLCD CONTROL Unit
ԜFerrite Core
ԚFFC80P
Ԧ8'5##PING#UU[
Ԧ8'5##PING
#UU[
Ԧ8'5##PING
#UU[
Ԩ5VCPF#PING
Ԩ5VCPF#PING
ԠTerminal Angle
(Side)
ԡTerminal Angle
(Bottom)
MAIN UnitԢ
ԤPOWER/DRIVE Unit
ԛFFC64P
ԙAluminum
˴Frame Ass'y
ԧ
ԝ
ԟ
ԣ
ԥ
ԥ
ԥ
ԥ
ԧ
To Next Page
