LC-60/70EQ10U,SQ10U/15U/17U,TQ15U,UQ17U
4 – 27
• LC-70TQ15U

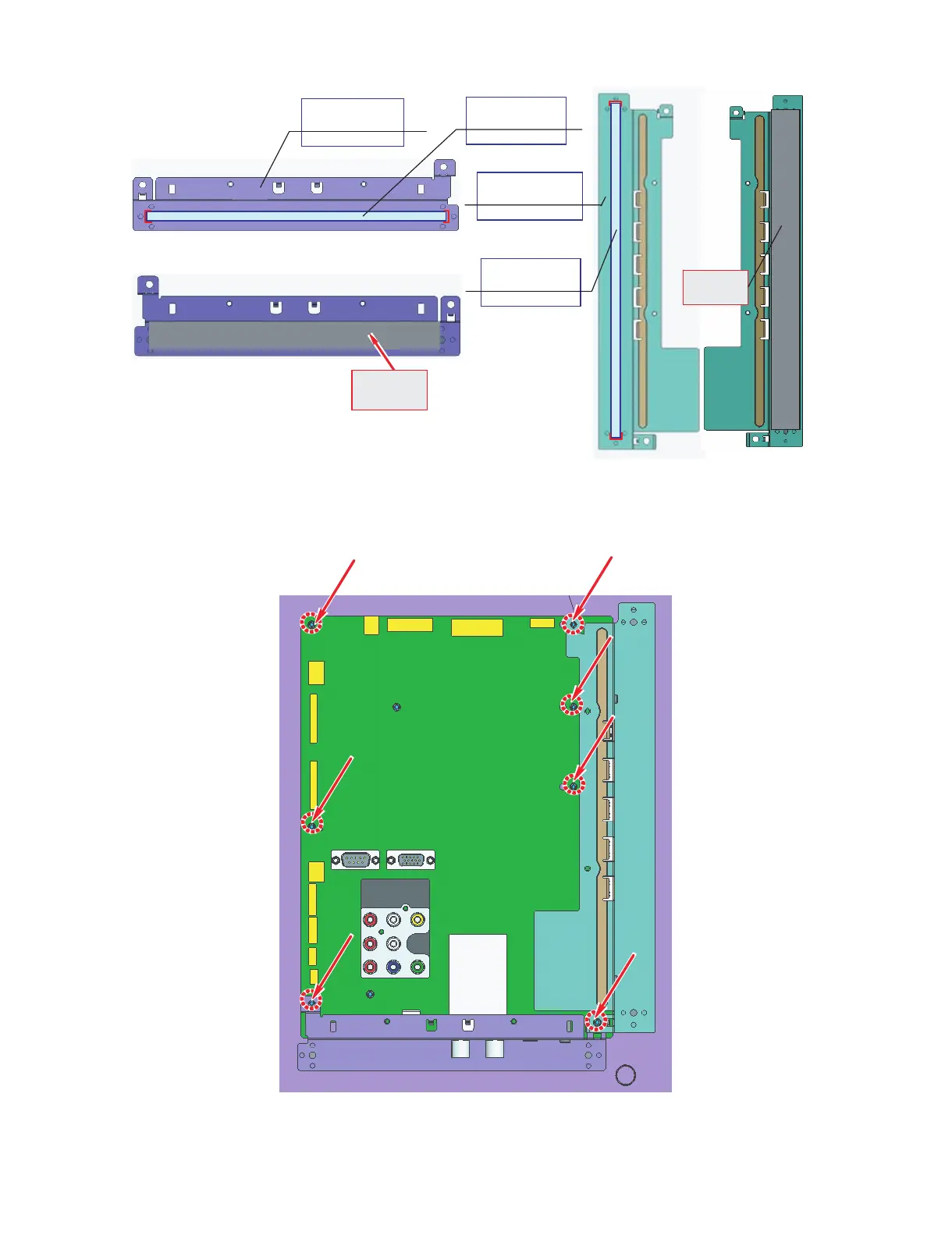

The following is a drawing mounting the main PWB Ass’y on the backlight chassis.
(The parts indicated by -> are the access holes for confirmation.)
(Main PWB Ass’y => State where the shielded case and RF terminal angle aremounted on the main PWB)
(4) Prepare***
LANGKD145WJFW
SIDETERMINALANG
(5) Stick***
PSPAZC690W JZZ
CONDUCTR:8x255
(1) Prepare***
LANGKD146WJFW
TERM ANG W IDTH
(2) Stick***
PSPAZC691WJZZ
CONDUCTR:8x180
(3) Stick ***
HDECP A 091WJZ Z
DEC SHEE T BTM
(3) Stick *****
HDECPA090WJZZ
T-LA BEL SIDE
