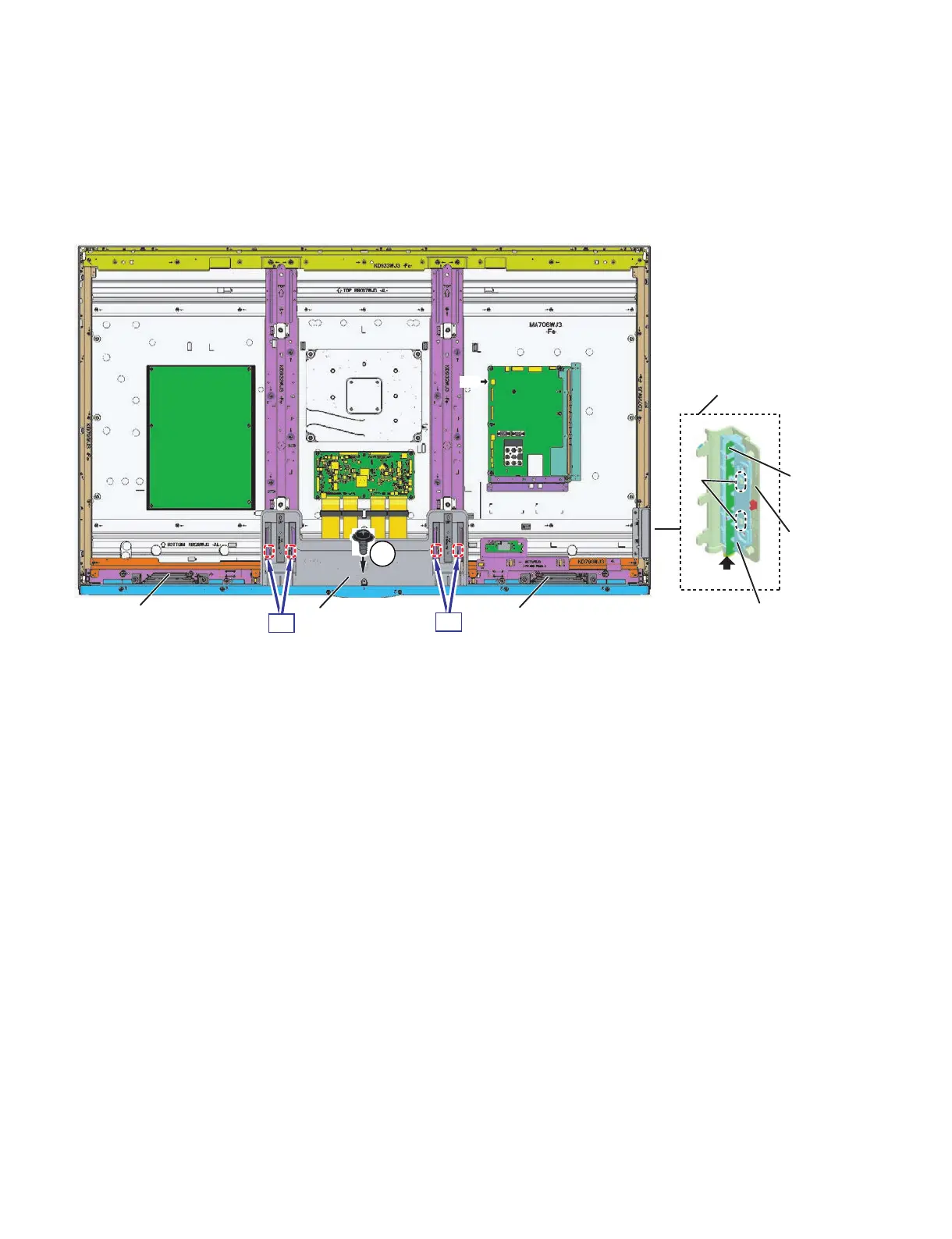

2. Removing of Speaker (L/R), KEY Unit and Bottom Cover Ass'y.
1. Remove the 1 lock screw (1) and the 4 Hooks and detach the Bottom Cover Ass'y (2).
2. Detach the Speaker Unit (L) (3), Speaker Unit (R) (4).
3. Disconnect the SP1 Wire.
4. Detach the KEY Unit Ass'y (5).
5. Remove the 2 Hooks and detach the KEY Button (6) from the KEY Cover (8).
6. Remove the KM Wire.
7. Remove the KEY Unit (7) from the KEY Button (6).
Lock
Lock
Ԝ-';7PKV#UU[
ԝ-';$WVVQP
ԟ-';%QXGT
㨇-/?
Ԟ-';7PKV
*QQM
ԛ
Speaker Unit (R)
ԙ
Bottom Cover Ass'y
Ԛ
Speaker Unit (L)
SP1
