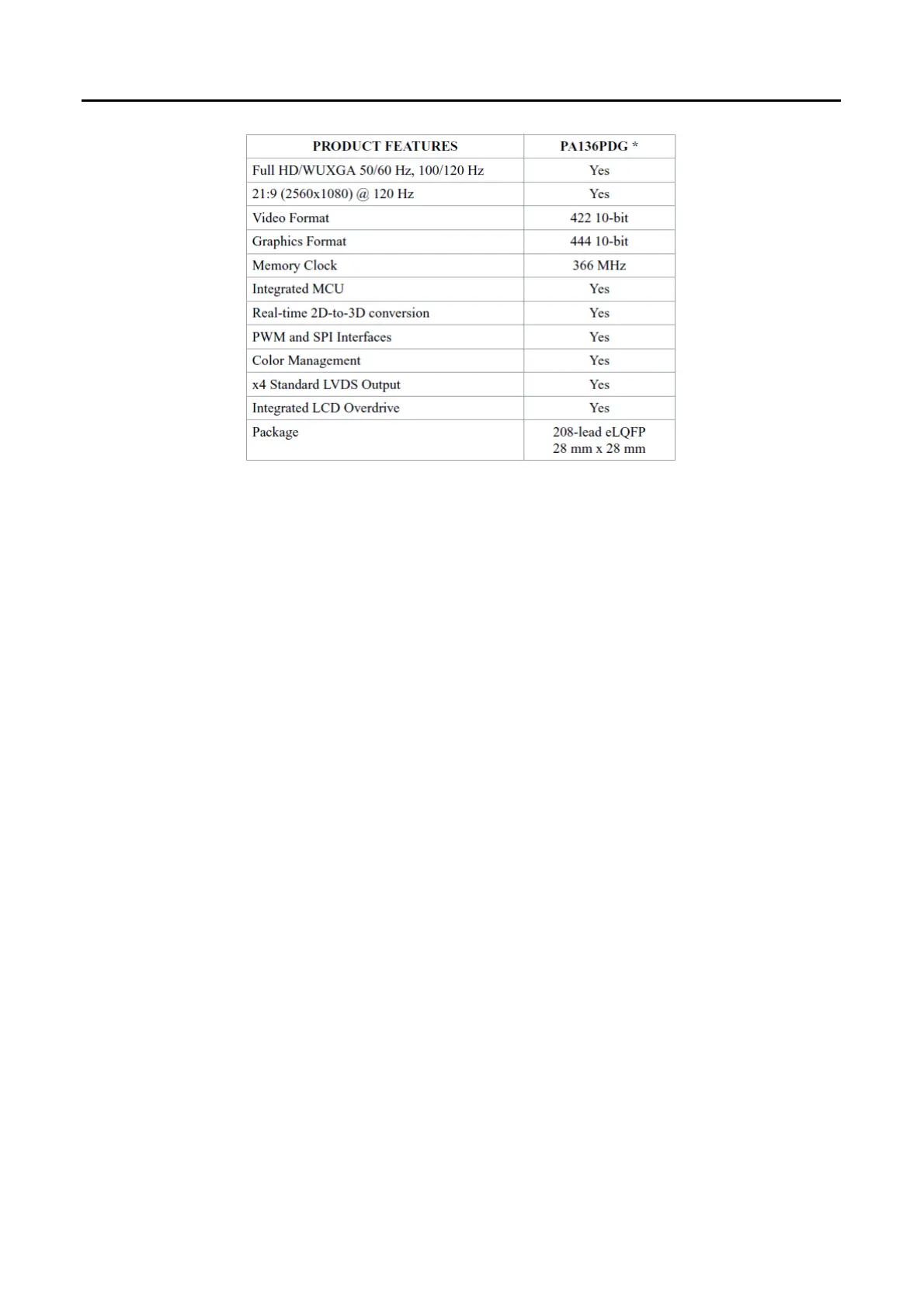

Features
The PA136PD offers the following features:
• Fourth Generation MotionEngine Technology
– Significantly improved Content Adaptive Motion Estimation and Motion Compensation
(MEMC) using Pixelworks’ proprietary technology
– Support for up to 120 Hz displays at 1080p and WUXGA resolutions
– Support for Cinematic format (CSHD - 21:9) for up to 120 Hz displays
– Integrated 2D Local Dimming LED backlight control for Edge-lit LED displays
–
Progressive hardware film mode detection with 3:2/2:2 inverse pull down and programmable random cadence detection
– Support for horizontal and vertical flip and 180 degree rotation
– 10-bit Full HD Video processing in 4:2:2 format
– 10-bit graphics in 4:4:4 format
– Integrated Overdrive
– Programmable OSD region protection (up to 5 OSD regions)
– Automatic OSD/logo detection and protection
– Support for demo modes
• Input Port
– 24/30-bit LVDS receiver, 2 channels, up to 647.5Mbps per channel
– Spread-spectrum supported
– Control Interfaces: Two-wire serial interface, GPIO, UART and SPI
• Integrated MCU
– Master mode: no external CPU is needed. PA136PD operates as the main controller chip
– Slave mode: PA136PD controlled by an external CPU
– Watch-dog
