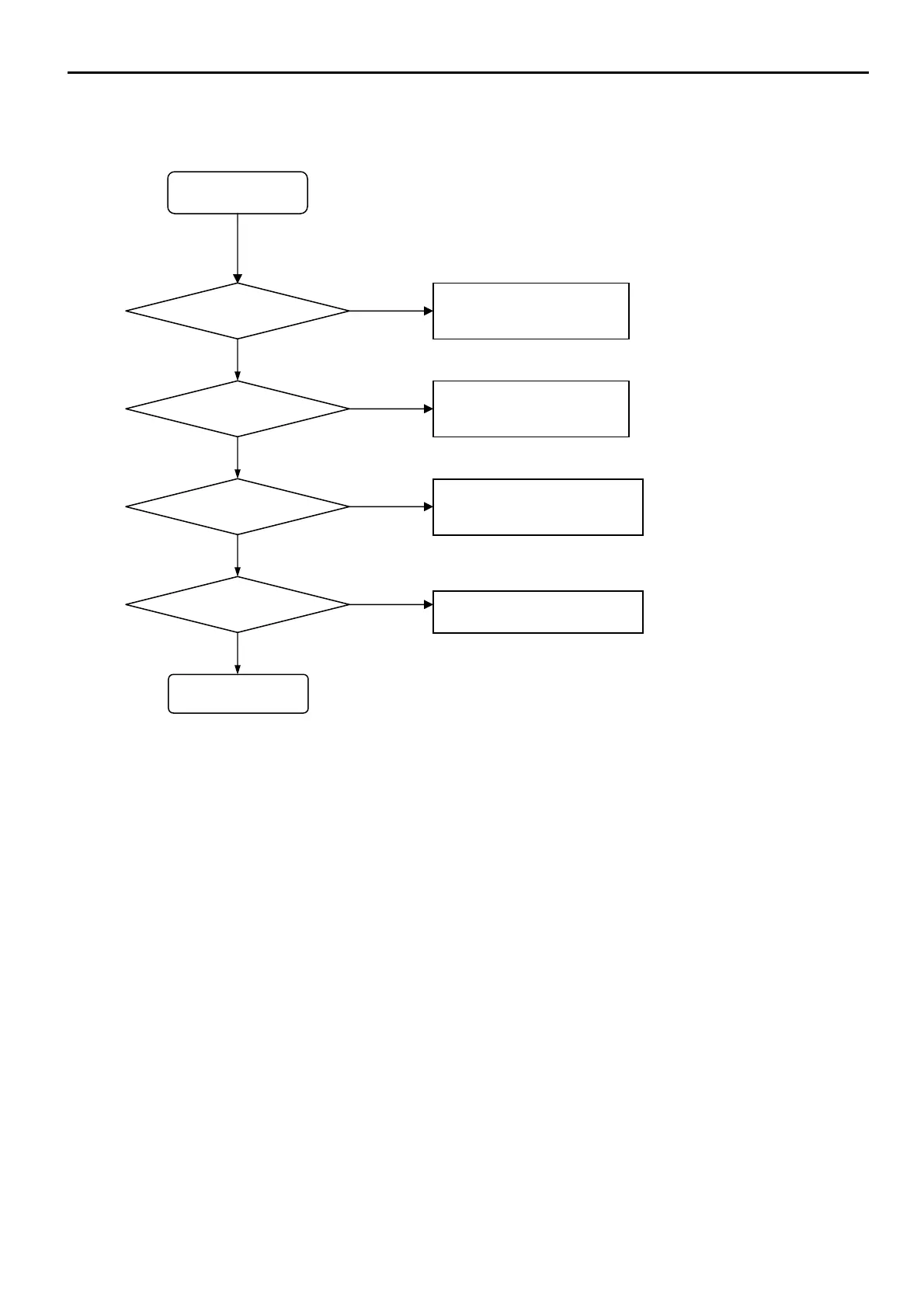

(AUDIO) IS NOT DISPLAY CORRECTLY
Start
Input signal good?
1. Check Audio source
2. Check the player of source
Input correct?
1. Check signal of Main Board
2. Check +12V of LA1
3. Check +3.3V of LA2
Check amplifier OK?
END
Check signal correct?
1. Check RTD2986ID audio out,
RTD2986ID Pin42~Pin45
1. Check amplifier (UA1)
.
