d. Manual Feed:
The manual feed lever is located on the right side of the headstock
(Fig. 3 (H), Page 3). This lever controls the vertical movement of the
spindle. For the operator’s convenience the lever can be adjusted as
needed.

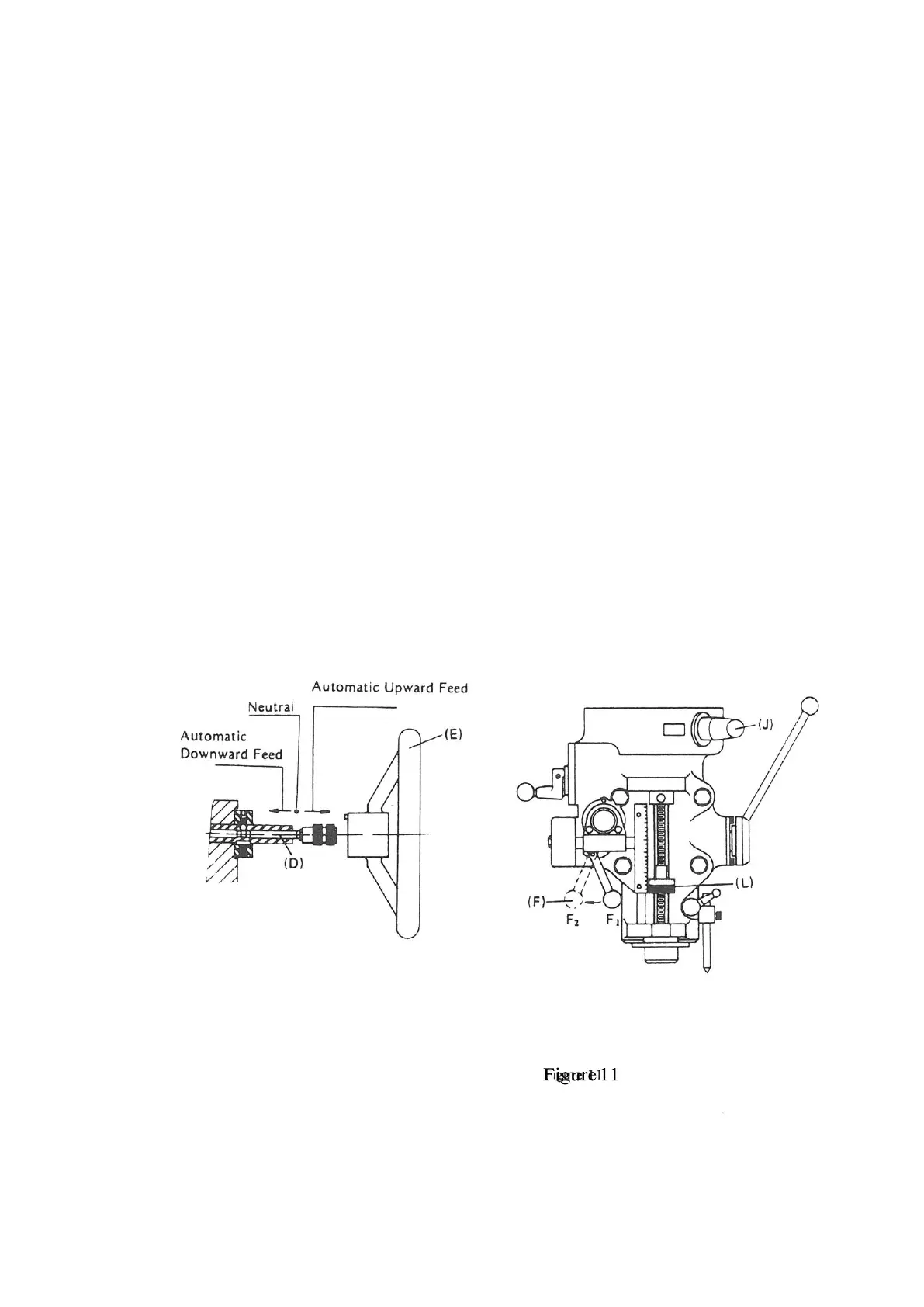

Note: in manual feed, the feed control handle “F” (Fig. 11) must be in
the “F1” position.
e. Manual Micro-feed:
To use the manual micro-feed, the power-feed transmission lever (J)
(Fig. 11) must be placed at the “OUT” position, and the feed reverse
knob (D) (Fig. 11) must be in the neutral position. To engage the
overload clutch, lever “F” (Fig. 11) must be moved to the “F2” (Fig.
11). You can now turn handwheel “E” clockwise to lower the spindle,
counter clockwise to raise it.
