Sharp LMV Series User Manual

35

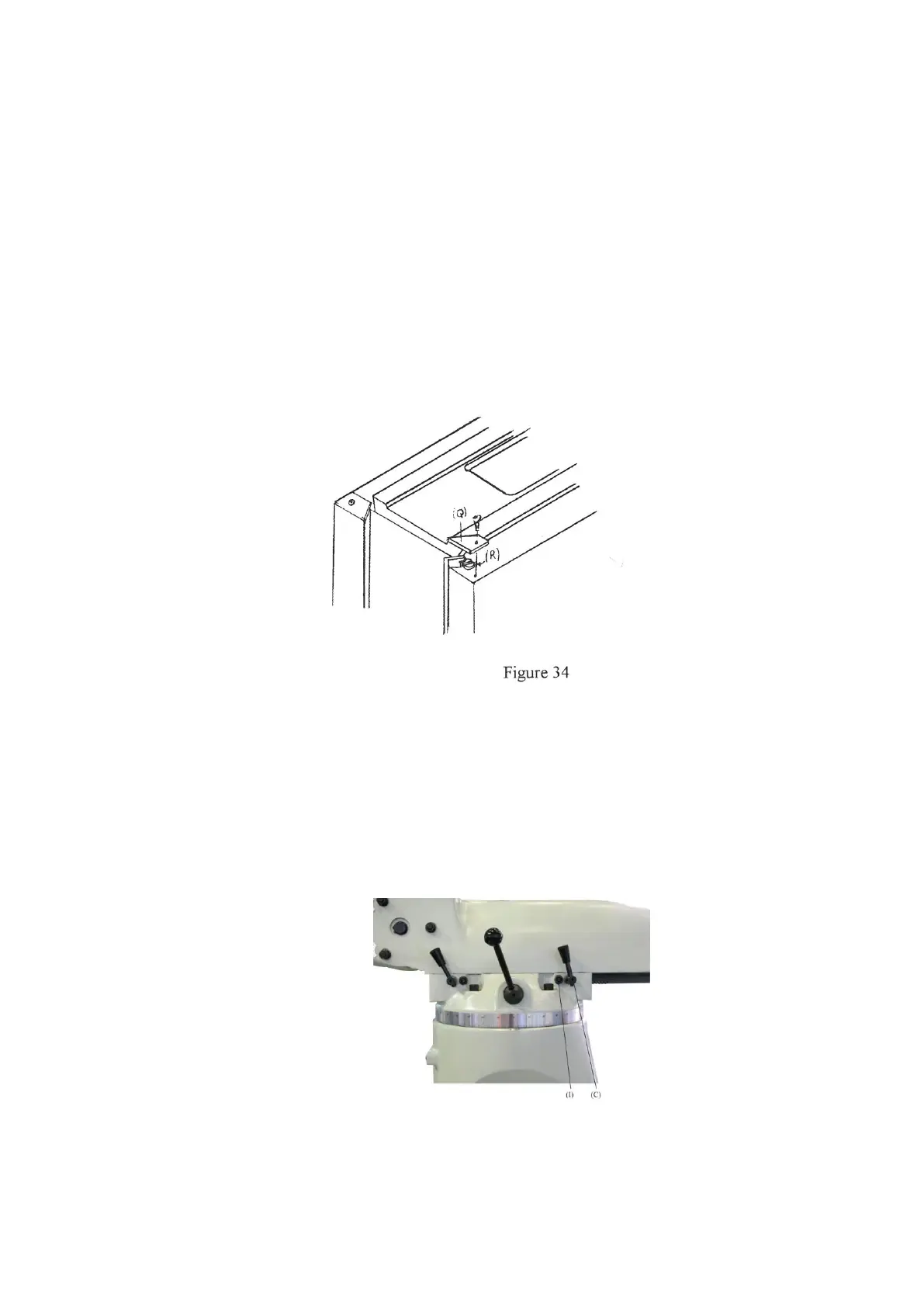

C. Knee Gib (Fig. 34)
The knee gib is located between the left side of knee and column
dovetail, and it can be adjusted as follows:
a. Loosen knee clamp (Fig. 5, Page 5).
b. Remove wiper holder “Q”.
c. Clean and lubricate sideways.
d. Raise knee to its uppermost position.
e. Adjusting gib screw “R” using the same method used on
table.
f. After adjusting, replace wiper holder “Q”.
D. Ram Gib (Fig. 35):
The ram gib is located between ram and turret dovetail.
a. Loosen ram lock lever “C”.
b. Clean and lubricate slideways.
c. Loosen lock nuts on gib adjusting screw “I”, adjust gib and
retighten lock nuts.
Figure 35
