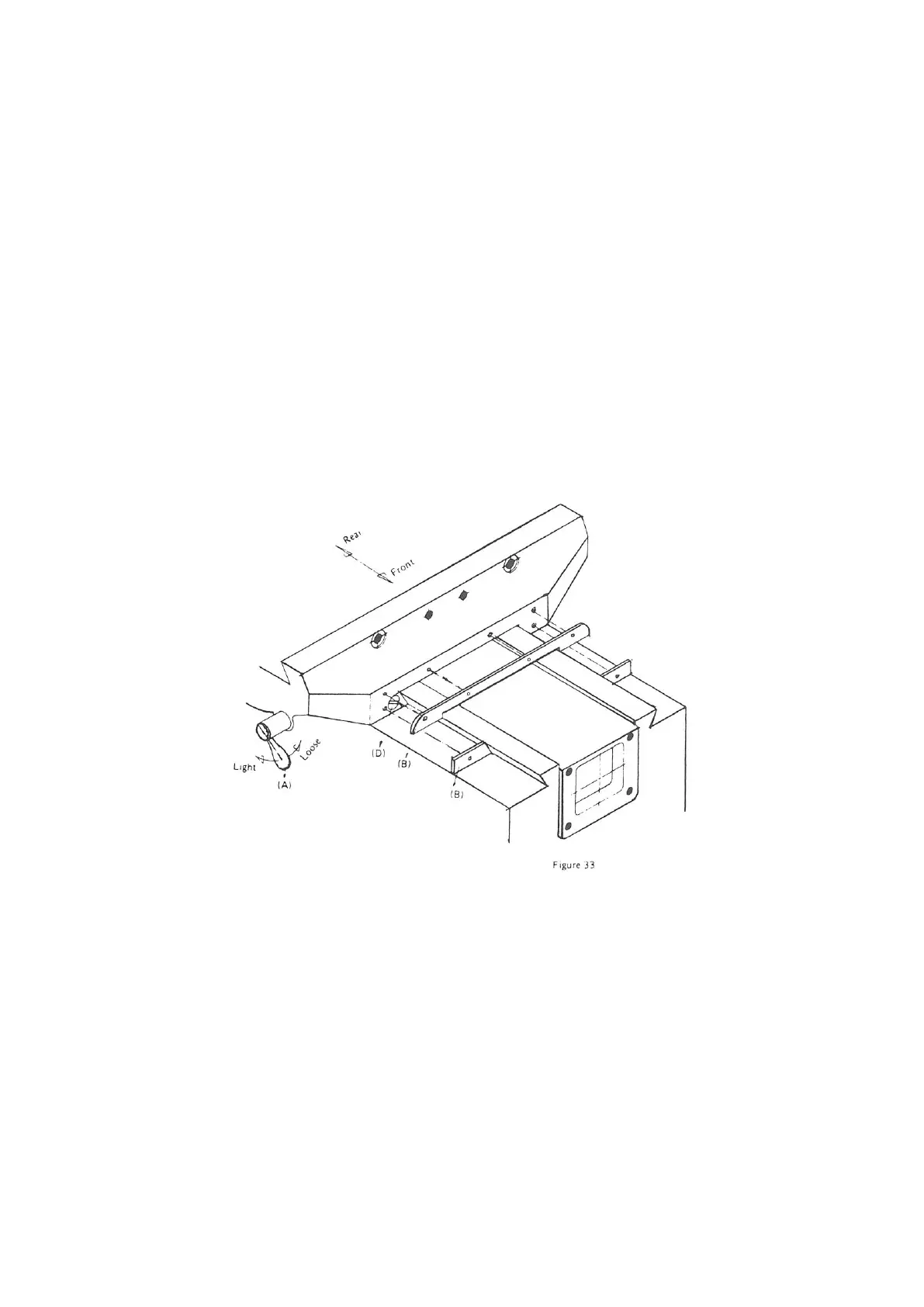

B. Saddle Gib (Fig. 33)
The saddle gib is located between the left side of the saddle and
knee dovetail, and it can be adjusted as follows:
a. Loosen saddle lock “A”.
b. Move saddle to the front of knee.
c. Remove wiper holder “B” on saddle.
d. Clean and lubricate sideways.
e. Adjusting gib using the same method used on table.
f. After adjusting, replace wiper holder “B”.
