MD-C2

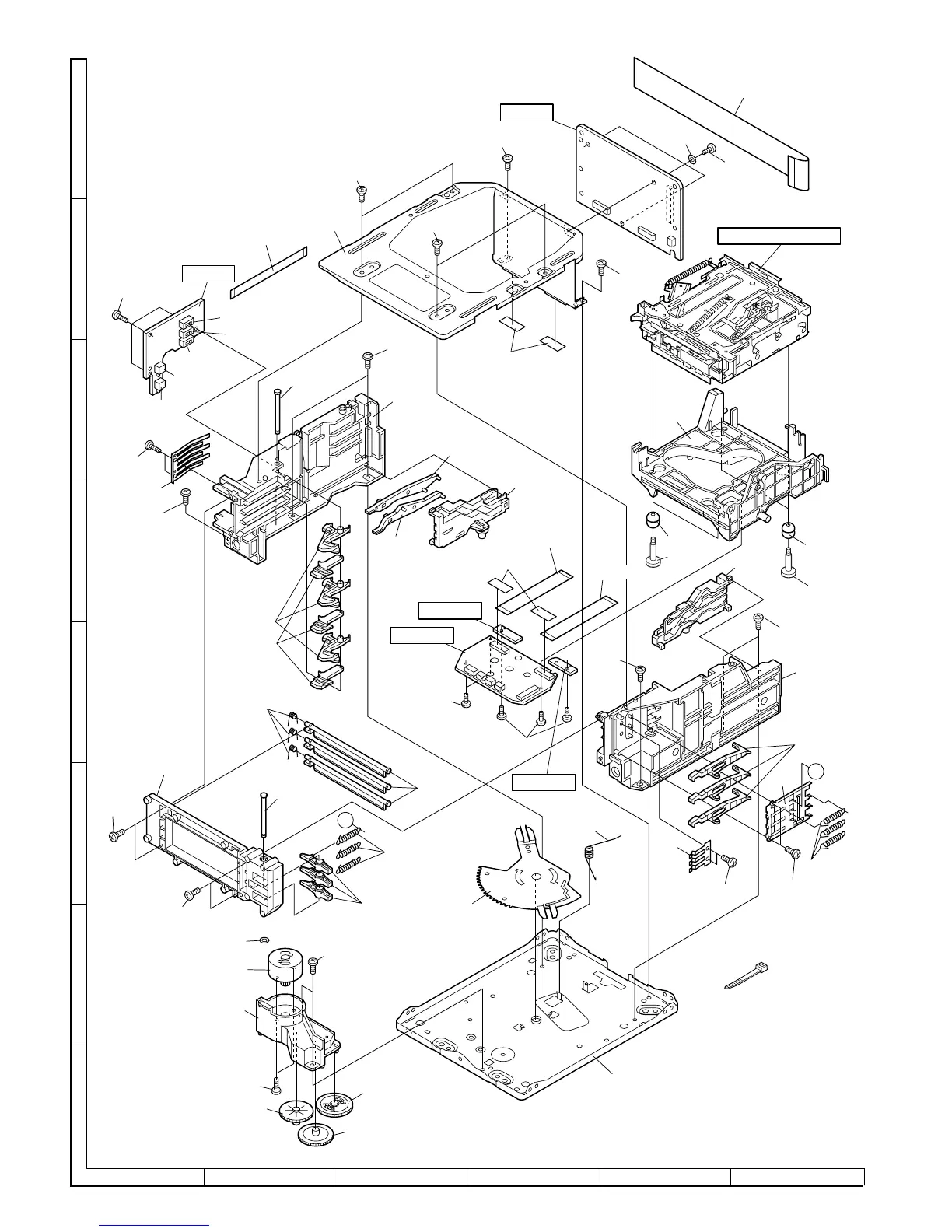

Figure 13 MD CHANGER MECHANISM EXPLODED VIEW
A
B
C
D
E
F
G
H
1
23456
– 13 –
A
A
114x3
119x3
113x3
505x2
101
126
PWB-J1
PWB-L
MD MECHANISM
PWB-i
PWB-J2
PWB-J3
112x3
505x2
505x2
504
M1941
508x2
502x2
102
118
130
505x3
123
125
109
503x2
103
124
121
108
505x2
126
505x3
SW1942
SW1941
SW1940
SW1943
SW1944
122x3
110x3
106
122x3
111x3
507x2
501x2
127x2
508x3
CW1501
509x3
CW1921
CW1911
CW1940
506
506
505x2
104
107
505x2
128x2
507x2
501x2
127x2
507
115
105
507
120
505x2
115
117
116
129x2
