Sharp MX-C250F User Manual

MX-C250 EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 5

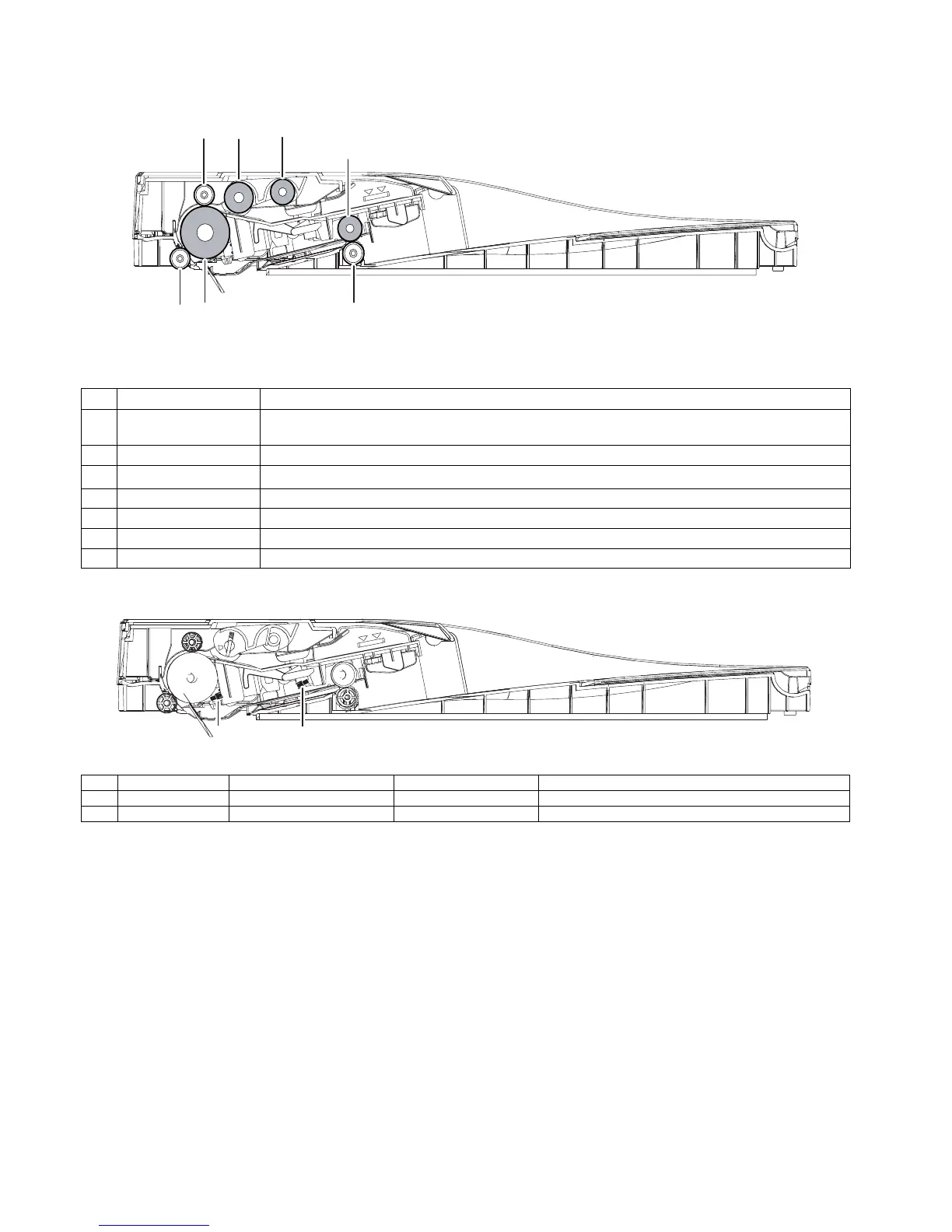

E.SPF
(1)Roller
(2)Detector
No. Name Function/ Operation
1 Paper exit pressure roller Applies pressure to a document and the paper exit drive roller to transport paper into the exit tray.
2 Paper exit roller Exit transport drive roller.
3 Transport pressure roller
Apply a pressure to paper and the transport roller to provide the transport power of the transport roller to
paper.
4 Transport pressure roller Applies pressure to document and drive roller to transport paper.
5 Transport drive roller Transports documents.
6 Pickup roller Picks up an original document and transports the lead edge to the Document Feed Roller.
7 Document Feed Roller Picks up a document and feeds it to the document feed roller.
No. Signal name Name Type Function/Operation
1 SPED Document sensor Light transmission Detects document empty
2 SPPD1 Paper transport detector 1 Light transmission Detects paper pass
1
2
3
4
5
6
7
1
2
