MX-C250 EXTERNAL VIEW AND INTERNAL STRUCTURE 4
– 14

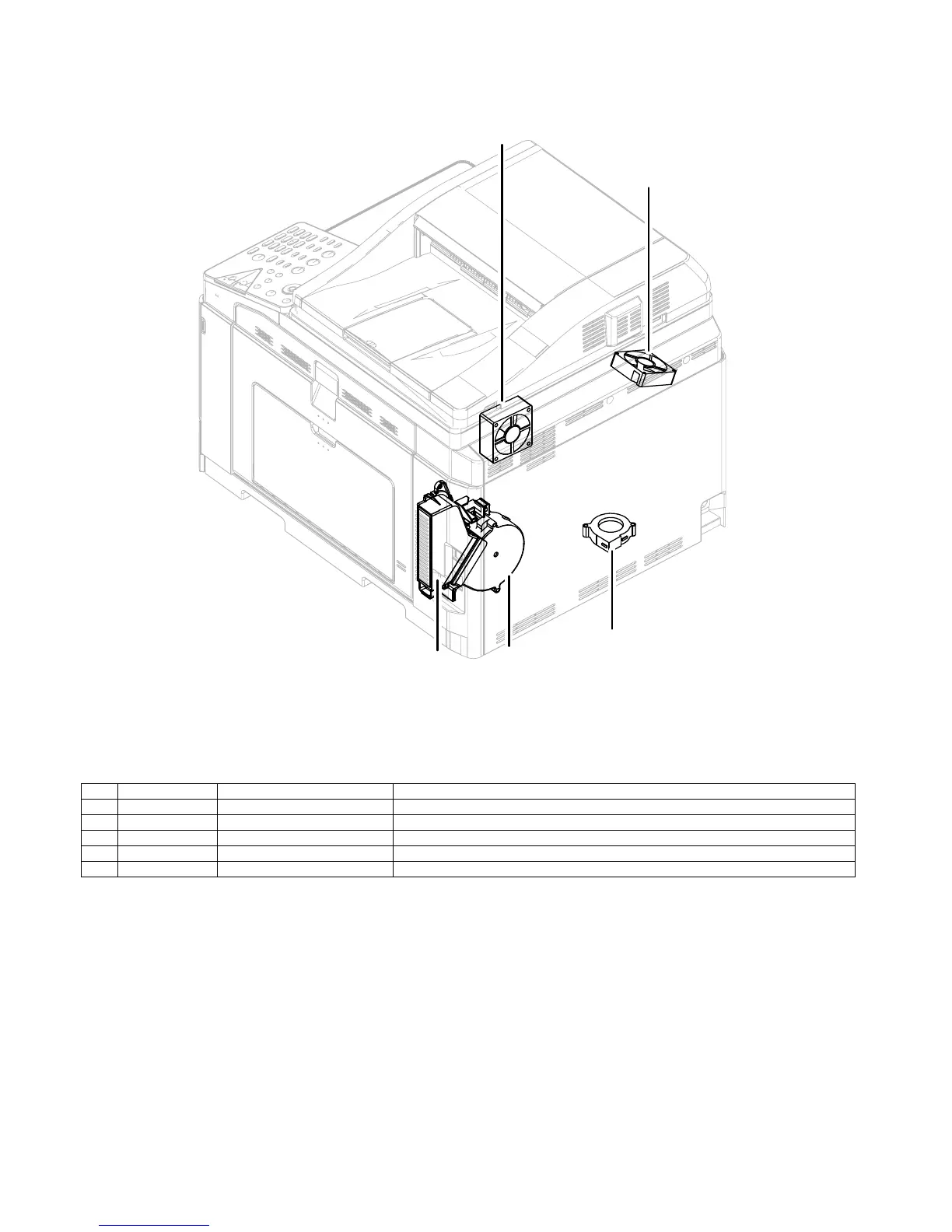

M.Fans and filters
No.
Signal name
Name
Function
/Operation
1
FUFM
Fusing cooling fan
Cools the fusing section.
2
LSUFM
LSU cooling fan
Cools the
LSU.
3
OZFM1
Ozone fan 1
Filters the ozone generat
ed from the image process se
ction.
4
PSFM
Power cooling fan motor
Cools the powe
r supply.
5
---
Ozone Filter
A
bsorbs ozone being discharged from the image process unit.
1
2
3
4
5
31
33
