MX-C250 EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 13

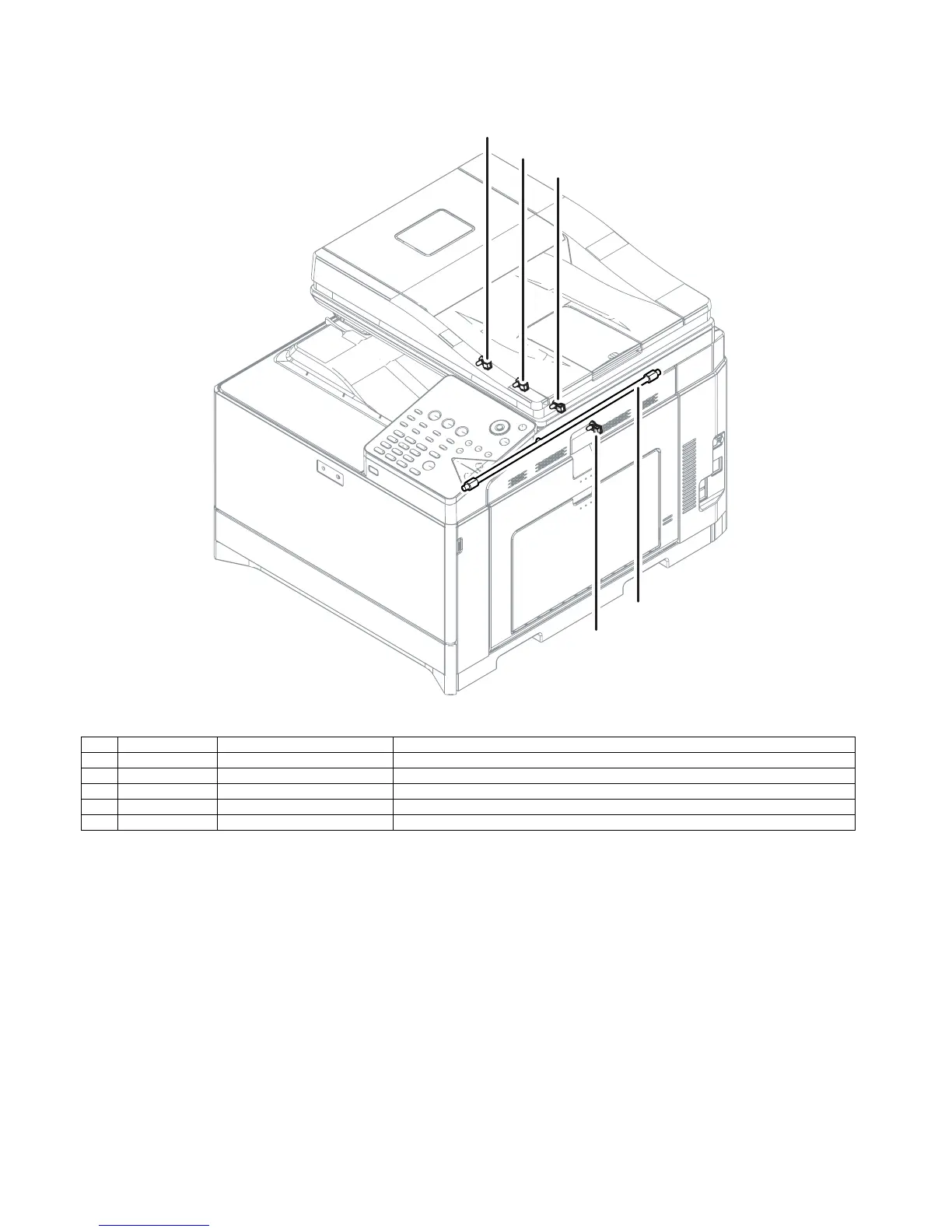

L.Lamps
No. Signal name Name Function/Operation
1 HL_UM Heater lamp (HL_UM) Heats the fusing roller (F).
2 DL_K Discharge lamp(K) Discharges electric charges on the OPC drum.(K)
3 DL_C Discharge lamp(C) Discharges electric charges on the OPC drum.(C)
4 DL_M Discharge lamp(M) Discharges electric charges on the OPC drum.(M)
5 DL_Y Discharge lamp(Y) Discharges electric charges on the OPC drum.(Y)
1
2
3
4
5
