MX-C250 EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 10

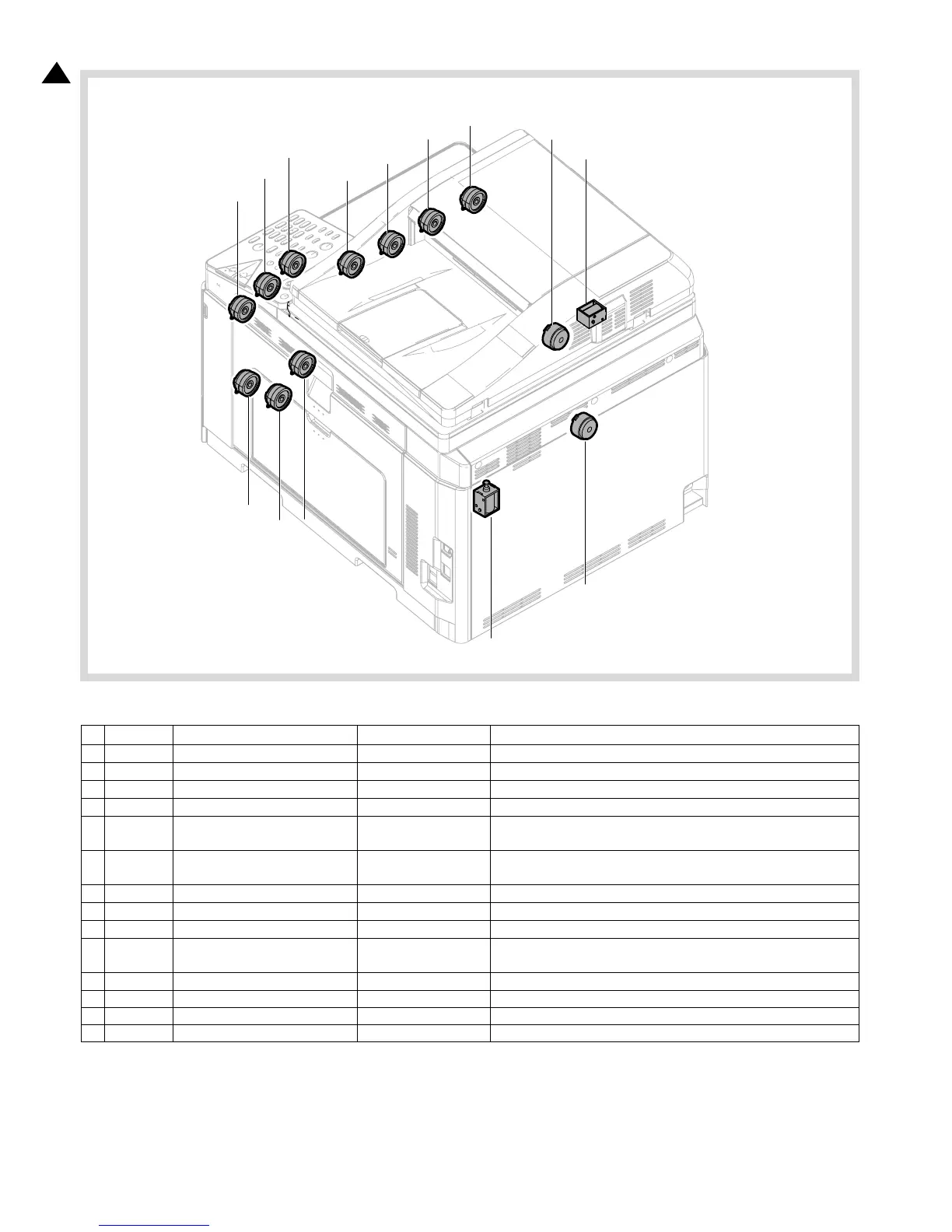

I.Clutches and solenoids
No. Signal name Name Function/Operation Note
1 TNC_Y Toner supply clutch (Y) Electromagnetic clutch Controls the supply of the Y toner cartridge.
2 TNC_M Toner supply clutch (M) Electromagnetic clutch Controls the supply of the M toner cartridge.
3 TNC_C Toner supply clutch (C) Electromagnetic clutch Controls the supply of the C toner cartridge.
4 TNC_K Toner supply clutch (BK) Electromagnetic clutch Controls the supply of the BK toner cartridge.
5 PORC Paper exit clutch Electromagnetic clutch
Controls the operation of the paper exit roller when the the paper exit roller ro-
tates clockwise.
6 POC Paper exit clutch Electromagnetic clutch
Controls the operation of the paper exit roller when the the paper exit roller ro-
tates counter clockwise.
7 ADUC ADU transport clutch Electromagnetic clutch Controls ON/OFF of the roller in the ADU section.
8 CPUC1 Paper feed clutch (Paper feed tray 1) Electromagnetic clutch Controls ON/OFF of the roller in the paper feed tray 1 section.
9 RRC PS clutch Electromagnetic clutch Controls the operation of the PS roller.
10 MFPC Manual paper feed clutch Electromagnetic clutch Controls the operation of the roller of the Manual paper feed clutch.
11 ITURC Primary transfer separation clutch 1 Electromagnetic clutch Controls the primary transfer separation mode.
12 PCSS Process control shutter solenoid Solenoid Controls Open/Close of the Process control shutter solenoid.
13 SRVC Paper exit clutch Electromagnetic clutch Controls Up/Down of the paper exit roller of RSPF.
14 SPUS Paper feed roller solenoid Solenoid Controls Up/Down of the paper feed roller of RSPF.
