MX-C250 ADJUSTMENTS 5 – 29
b. Monochrome copy check items (Check to confirm the fol-
lowing:)

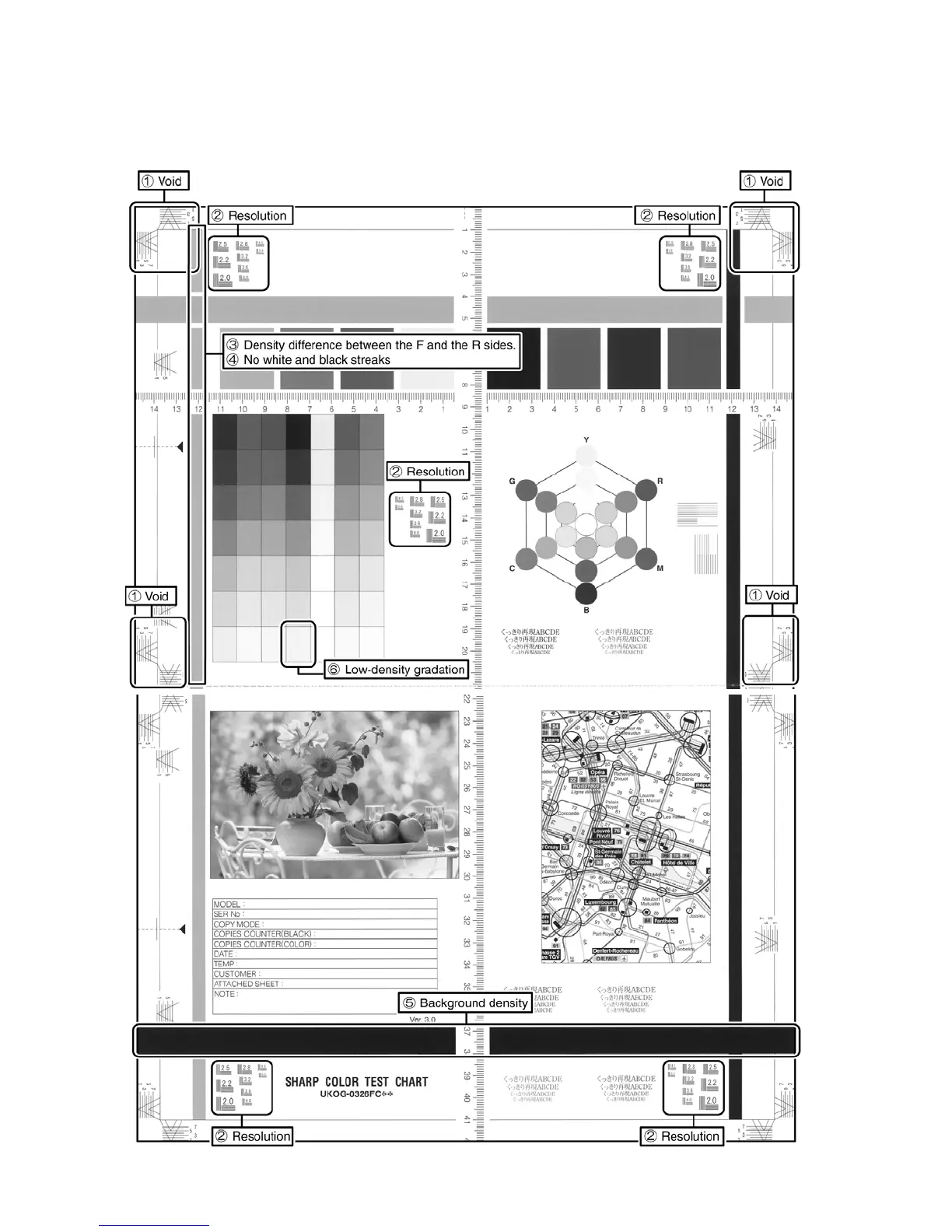

When using the servicing color test chart, fold or separate the
chart.
1) There are 8 void areas.
2) The resolution of 4.0 can be seen.
3) The density difference between the F and the R sides is not so
great.
4) There are no white and black streaks.
5) The background density is not so light.
6) The black low-density gradation is copied slightly.
To Next Page
