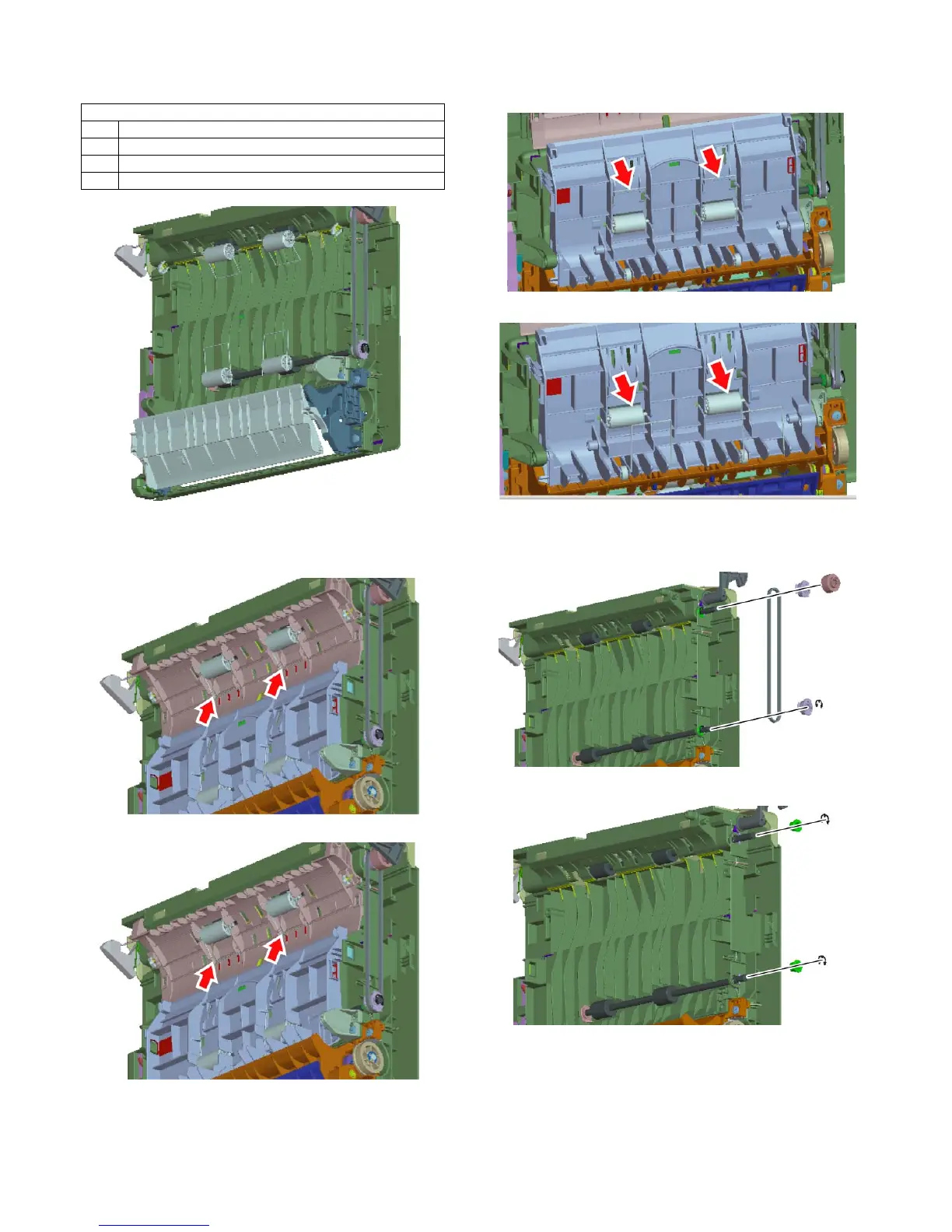

MX-C250 DISASSEMBLY AND ASSEMBLY 10 – 28
H.Paper transport/Paper exit/Duplex unit
(1) Right door unit
a.Transport auxiliary roller 1
1) Open the right door.
2) Remove the right door auxiliary roller pressure SP.
3) Remove the transport auxiliary roller 1 from the shaft.
b.
Transport auxiliary roller 1
1) Remove the right door.
2) Remove the paper out roller pressure SP.
3) Remove the transport auxiliary roller 2 from the shaft.
c. Right door paper in roller, Right door paper out roller
1) Open the right door.
2) Remove the E rings and the 25P pulleys, and remove the belt.
3) Remove the E rings and the belt idle bearings.
Parts
1 Transport auxiliary roller 1
2 Transport auxiliary roller 2
3 Right door paper in roller
4 Right door paper out roller
