MX-M182 MAINTENANCE 9-2
2. Maintenance display system
*1:Installation of a new toner cartridge allows to display the remaining quantity.
3. Note for replacement of consumable parts

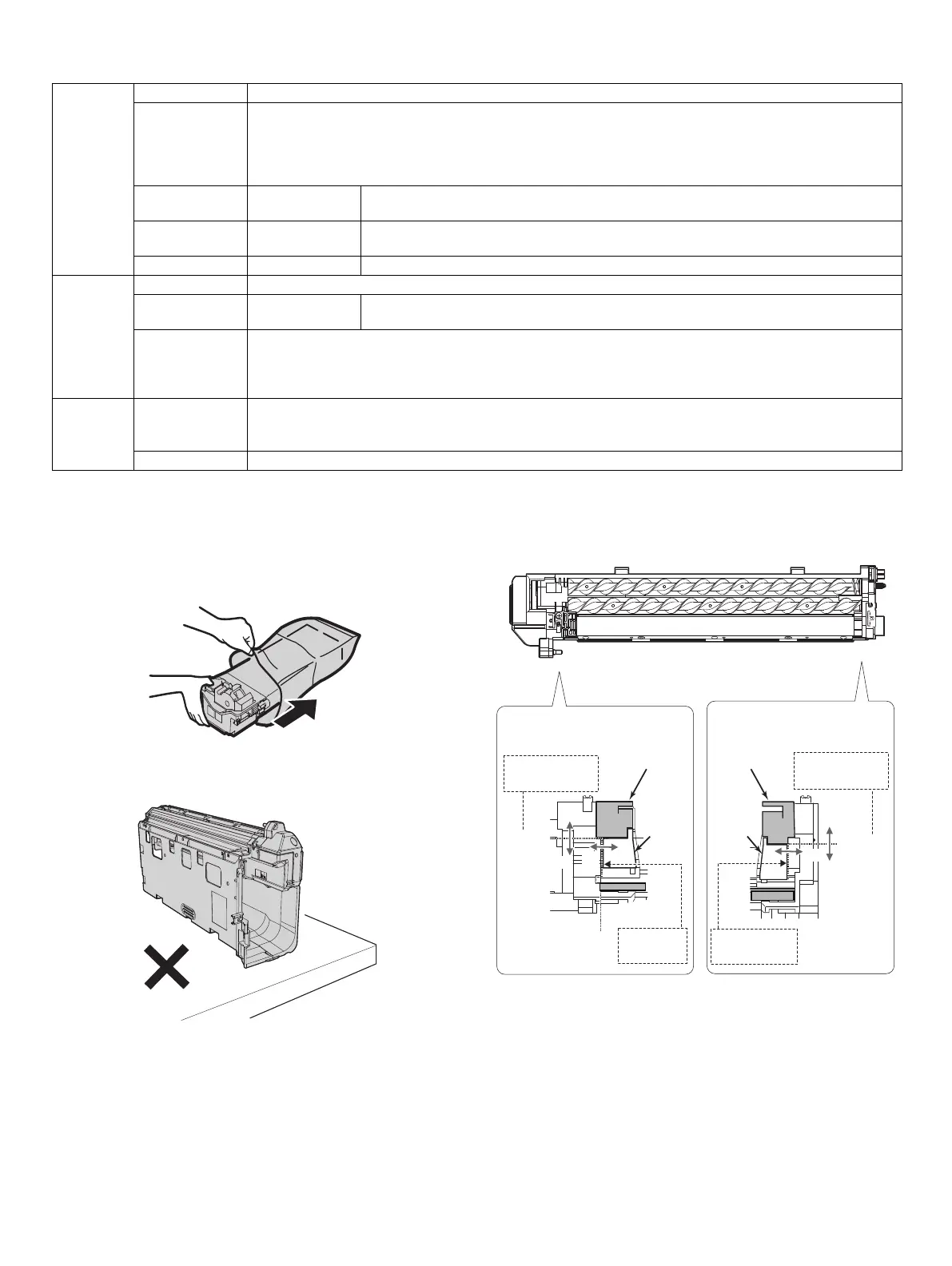

A. Toner cartridge
When a waste toner cartridge is removed from the machine, it must be
put in a polyethylene bag to avoid scattering of toner.
B. DV cartridge
Do not shake or put up the developer cartridge. Otherwise developer
may scatter.
C. DV seal attachment procedure
Toner Life, 16K
Remaining
quantity check *1
a. Press and hold the density adjustment LIGHT key for more than 5 sec, and the machine will enter the user
program mode.
b. Press and hold the "%" key for more than 5 sec, and the remaining quantity will be displayed on the copy quantity
display in one of the following levels: (Remaining quantity display levels: 100%, 75%, 50%, 25%, 10%, LO)
c. Press the density adjustment LIGHT key to cancel.
Remaining
quantity
NEAR EMPTY
About 10%
EMPTY
Message and icon
on the LCD
ON Flash
Machine Operation allowed Stop
Developer Life 50K
Message and icon
on the LCD
ON at 50K of the
developer count
Machine Selection is available between Not Stop and Stop by Service Simulation (SIM 26-37) Setup.
(If Stop is selected, the LED will flash and stop at 50K.)
* Default: Not Stop
* Clear: SIM 42-1
Maintenance Message and icon
on the LCD
Selection is available among 50K, 25K, 10K, 7.5K, 5K, and free (no lighting) with SIM 21-1.
* Default: 50K
* Clear: SIM 20-1
Machine Not stop
Clearance with the
molt edge.
Must not be covered.
Attach with the
projection (rib)
reference
Attach with the
line (mark-off line)
reference.
0
0
0.5
0.3
0
0
0.3
0.5
(When viewed from the front)
(When viewed from the front)
Side molt F
Clearance with the
molt edge.
Must not be covered.
Molt edge
reference
DV Side
sheet F
Side molt R
Molt edge
reference
DV Side
sheet R
