Sharp MX-M202D Service Manual

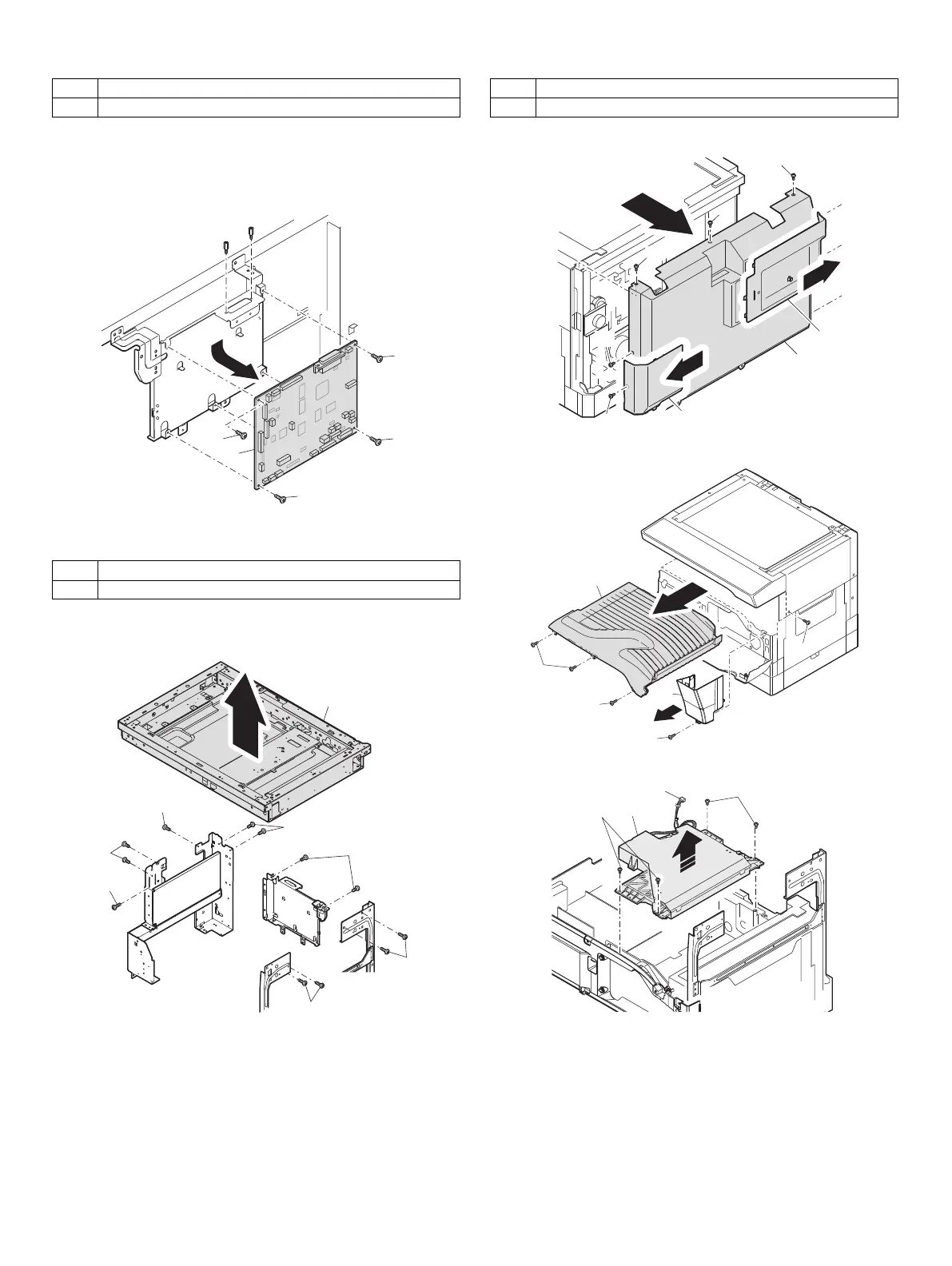

MX-M182 DISASSEMBLY AND ASSEMBLY 10-10
5. MCU
A. MCU disassembly
Disassembly: The connector, the harness, and the screw are removed.
Note:When replacing the MCU PWB, be sure to replace the EEPROM of
the MCU PWB to be replaced.
6. Optical frame unit
A. Optical frame unit
Installation: Install the optical unit in the sequence shown above.
7. LSU
A. LSU unit
Note:Do not disassemble the LSU.
Note:When replacing the LSU, be careful not to touch the dust-shield
glass.
Note:Turn OFF the machine power, anddisconnect the power plug from
the power outlet.
Adjustment:
•Image lead edge position adjustment
•Image left edge position adjustment
•Paper off-center adjustment
No. Content
A MCU disassembly
No. Content
A Optical frame unit
(3)
(2)
(2)
(2)
(2)
(2)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
No. Content
A LSU unit
(2)
(1)
(1)
(1)
(1)
(1)
(3)
(4)
(1)
(3)
(3)
(1)
(4)
(2)
(2)
(3)
(1)
(2)

Sharp MX-M202D Specifications

General

Print technology	Laser
Maximum resolution	600 x 600 DPI
Economical printing	Yes
Print speed (black, normal quality, A4/US Letter)	20 ppm
Copier resize	25 - 400 %
Maximum number of copies	999 copies
Time to first copy (black, normal)	7.2 s
Scanner type	-
Maximum scan area	Legal (216 x 356) mm
Maximum scan resolution	- DPI
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Maximum duty cycle	- pages per month
Page description languages	PCL 6, PostScript 3
Total input capacity	- sheets
Maximum input capacity	1100 sheets
Maximum print size	216 x 356 mm
Paper tray media types	Plain paper, Transparencies
Paper tray media weight	56 - 90 g/m²
ISO A-series sizes (A0...A9)	A3, A4, A6
Maximum ISO A-series paper size	A4
Display	LED
Product color	White
Market positioning	Business
Standard interfaces	USB 2.0
Optional connectivity	Ethernet
Wi-Fi	No
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (average operating)	1200 W
Windows operating systems supported	Windows 2000, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64
Bundled software	Scanner utility software

Weight and Dimensions

Depth	573 mm
Width	591 mm
Height	595 mm
