MX-M182 EXTERNAL VIEWS AND INTERNAL STRUCTURES 5-2

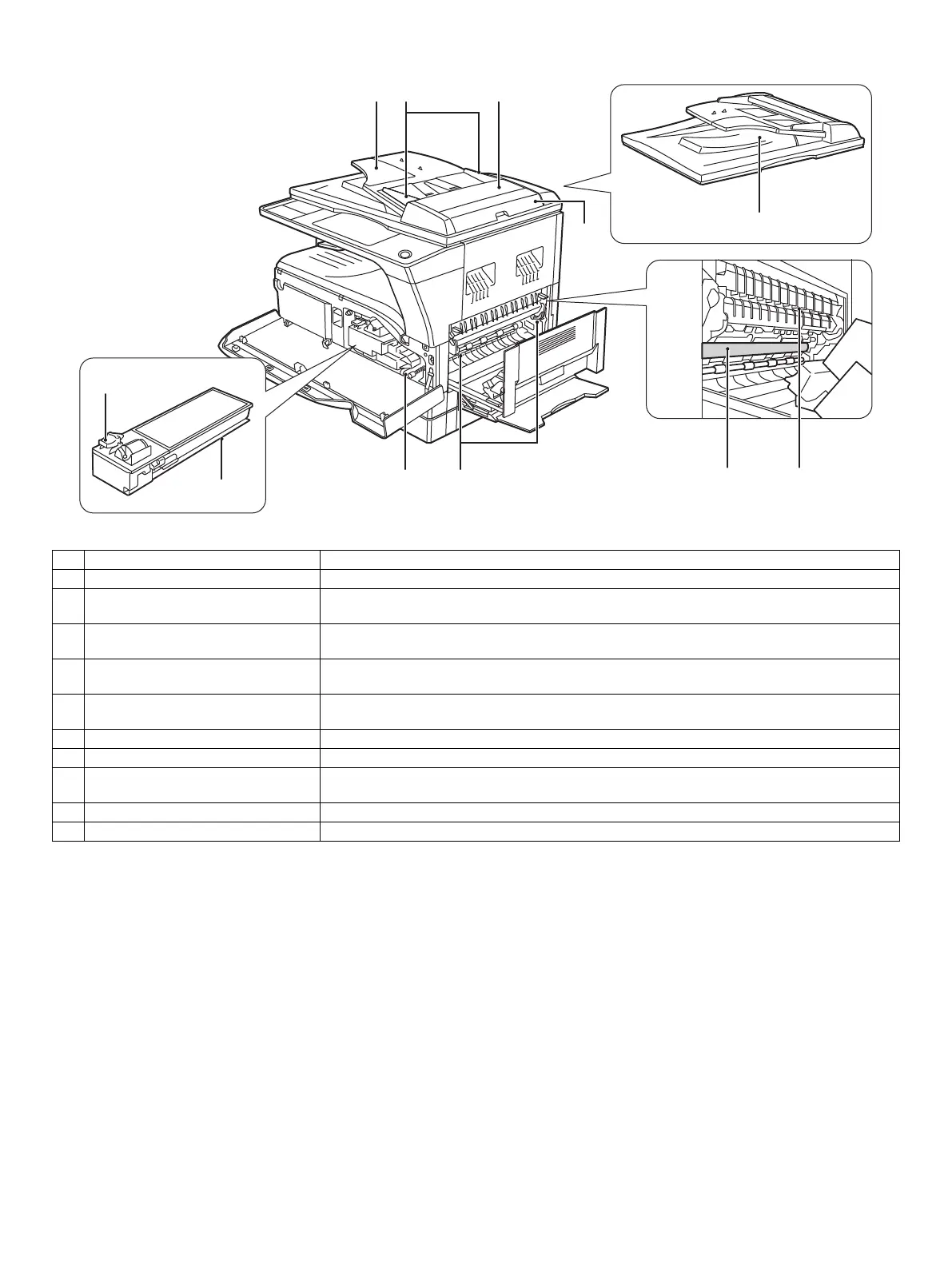

2. Internal
Warning: The fusing unit is hot. Do not touch the fusing unit when removing misfeed paper. Doing so may cause a burn or injury.
Do not touch the photoconductive drum (green portion) when removing the misfeed paper. Doing so may damage the drum and cause
smudges on copies.
Note: The model name is on the front cover of the machine.
19 Toner cartridge lock release lever To replace the toner cartridge, pull out the toner cartridge while pushing on this lever.
20 Toner cartridge Contains toner.
21 Document feeder tray (when the SPF/
RSPF is installed)
Place the original(s) that you wish to scan face up here. Up to 40 sheets can be placed.
22 Original guides (when the SPF/RSPF is
installed)
Adjust to the size of the originals.
23 Feeding roller cover (when the SPF/
RSPF is installed)
Open to remove misfeed originals.
24 Right side cover (when the SPF/RSPF is
installed)
Open to remove misfeed originals.
25 Fusing unit release levers To remove the paper misfeed in the fusing unit, push down on these levers and remove the paper.
26 Roller rotating knob Rotate to remove misfeed paper.
27 Exit area (when the SPF/RSPF is
installed)
Originals exit the machine here after copying/scanning when the SPF/RSPF is used.
28 Photoconductive drum Images are formed on the photoconductive drum.
29 Fusing unit paper guide Open to remove misfeed paper.
19
20
21 22
23
24
2526
27
28 29
To Next Page
