Sharp MX-M202D Service Manual

MX-M182 DISASSEMBLY AND ASSEMBLY 10-7
Note:I apply grease (JFE552) to a fusing lower frame, lib.
H. Separation pawl

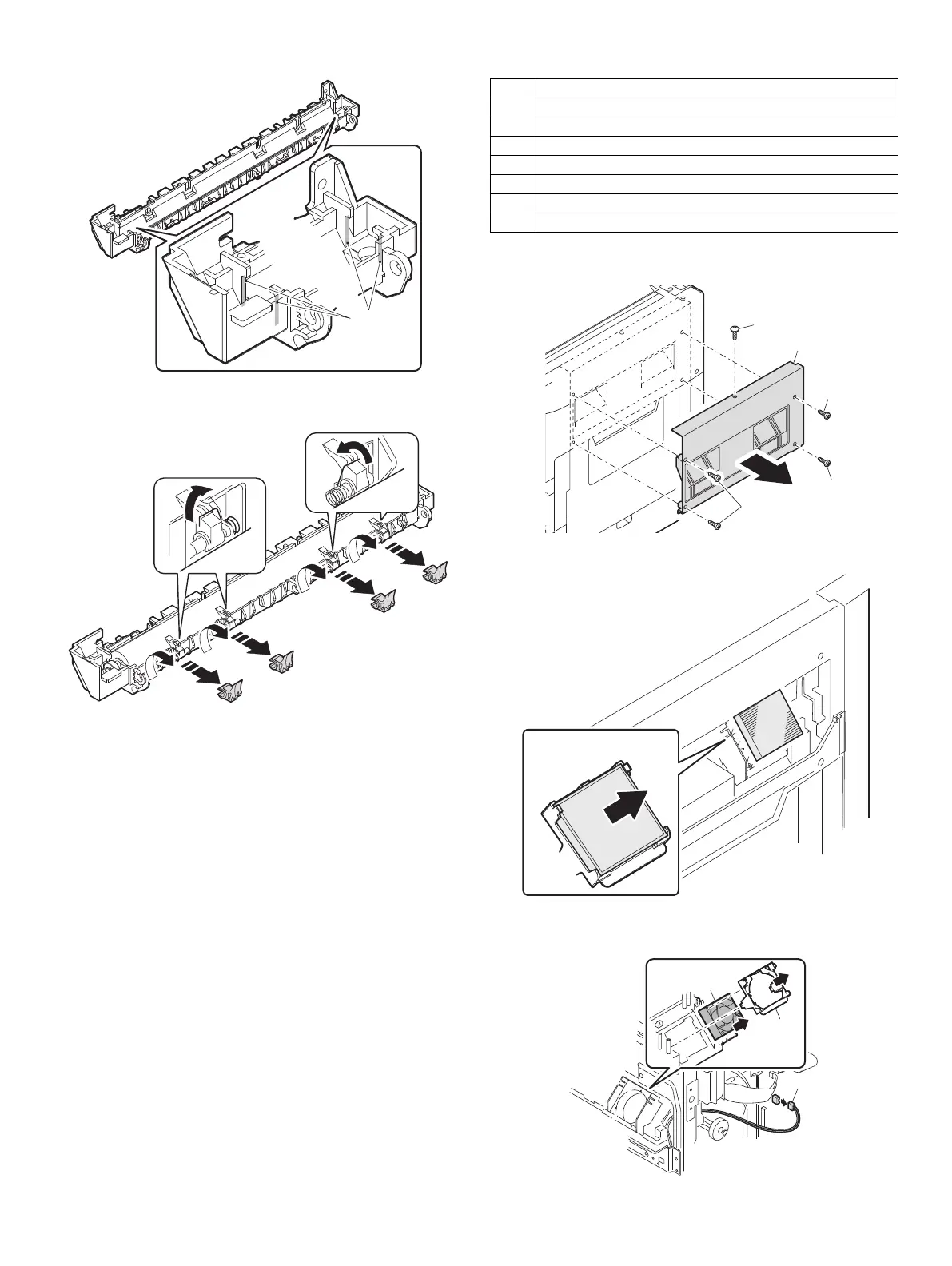

4. Paper exit section
A. Ozone filter
B. Cooling fan
Grease
(JFE552)
No. Content
A Ozone filter
B Cooling fan
C Paper exit unit
D Paper exit sensor / duplex sensor
E Transport roller
F Paper exit roller
G Paper exit interface PWB
(1)
(1)
(2)
(1)
(1)
(1)
(2)
(3)
