MX-M182 DISASSEMBLY AND ASSEMBLY 10-9

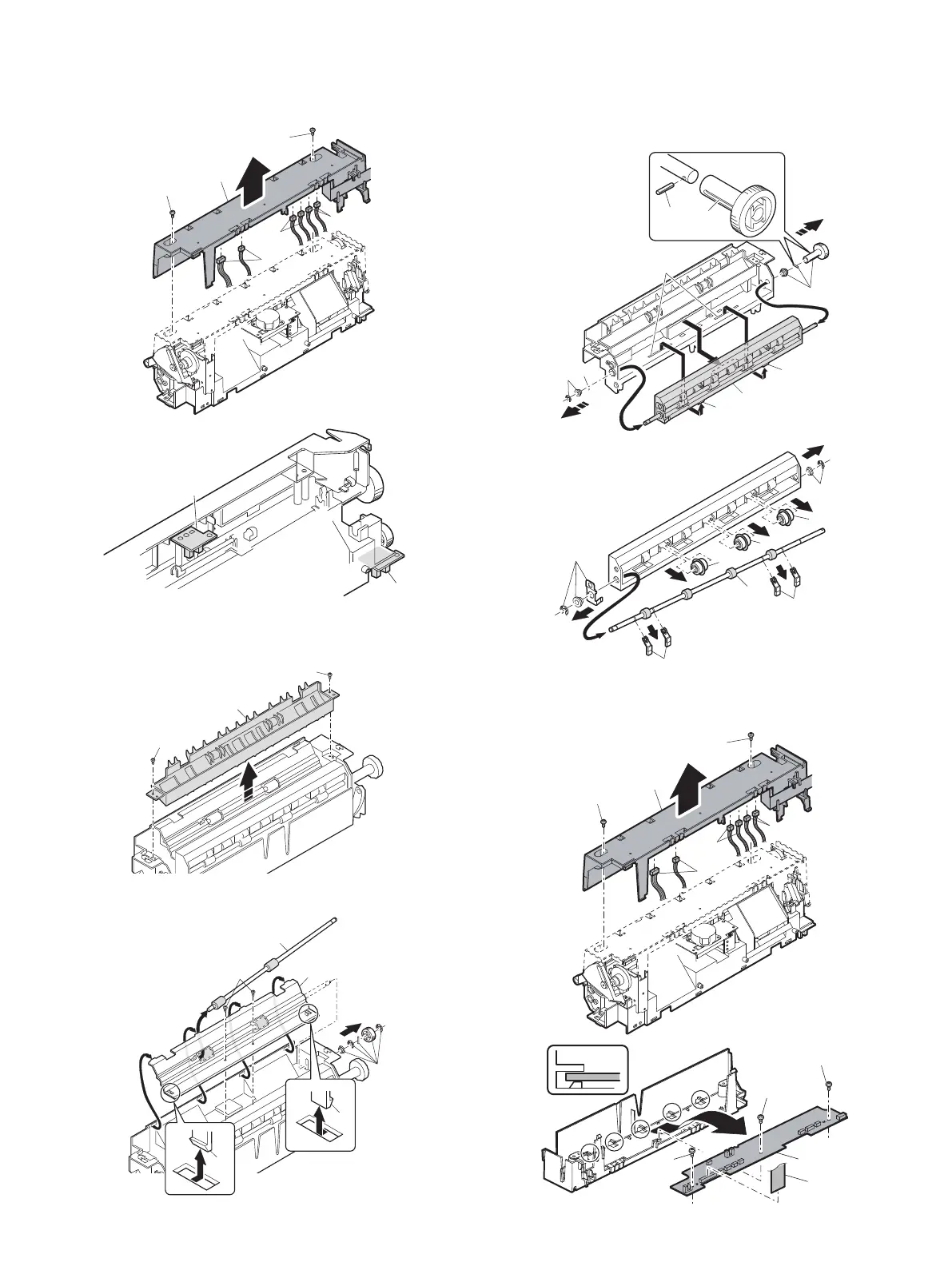

D. Paper exit sensor / duplex sensor
(A) Paper exit sensor
(B) Duplex sensor
E. Transport roller
F. Paper exit roller
Assembly: Insert the spring pin so that the waveform (A) of the spring
pin faces in the longitudinal direction of the paper exit
drive gear long hole (B).

Be sure to insert two ribs (C) into the groove (D).
G. Paper exit interface PWB
(3)
(3)
(3)
(1)
(2)
(1)
(A)
(B)
(1)
(2)
(1)
(1)
(2)
(3)
(4)
(5)
(3)
(1)
(1)
(2)
(A)
(B)
(D)
(C)
(C)
(1)
(1)
(2)
(2)
(2)
(3)
(4)
(4)
(3)
(3)
(3)
(1)
(2)
(1)
(1)
(2)
(1)
(3)
(1)
