MX-M182 DISASSEMBLY AND ASSEMBLY 10-5

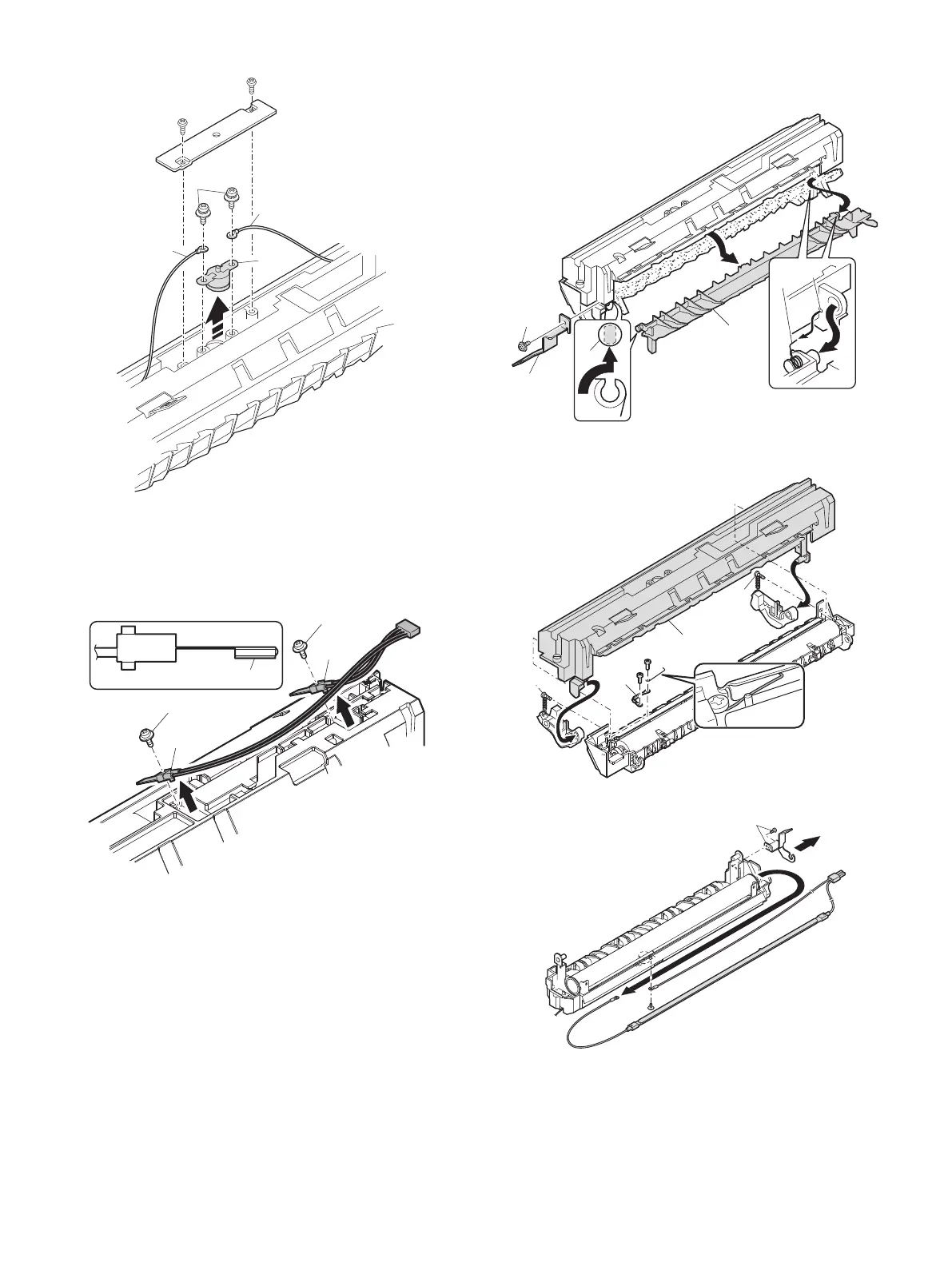

B. Thermostat
C. Thermistor
Installation: Install in direction that the sponge side (A) of the thermistor
comes in contact with heat roller.

Check that the thermistor is in contact with the upper heat
roller.
D. Heater lamp
Assembly: Insert the spring (A) into the hole (B) in the fusing frame.
Assembly: Put the fusing harness (A) on the heater lamp (B) as shown
in the figure and fix them together.<R>Place the fusing
harness inside the rib (C).
