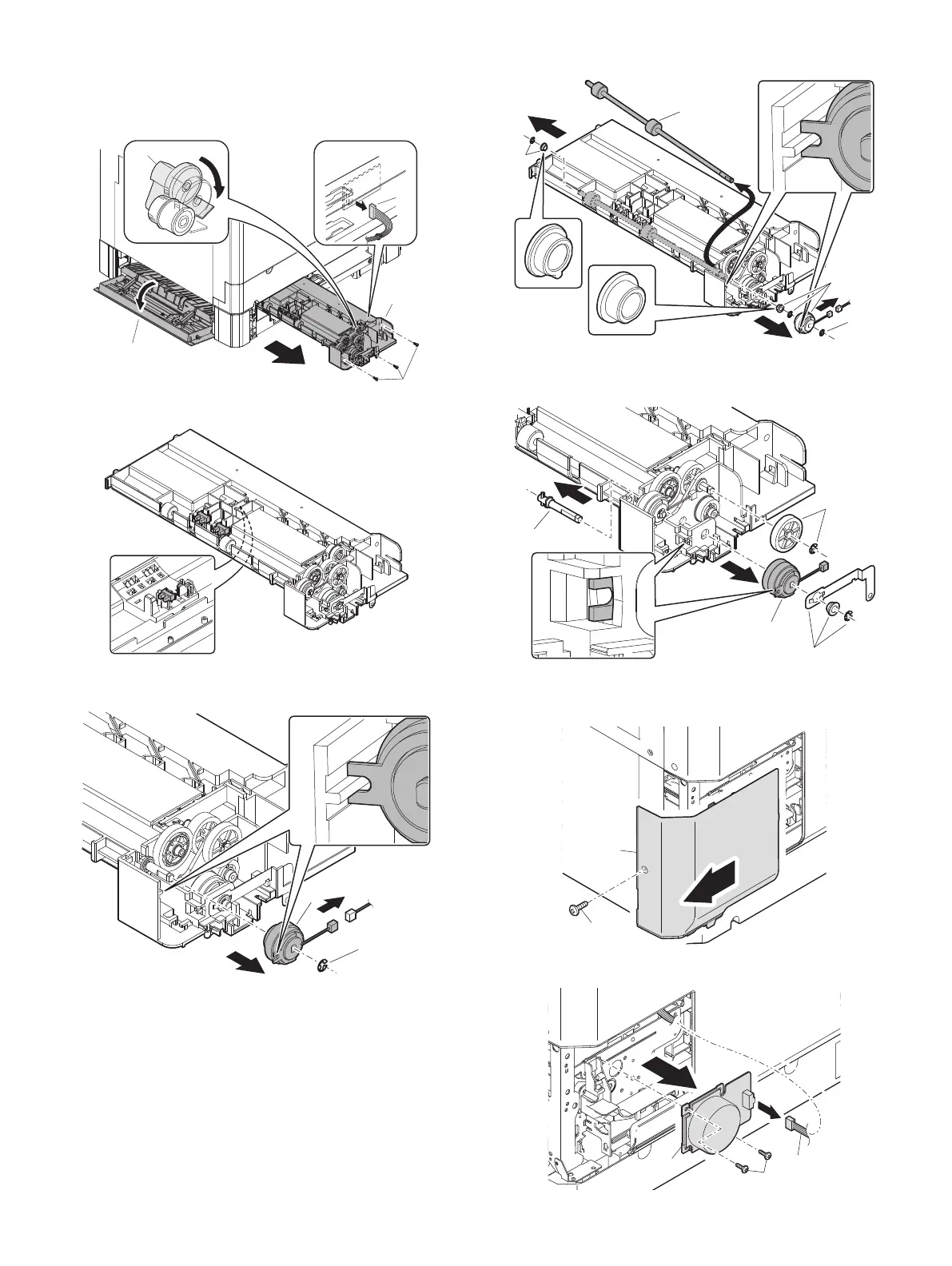

MX-M182 DISASSEMBLY AND ASSEMBLY 10-18
C. 2nd tray paper entry sensor / Paper empty sensor
Disassembly: When the second paper feed unit is detached, the screw
is removed, and the main body is lifted.
D. 2nd tray transport clutch
E. 2nd tray transport roller
F. 2nd tray paper feed clutch
G. Main motor
