MX-M182 ELECTRICAL SECTION 14-5

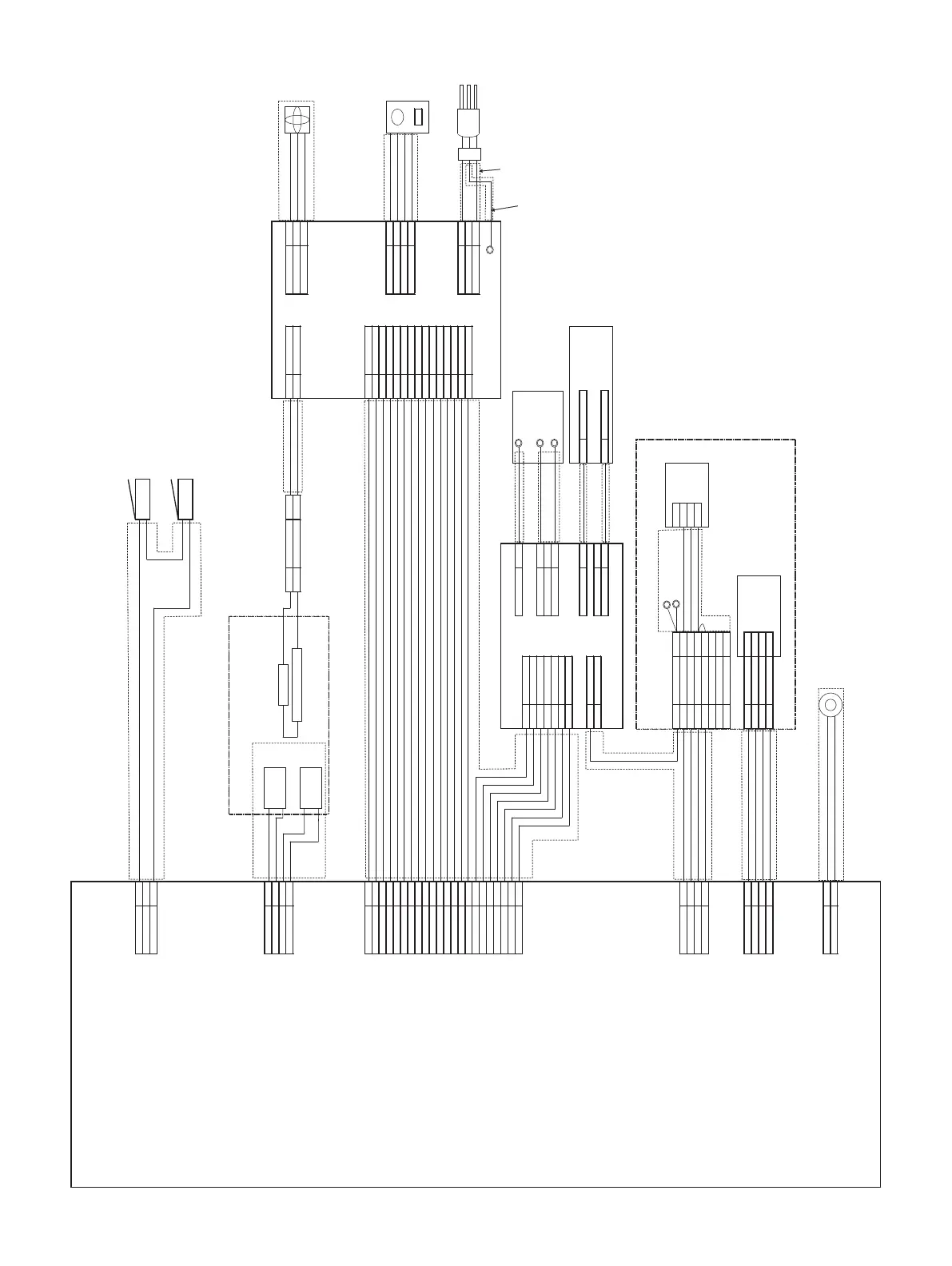

ACTUAL WIRING DIAGRAM 4/8
CN101(B3P-VH)
24V
N.C
INT24V(DSWS)
OR
VHR-3N
EHR-4
CN135(B4B-EH)
RTH_IN
DGND
#250 #250 VTR-02
RTH_IN2
VLP-02V VLR-02V CN002(B02P-VT-LF) CN102(B03B-XASK-LF) XAP-03V-1
DGND HEATER(L) HEATER(L) PSFMOUT
HEATER(N) HEATER(N) PSFMLOCK
GND
CN107(P22B-PUDSS-1) PUDP-22V-S XAP-15V-1 CN101(B15B-XASK-LF)
/POFF /POFF
24VIN 24VIN
24VIN 24VIN
CN004(B04P-VL-LF)
5VIN 5VIN NEUTRAL in
5VIN 5VIN NEUTRAL out
DGND DGND LIVE in
DGND DGND LIVE out
PSFMOUT PSFMOUT
PSFMLOCK PSFMLOCK
PGND PGND
PGND PGND
PGND PGND
PR PR
CN001(B03P-VL-LF)
FW FW LIVE
HL OUT HL OUT N.C
/MC NEUTRAL
/TC
GRIDL
/BIAS
PGND
INT24
PAP-07V-S #250
(TCCNT-AN)
CN1(B07B-PASK)
MC
/MC
/TC
CN3(B3P-VH "Black")
GRIDL MCFB
BIAS N.C
PGND GRID
INT24
(TCCNT-AN)
#250 #187
NVR-02 CN2(B02P-NV)
TC TC
DV BIAS
CN4(B02P-NV(Red))
F-GND N.C
#187
BC BC
52025-0811 51010-0811
B4B-PH-K-S
CN126(B4B-PH-K-S)
DV BIAS
24V 24V
(TCS) (TCS)
(DVS1) (DVS1)
PGND PGND
N.C
N.C
N.C
CN128(B04B-PASK-1) TSHR-04V-K TSHP-04V-K
(SDA_CRUM)
(SDA_CRUM)
(SCL_CRUM)
(SCL_CRUM)
VCC3 VCC3
DGND
DGND
VHR-2N
CN131(B2P-VH)
TMA_O
TMB_O
BK
WH
MCU PWB
PS PWB
DHAI-0553QSP2
<PS HARNESS>
DHAI-0565QSPZ
<AC SW HARNESS>
F-GND
BK
WH
BK
WH
AC SW
PS FAN
AC CORD
DHAI-0322QSZZ
<DEV HARNESS>
DHAI-0558QSPZ
<CRM-MCU HARNESS>
RD
PL
BR
GY
OR
LB
PK
GY
CRUM
RD
PL
BR
GY
OR
LB
PK
GY
MAIN THERMISTER
FUSING UNIT
DHAI-0564QSPZ
<HL HARNESS>
<INLET HARNESS>
230V Only
DV UNIT
TCS
BK
HVU PWB
PK
WH
WH
RD
DHAI-0107QSPZ
<MC HARNESS>
DHAI-0109QSZ1
<GB/MCFB HARNESS>
DHAI-0108QSPZ
<TC HARNESS>
DHAI-0550QSP1
<BC HARNESS>
Socket Holder
TC high voltage
Holder
SUB THERMISTER
RD
RD
SW
SW
DHAI-0098QSPZ
<SIDE/FRONT COVER SWITCH HARNESS>
Front Side Cover SW
Side Cover SW
DHAI-0566QSPZ
<SENSOR HARNESS>
DHAI-0571QSPZ
<CONECTOR HARNESS>
DHAI-0572QSPZ
<EARTH HARNESS>
HEATER LAMP
TONER MOTOR
BK
BK
THERMOSTAT
To Next Page
