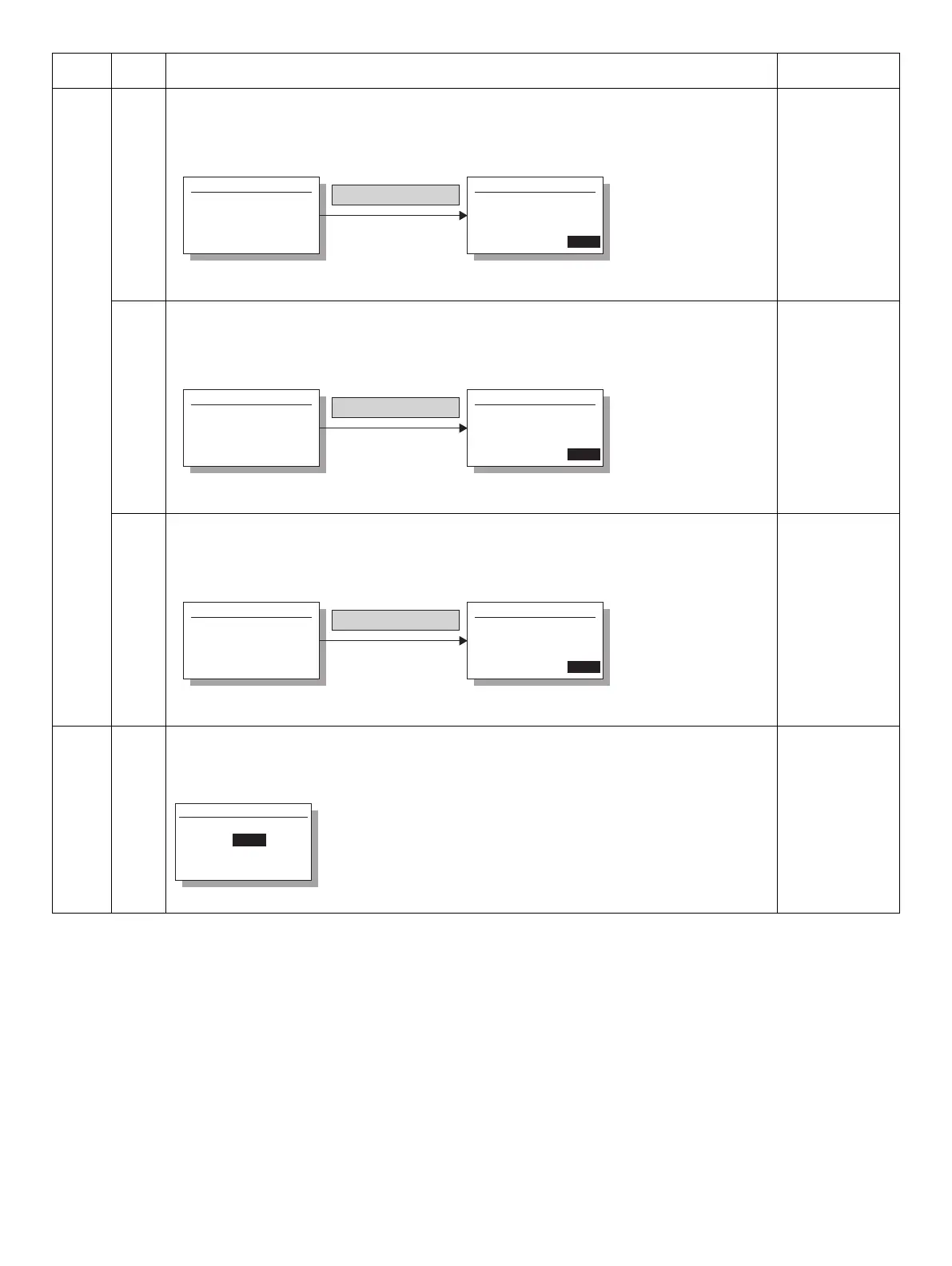

MX-M182 SIMULATIONS 7-5
02 08 SPF/RSPF paper feed solenoid operation check
Used to drive the SPF/RSPF paper feed solenoid (PSOL) 20 times in the cycle of 500msec of "ON" and
500msec of "OFF." After completion of the process, the machine returns to the sub code input window.
When [INTERRUPT] key is pressed, the machine returns to the sub code input window.
When [CA] key is pressed, the machine exits the simulation mode.
(Only when the
SPF/RSPF is
installed.}
09 RSPF reverse solenoid operation check
Used to drive the RSPF reverse solenoid (RSOL) 20 times in the cycle of 500msec of "ON" and 500msec of
"OFF." After completion of the process, the machine returns to the sub code input window.
When [INTERRUPT] key is pressed, the machine returns to the sub code input window.
When [CA] key is pressed, the machine exits the simulation mode.
(Only when the
RSPF is installed.)
11 SPF/RSPF PS release solenoid operation check
Used to drive the SPF/RSPF PS release solenoid (CLH) 20 times in the cycle of 500msec of "ON" and
500msec of "OFF." After completion of the process, the machine returns to the sub code input window.
When [INTERRUPT] key is pressed, the machine returns to the sub code input window.
When [CA] key is pressed, the machine exits the simulation mode.
(Only when the
SPF/RSPF is
installed.)
03 02 Shifter/job separator sensor status display
Used to monitor the sensors related to the shifter and the job separator and display the sensor status on the
LCD. An active sensor is highlighted.
* Displayed only when the job separator is installed except for SFTH.
(Sensor of shifter is
Japan only)
(Only when the job
separator is
installed.)
Main
code
Sub
code
Contents Remark
Sim2-8 SPUS CHECK
PRESS OK KEY EXEC
Sim2-8 SPUS CHECK
EXEC
[OK] key or [START] Key
(Initial window) (Execution window)
Sim2-9 SPFS CHECK
PRESS OK KEY EXEC
Sim2-9 SPFS CHECK
EXEC
[OK] key or [START] Key
(Initial window) (Execution window)
Sim2-11 CLH CHECK
PRESS OK KEY EXEC
Sim2-11 CLH CHECK
EXEC
[OK] key or [START] Key
(Initial window) (Execution window)
Sim3-2 SENSOR
SFTHP
TRYF
JSUP
TRYD
JSDL
Displayed name :Sensor name
SFTHP :Shifter home position sensor
JSUP :Job separator upper limit senso
JSDL :Job separator lower limit sensor
TRYF :Tray full sensor
TRYD : Paper exit sensor
