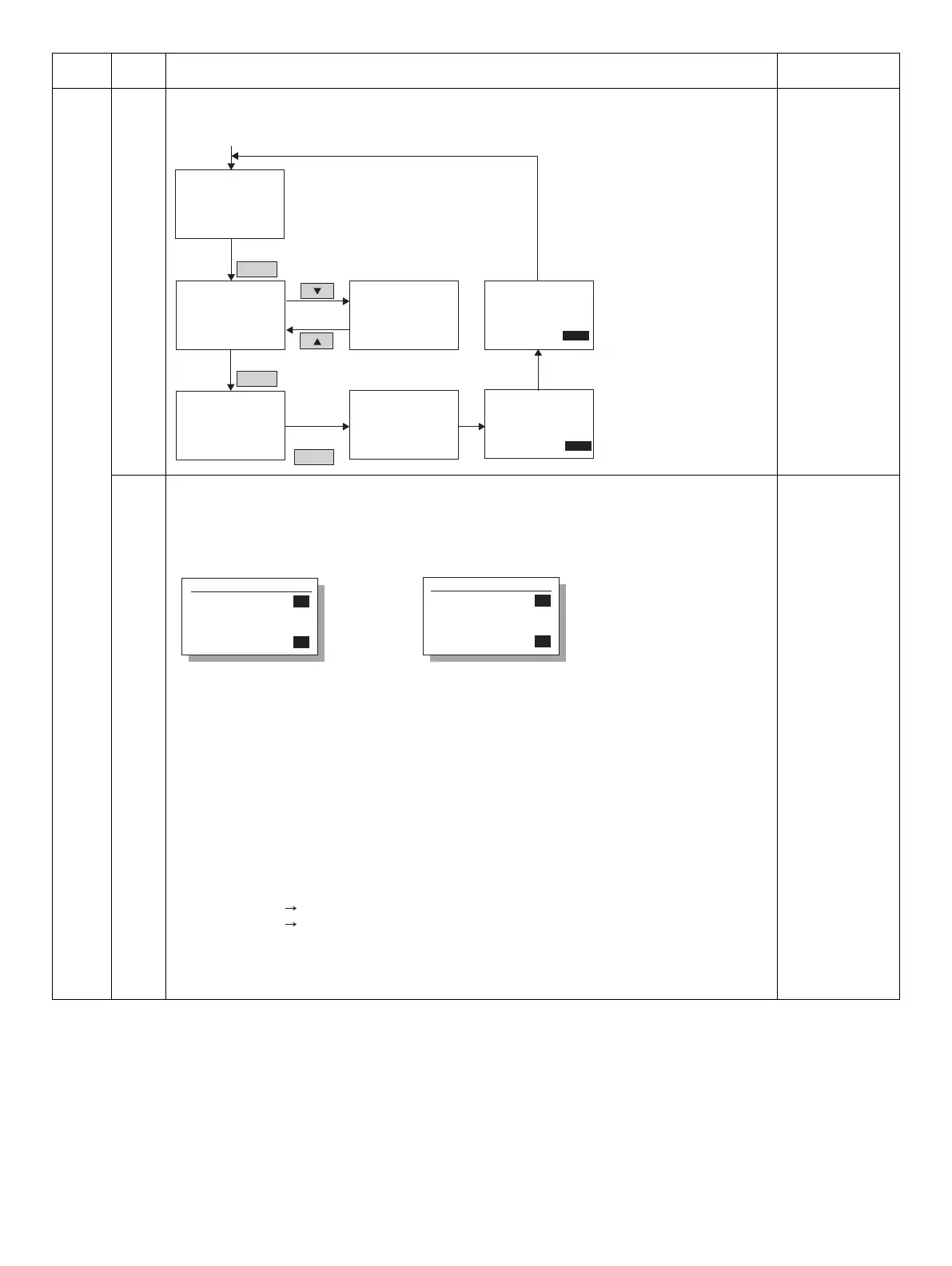

MX-M182 SIMULATIONS 7-45
50 08 FAX lead edge adjustment (scan)
Used to adjust and set the FAX document scan lead edge position and scan and print the document.
10 Paper off-center adjustment
Used to adjust the output area (main scanning direction) of scanned image data on paper.
When this simulation is executed, the selection window of the adjustment items and the current set value
are displayed.
Note 1: Items marked with (*) are displayed when TRAY2 and following options are not installed.
Note 2: When executing an adjustment copy from the manual paper feed (BYPASS) tray, set the following
paper according to the destination specification.
AB series A3 paper
Inch series Double Letter paper
The adjustment value is in the range of 1 - 99.
When the adjustment value is increased, the output image is shifted to the right. When the adjustment value
is increased by 1, the image is shifted to the right by about 0.1mm.
Select an adjustment item (mode) with the arrow keys, and enter the set value with numeric keys.
Default:
TRAY1: 50
TRAY2: 50
TRAY3: 50
TRAY4: 50
BYPASS: 50
DUPLEX: 50
Main
code
Sub
code
Contents Remark
Sim50-8 SCAN EDGE
Sim50-8 SCAN EDGE
[OK] key
[OK] key
[OK] key
Sim50-8 SCAN EDGE
Sim50-8 SCAN EDGE
Sim50-8 SCAN EDGE
Sim50-8 SCAN EDGE
1:OC
2:SPF
3:RSPF
( 1 - 3 ) X
OC
1:LEAD EDGE XX
2:LEFT EDGE XX
( 1 - 4 ) X
LEAD EDGE/OC XX
( 43- 57 ) YY
LEAD EDGE/OC XX
EXEC
LEAD EDGE/OC XX
SCAN EXEC
LEAD EDGE/OC XX
PRINT EXEC
Sim50-8 SCAN EDGE
OC
3:REAR EDGE XX
4:RIGHT EDGS XX
( 1 - 4 ) X
After input
1 - 4
After input
43 - 57
After input
1 - 3
XX: Adjustment value of current state
YY: Inputted adjustment value
(Adjustment item selection window)
Sim50-10
PRT. CENTER
1:TRAY1
2:TRAY2
3:TRAY3
1/2 [ 1- 99]
50
50
50
50
Sim50-10
PRT. CENTER
4:TRAY4
5:BYPASS
6:DUPLEX
2/2 [ 1- 99]
50
50
50
50
Display text :Adjustment mode
1:TRAY1 :Print center offset (TRAY1)
2:TRAY2 (*) :Print center offset (TRAY2)
3:TRAY3 (*) :Print center offset (TRAY3)
4:TRAY4 (*) :Print center offset (TRAY4)
5:BYPASS :Print center offset (BYPASS)
6:DUPLEX (*) :Print center offset (DUPLEX 2nd print surface)
To Next Page
