PART NAMES AND FUNCTIONS

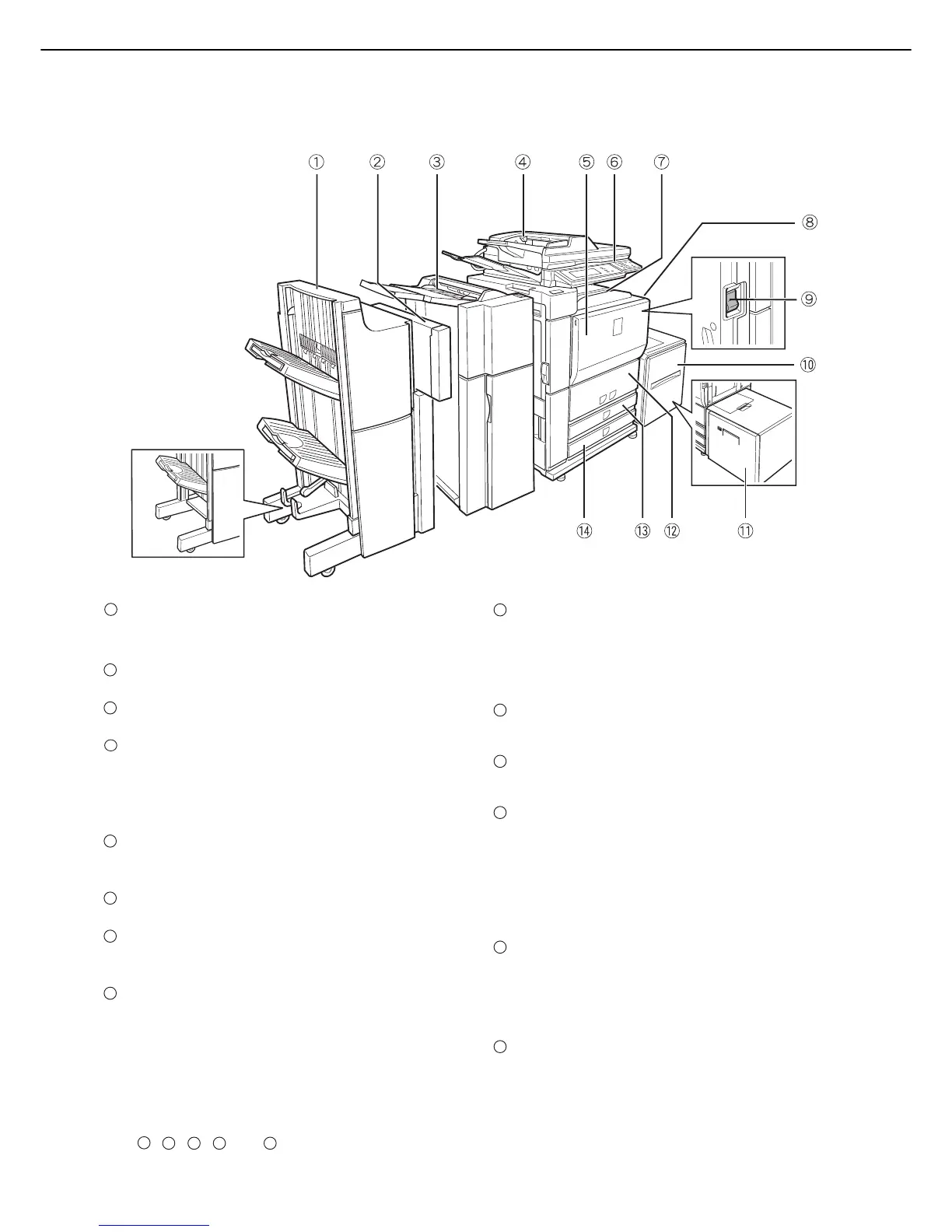

Exterior
Saddle stitch finisher (AR-F16)
*1
/
Finisher (AR-F15)
*1
(See page 3-2)
Punch module (AR-PN4A)
*1
(See page 3-2)
Inserter (AR-CF2)
*1
(See page 3-14)
Automatic document feeder (See page 4-2)
This automatically feeds and scans multiple sheet
originals. Both sides of two-sided originals can be
scanned at once.
Front cover
Open to replace toner cartridge.
Operation panel
Centre tray (See page 4-9)
Finished sheets are deposited here
Bypass tray
Special papers (including transparency film) and
copy paper can be fed from the bypass tray.
Power switch (See page 1-17)
Turns the power on and off.
If the power does not come on when the power
switch is turned on, check the main power switch to
see if it is turned on.
Tray 5 (Large capacity tray(AR-LC6))
*1
(See page 2-7)
Tray 5 (Large capacity tray(AR-LC7))
*1
(See page 2-8)
Tray 1-Tray 2
The trays hold paper. Approximately 800 sheets of
standard A4 or 8-1/2" x 11" size paper (80 g/m
2
(20 lbs.)) can be loaded in tray 1, and
approximately 1200 sheets of standard A4 or
8-1/2" x 11" size paper (80 g/m
2
(20 lbs.)) can be
loaded in tray 2.
Tray 3
Tray 3 holds paper. Approximately 500 sheets of
standard (80 g/m
2
(20 lbs.)) paper can be loaded
in this tray. Tabbed paper and transparencies can
also be loaded.
Tray 4
Tray 4 holds paper. Approximately 500 sheets of
standard (80 g/m
2
(20 lbs.)) paper can be loaded
in this tray.
*1 , , , and are peripheral devices. For information on these devices, see the explanations of the
devices in the manual.
(AR-F15)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2 3 10 11
