PART NAMES AND FUNCTIONS
1-11
1

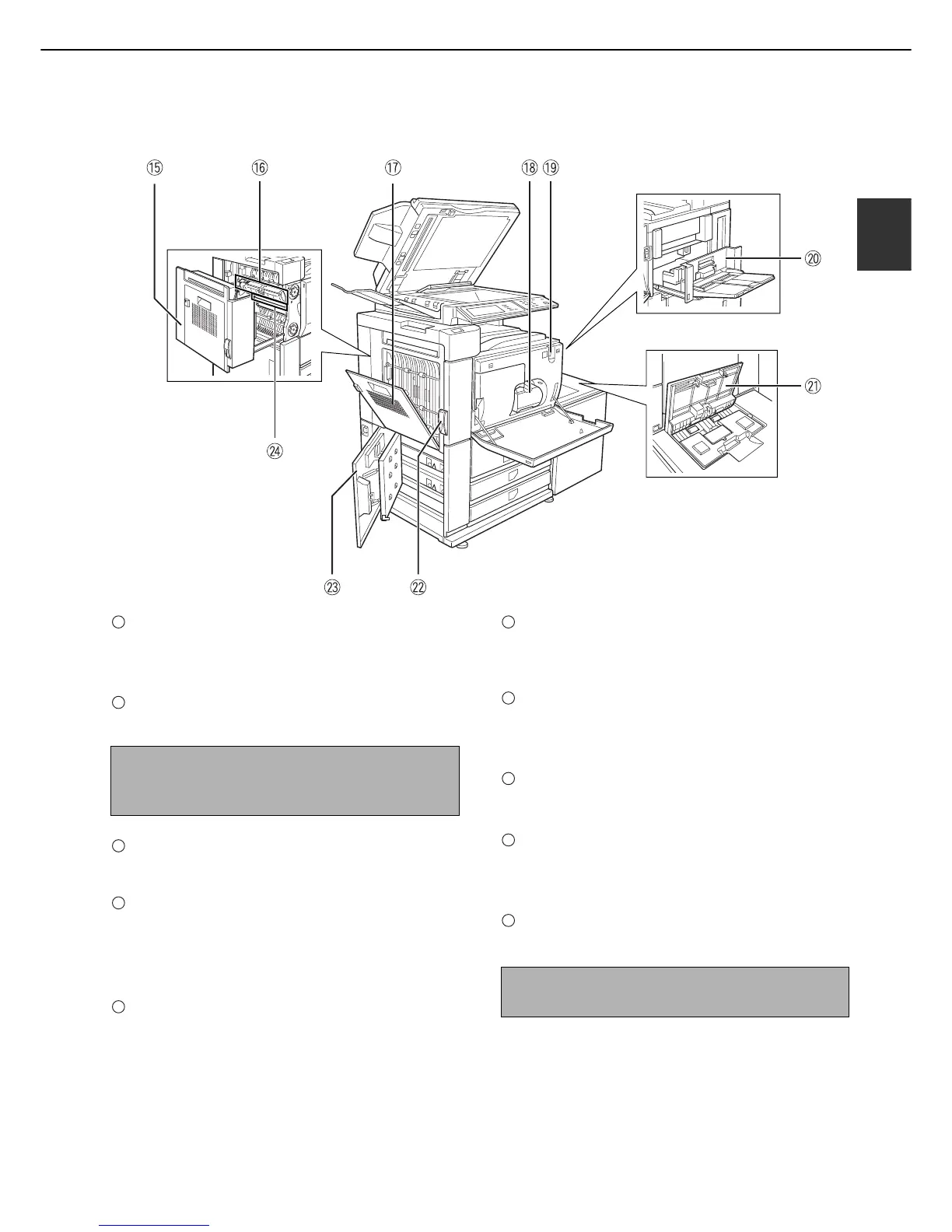

Interior
Duplex unit
Open this cover to remove a misfeed from the
fusing unit area.
Fusing unit
Toner images are fused here.
Cover of the duplex unit
Open when a misfeed has occurred in duplex unit.
Toner cartridge
*2
This holds toner for printing. The toner cartridge
must be replaced when indicated on the operation
panel.
Main power switch (See page 1-17)
Keep this switch turned on when the fax option or
Internet fax option is installed.
Right side cover
Open when a misfeed has occurred in the bypass
tray or large capacity tray.
Upper cover of large capacity tray
Open when a misfeed has occurred in the large
capacity tray.
Left side cover release
Push this knob up to open the left side cover.
Left cover of paper drawer
Open this cover to remove paper misfed in tray 3 or
tray 4.
Photoconductive drum
Images are formed on the photoconductive drum.
*2 See page 2-21 for the procedure for installing and replacing the toner cartridge.
CAUTION
The fusing unit is hot. Take care in removing misfed
paper.
15
16
17
18
19
NOTE
Do not touch or damage the photoconductive drum.
20
21
22
23
24
To Next Page
