19
PG-A10S
PG-A10S-SL
AN-A10T

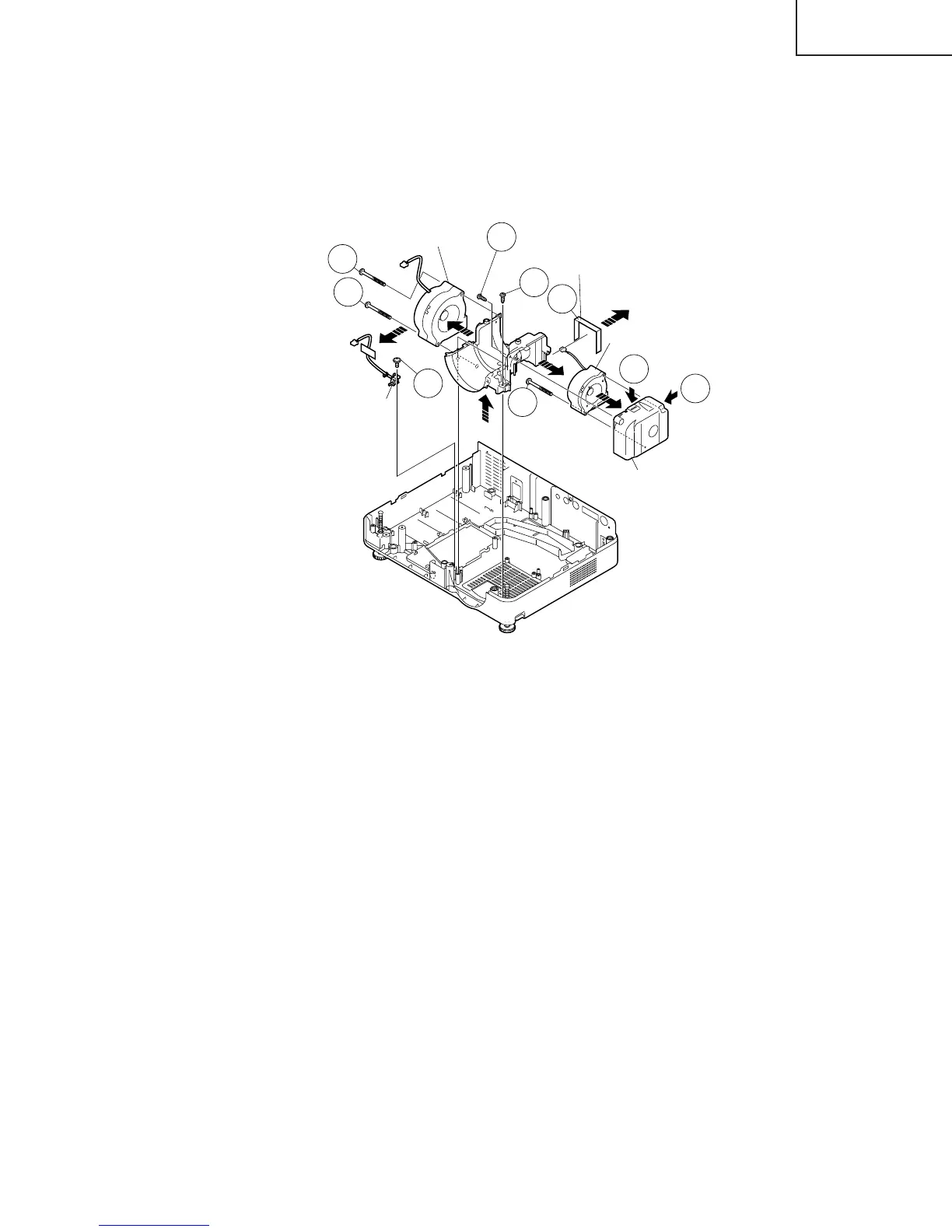

6. Removing the intake duct assembly
6-1. Remove the two screws and take out of the intake duct assembly.
6-2. Remove a screw and detach the leaf switch.
6-3. Remove a screw and two hooks. Detach the the spacer B. Take out of the fan LCD R/G-intake duct B
assembly.
6-4. Remove a screw and detach the fan LCD R/G.
6-5. Remove the two screws and detach the fan LCD B.
6-1
6-2
6-3
6-5
6-4
6-3
6-3
Intake Duct B
Fan LCD R/G
Leaf Switch
Fan LCD B
6-5
6-3
Spacer B
To Next Page
