THE OPTICAL UNIT OUTLINE

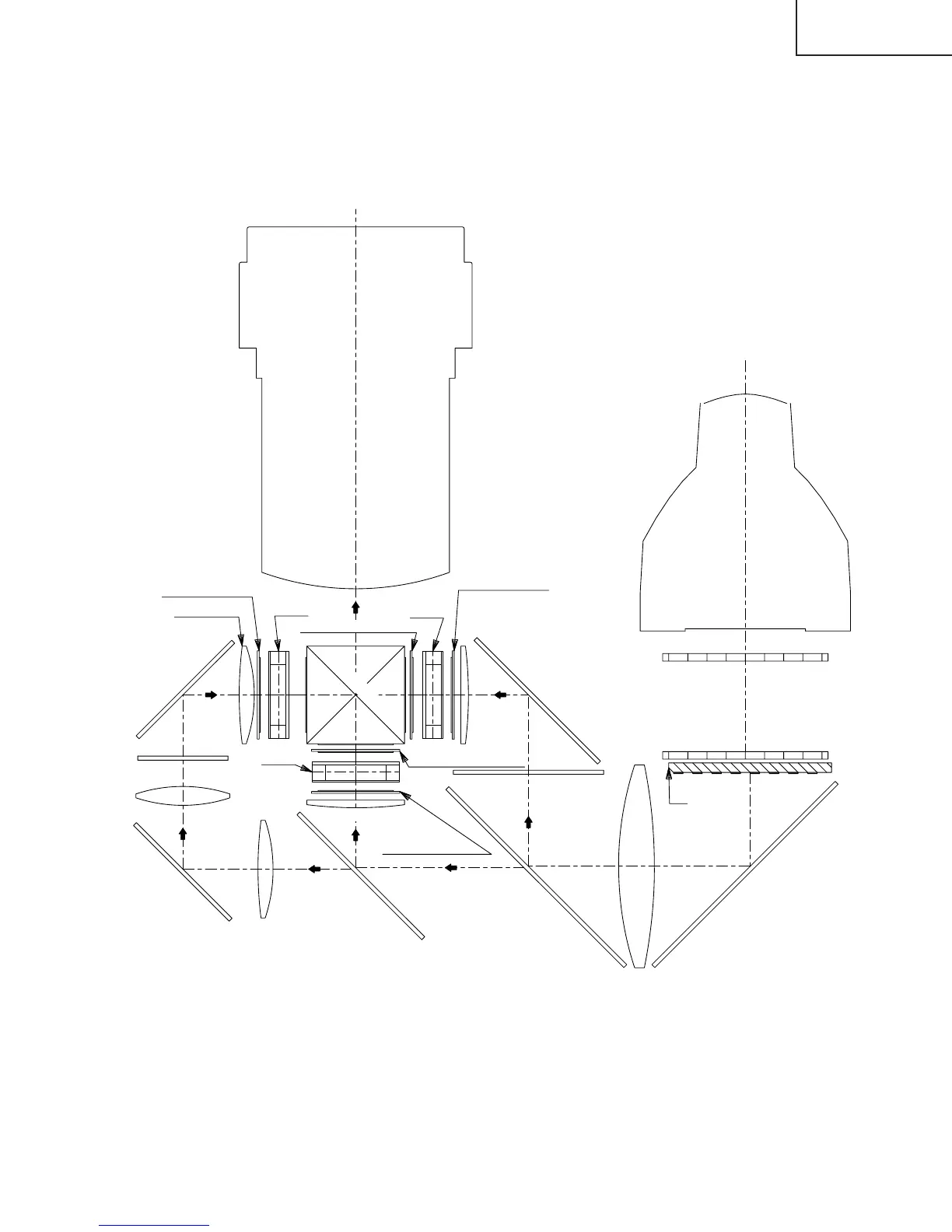

Layout for proper setup of the optical components and parts (top view)
LIGHT SOURCE
(LAMP)
Mirror R,G,B
Condencing lens
B reflector
UV reflector
Mirror B
G reflector
Fly-eye lens(Input)
Fly-eye lens(Output)
Relay lens 1
Mirror R 1
Relay lens 2
R dichroic filter
Mirror R 2
Relay lens 3
Input polarizer R
LCD(R)
LCD(B)
LCD(G)
Output pre-polarizer G
Input polarizer B
Input polarizer G
Condencing lens B
Projection lens
Blue
Green/Red
Red
PBS
Green
Output pre-polarizer B
Cross dichroic prizm
Condencing lens G
