Sharp PG-A10S - Waveforms; Wellenformen

77
1716 1918151413121110
PG-A10S
PG-A10S-SL
AN-A10T

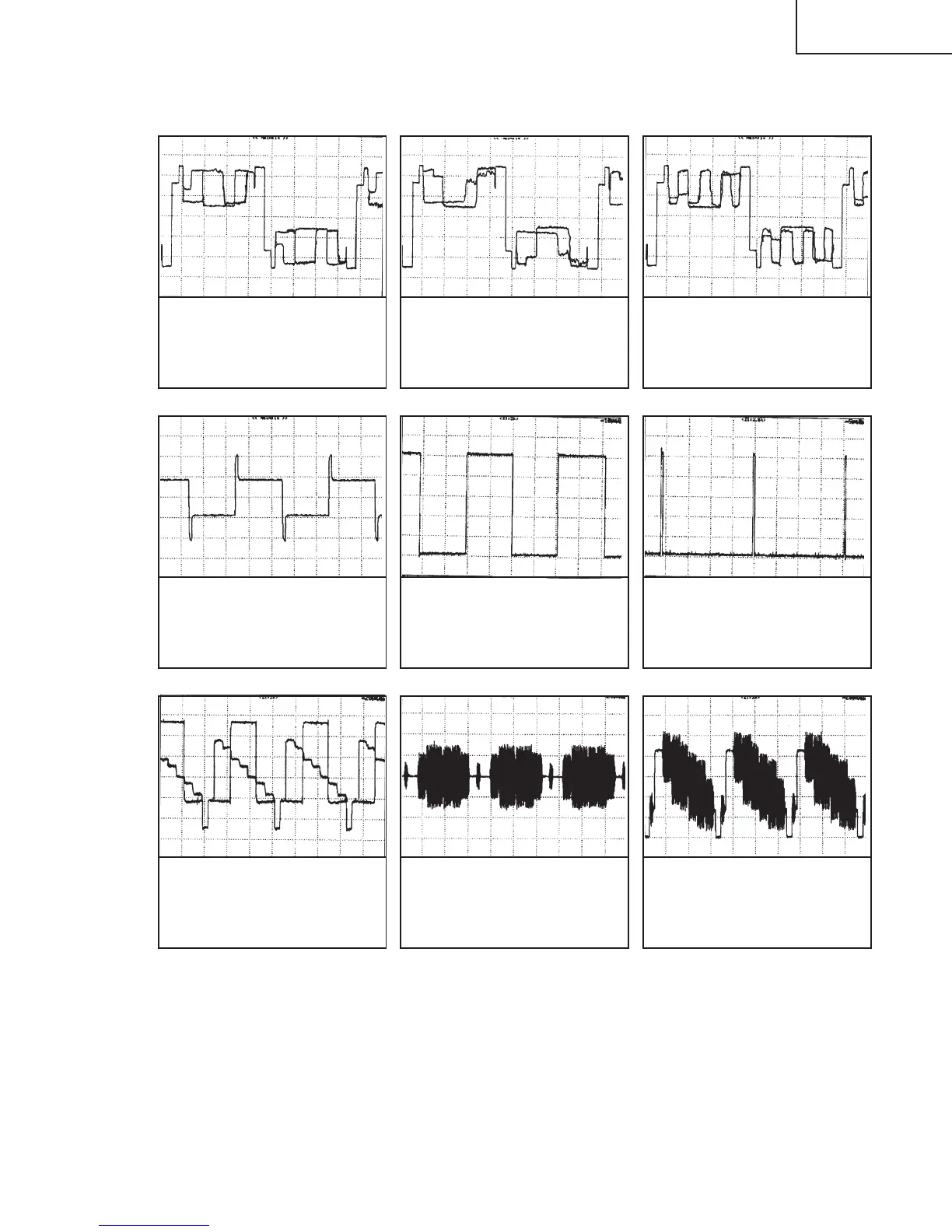

WAVEFORMS / WELLENFORMEN
1 RTP(P1301-1)
H:5µsec/div
V:2V/div
2 GTP(P1301-2)
H:F5µsec/div
V:2V/div
3 BTP(P1301-3)
H:5µsec/div
V:2V/div
4 P-SIG(TP1101)
H:10µsec/div
V:2V/div
5 VST(IC2604-12)
H:10µsec/div
V:1V/div
6 HST10(IC2604-17)
H:5µsec/div
V:1V/div
7 Y(IC3506-25)
H:20µsec/div
V:0.2V/div
8 C(IC3506-27)
H:20µsec/div
V:0.2V/div
9 Video(J402-2)
H:20µsec/div
V:0.2V/div
