PN-L803C/80TC3 SERVICE MENU/VARIOUS SETTING TOOL OPERATING PROCEDURES 4- 37
19. FLICKER ADJUSTMENT TOOL
■ Outline
The LCD flicker adjustment is performed after replacing the C-PWB and the LCD module.
■ Instrument
-
PC for adjustment
The PC needs to have LAN port :100BASE TX/10BASE TX.
- Screwdriver
Used for opening/closing of rear cabinet.

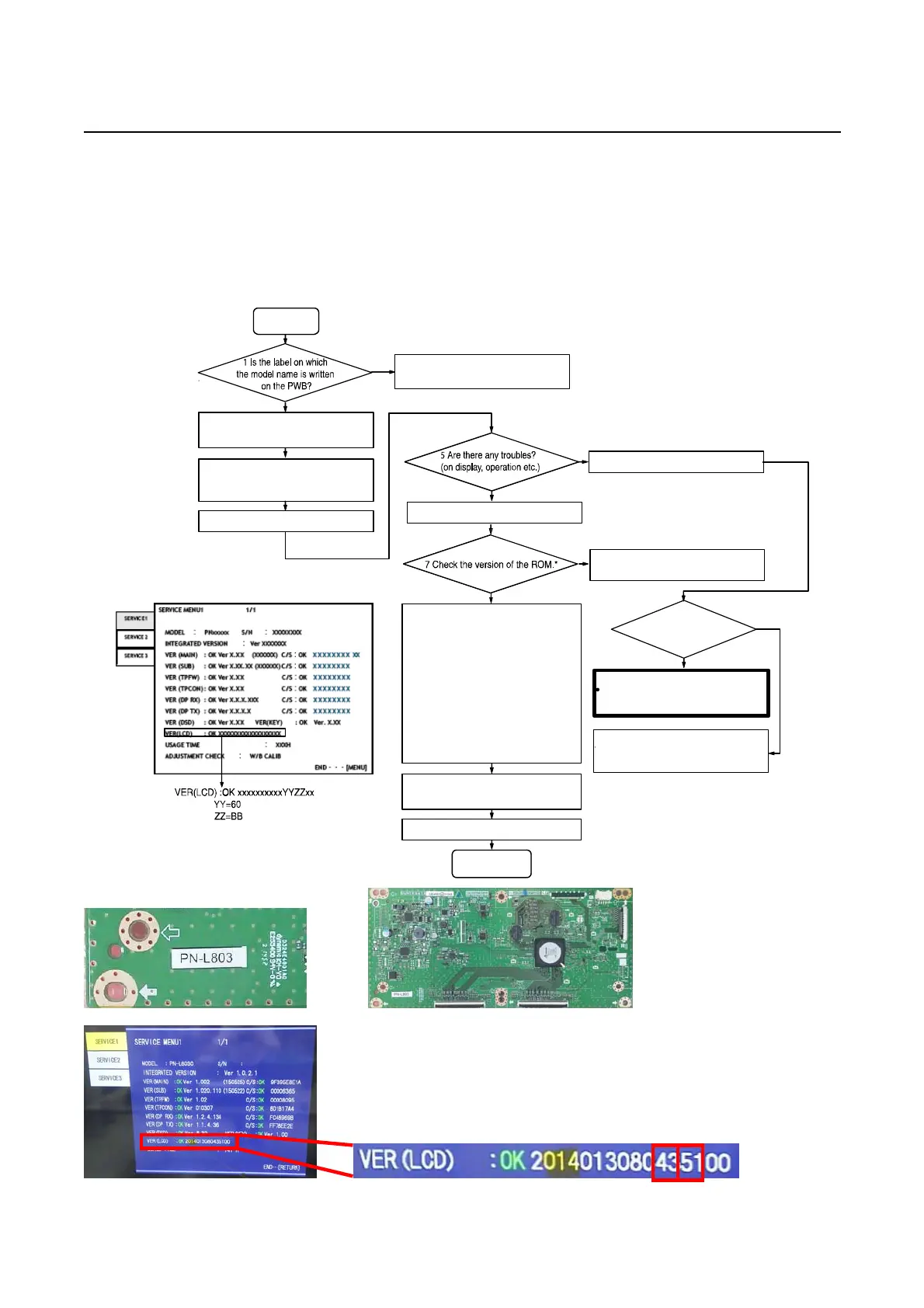

■ Flow chart
Start
4 Turn on IDP.
8 Adjust with service tool.
10 Remove the LAN cable
End
Ye s
No
Ye s
No
2 Confirm that main power SW is off.
3 Connect the PC and IDP with LAN
cable.
9 Turn off IDP.
Turn off right away
Checking harness
connections is done?
Cause of inferiority is not T-CON PWB
OR
This T-CON PWB has some defects.
Confirm the connection of FFC and
LVDS, and turn on again and retry
adjustment.
-Refer to "19 - 1. OPERATING
CONDITIONS FORTHE
FLICKER ADJUSTMENTTOOL".
-Refer to page "19 - 2. BOOTING
PROCEDURES OFTHE
FLICKER ADJUSTMENTTOOL".
-Refer to page "19 - 3. FLICKER
ADJUSTMENT PROCEDURES".
T-CON PWB is not appropriate
Please use another T-CON PWB.
No
6 To enter the service menu
Version of the ROM is not appropriate.
Please use another T-CON PWB.
*Check the version of the ROM.
