Sharp PN-L803C Service Manual

PN-L803C/80TC3 DISASSEMBLY AND ASSEMBLY 6 - 9

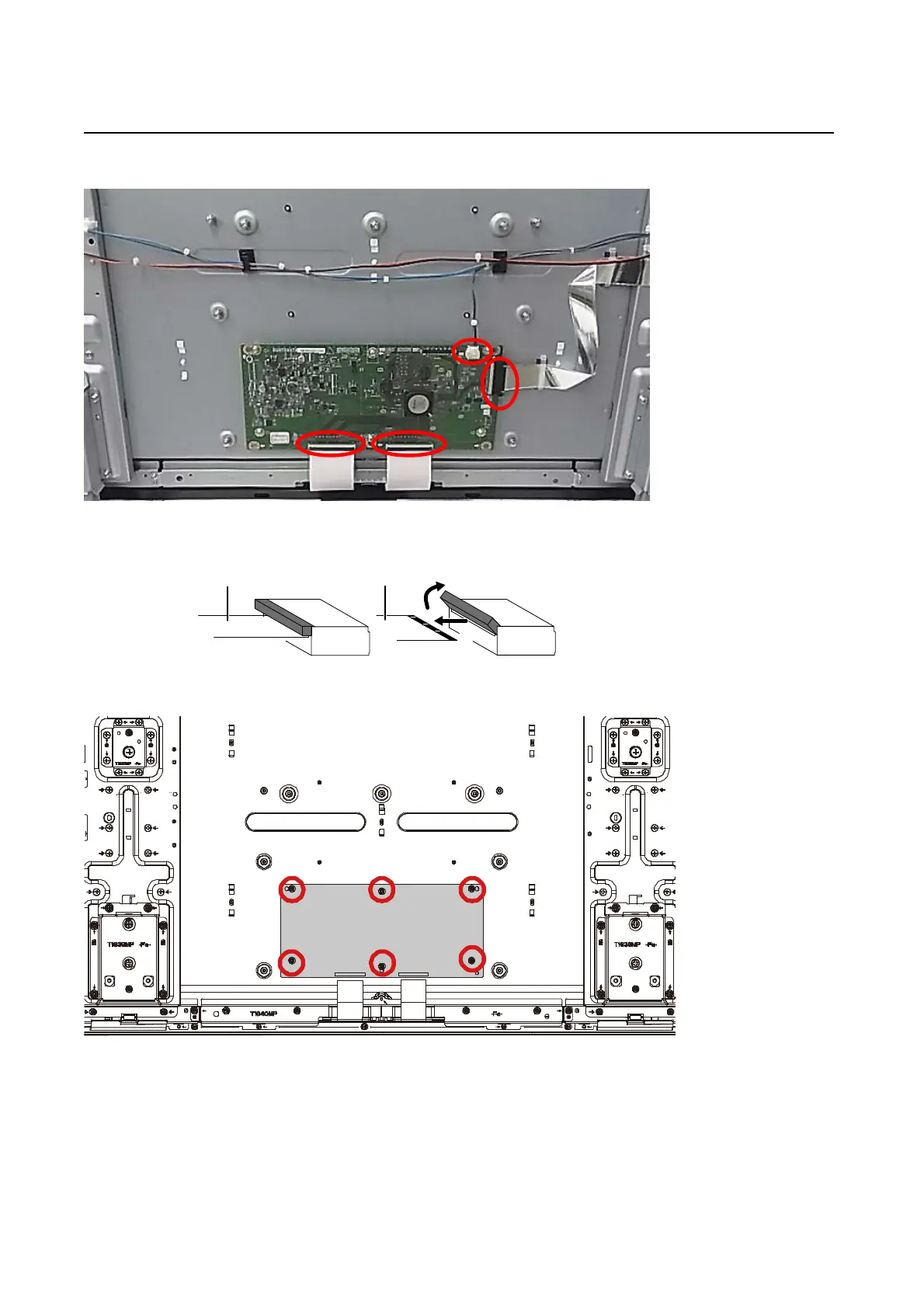

7. T-CON PWB
1) Remove the Rear Cover L/R/C.
2) Remove the four connectors.
<CAUTION>
When the FPC connector is removed, lift up the black part of the connector to unlock the connector.
3) Remove the six screws (M3x6 SW+W) and remove the T-CON PWB.
FPC
FPC
①
②
