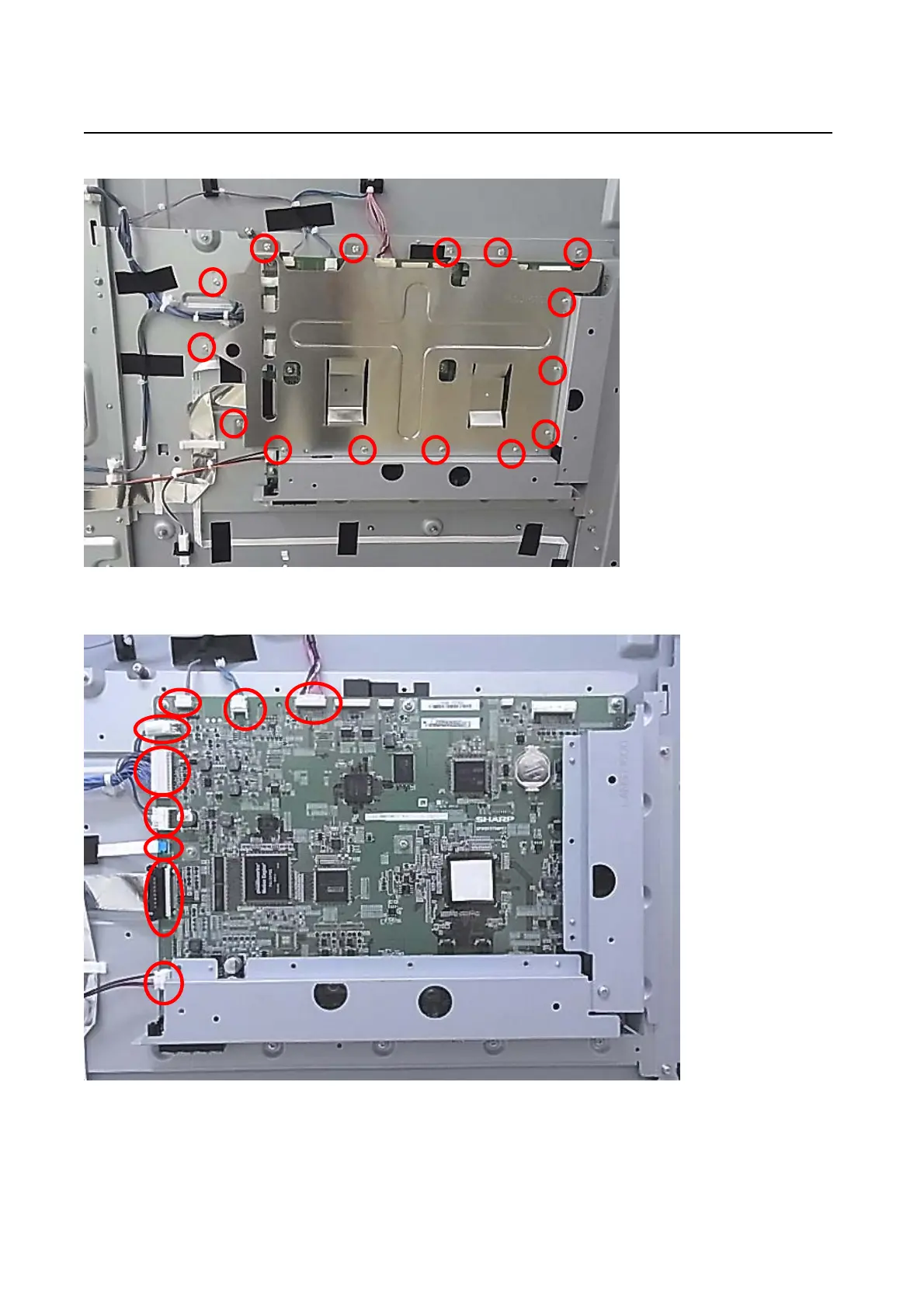

PN-L803C/80TC3 DISASSEMBLY AND ASSEMBLY 6 - 12
10. MAIN PWB
1) Remove the Rear Cover L.
2) Remove the 15 screws (M3x6 BINDING (Silver)) and remove the I/F cover.
3) Remove the nine connectors. .
