PN-L803C/80TC3 DISASSEMBLY AND ASSEMBLY 6 - 20
13. LCD MODULE UNIT
(CAUTION)
This operation must be done with the monitor being laid.
1) Remove the Touch Panel Unit.

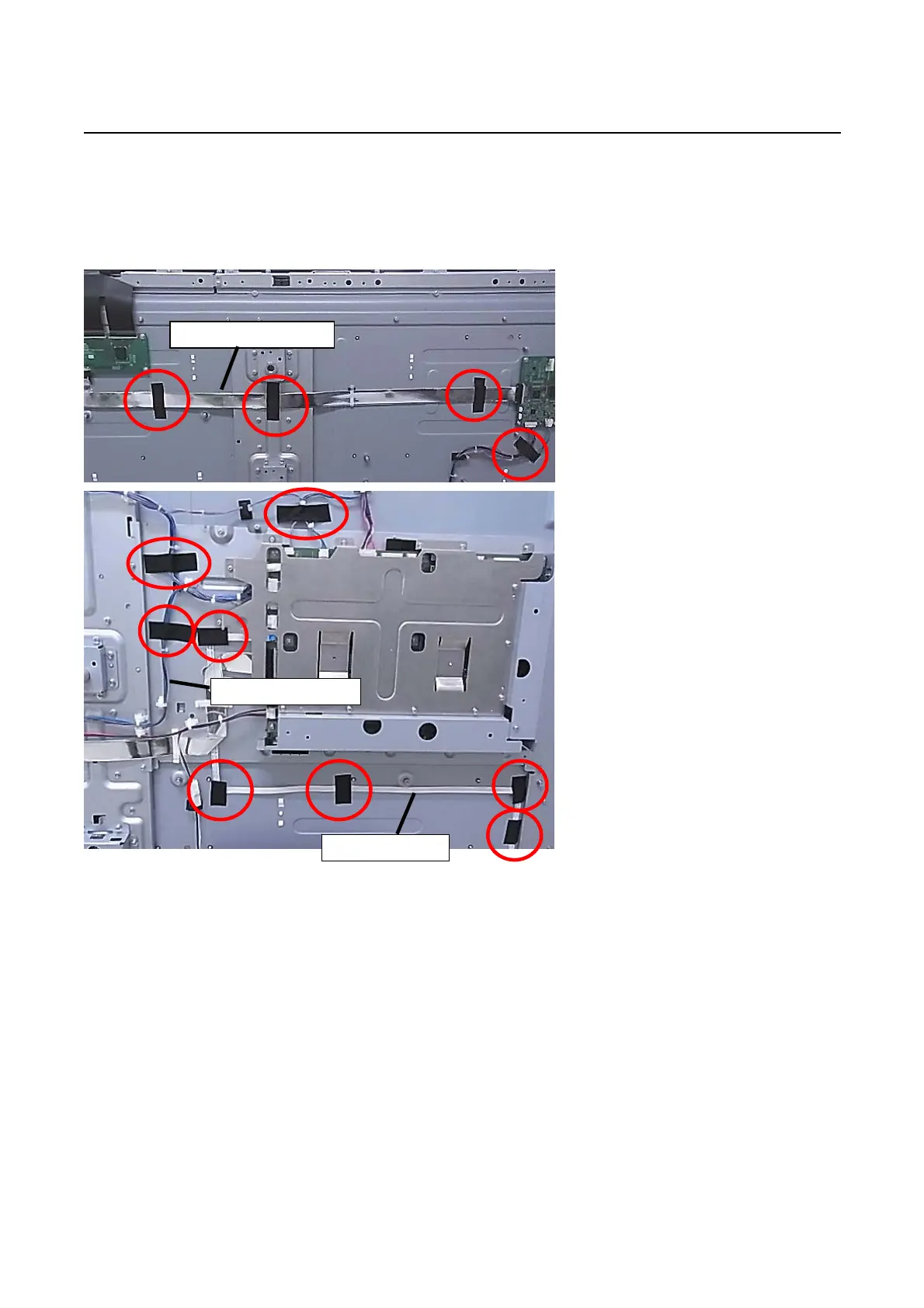

2) Remove the 12 UL tapes (Black) for fixing the AFE-DBE FFC harness, the Power-Main harness and
the Key FFC harness as shown in the following figure.
(CAUTION)
- When the tape cannot be used again, use the following service parts.
Parts No. : ZTAPEP179050E Name : Tape
AFE-DBE FFC harness
Powe
-Main harness
Key FFC harness
