PN-L803C/80TC3 DISASSEMBLY AND ASSEMBLY 6 - 7

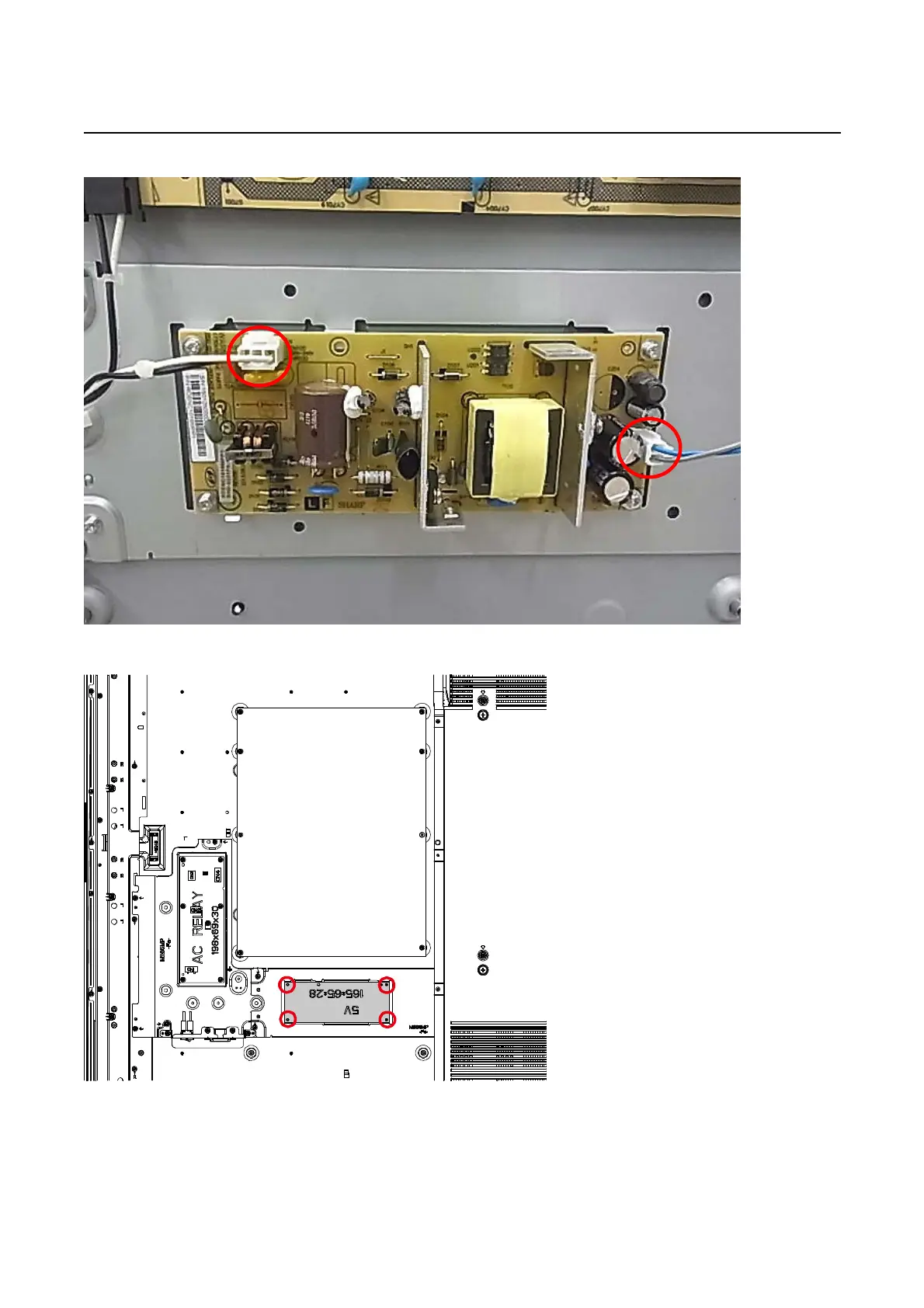

5. 5V POWER SUPPLY PWB
1) Remove the Rear Cover R.
2) Remove the two connectors.
3) Remove the four screws (M3x6 SW+W) and remove the 5V Power Supply PWB.
