Sharp PN-L803C Service Manual

PN-L803C/80TC3 DISASSEMBLY AND ASSEMBLY 6 - 26

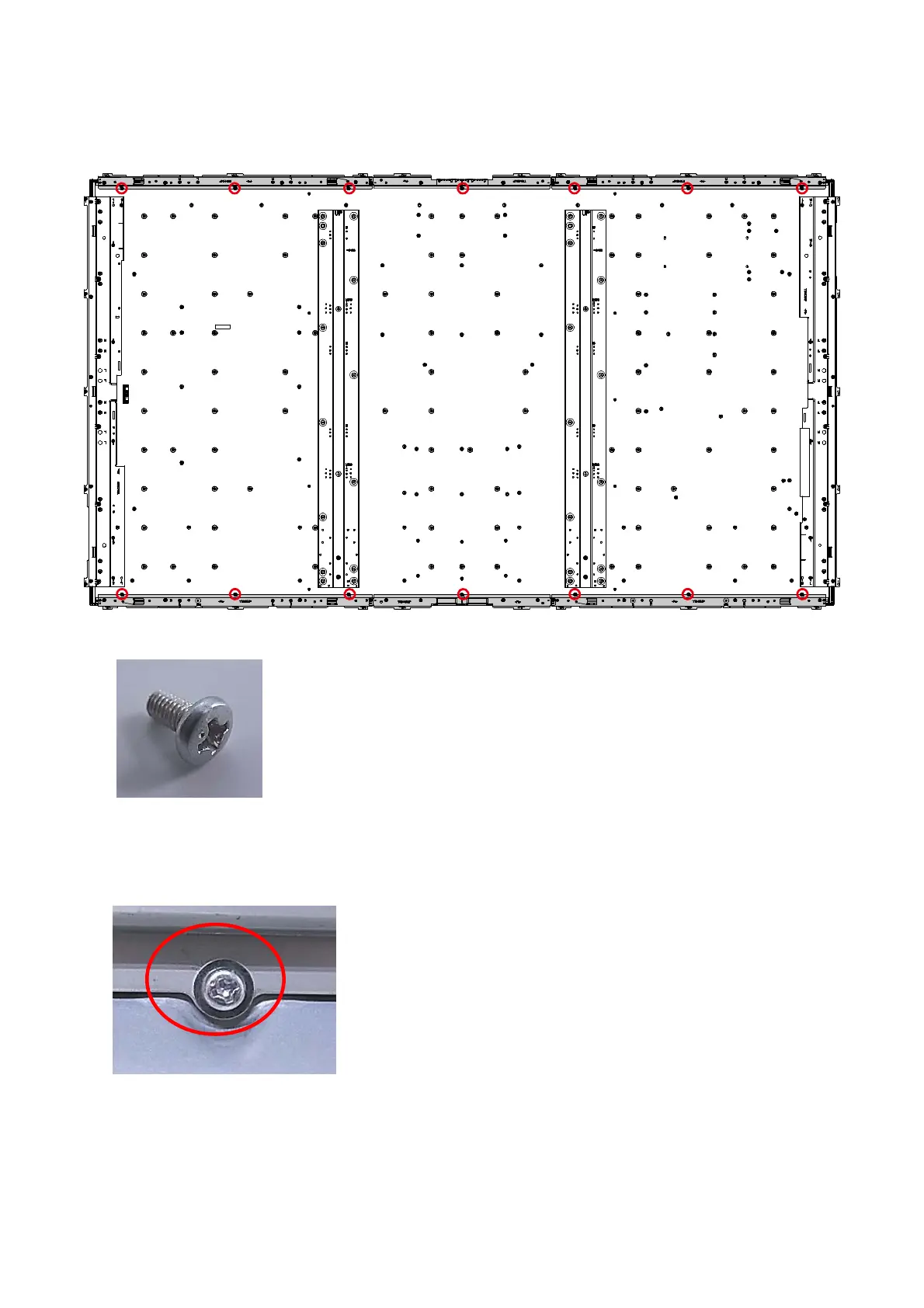

13) Remove the 14 screws (M3x6 SW+W). Then, remove the Module Fixed Angle Center, the Module
Fixed Angle Side, the Module Fixed Angle Left and the Module Fixed Angle Right.
Screw  (M3x6 SW+W)
<MEMO>
- There are raised arrow marks on the Module Fixed Angle Center, the Module Fixed Angle Side, the
Module Fixed Angle Left and the Module Fixed Angle Right. It is possible to find out where are
screws.

Sharp PN-L803C Specifications

General

Brand	Sharp
Model	PN-L803C
Category	Monitor
Language	English
