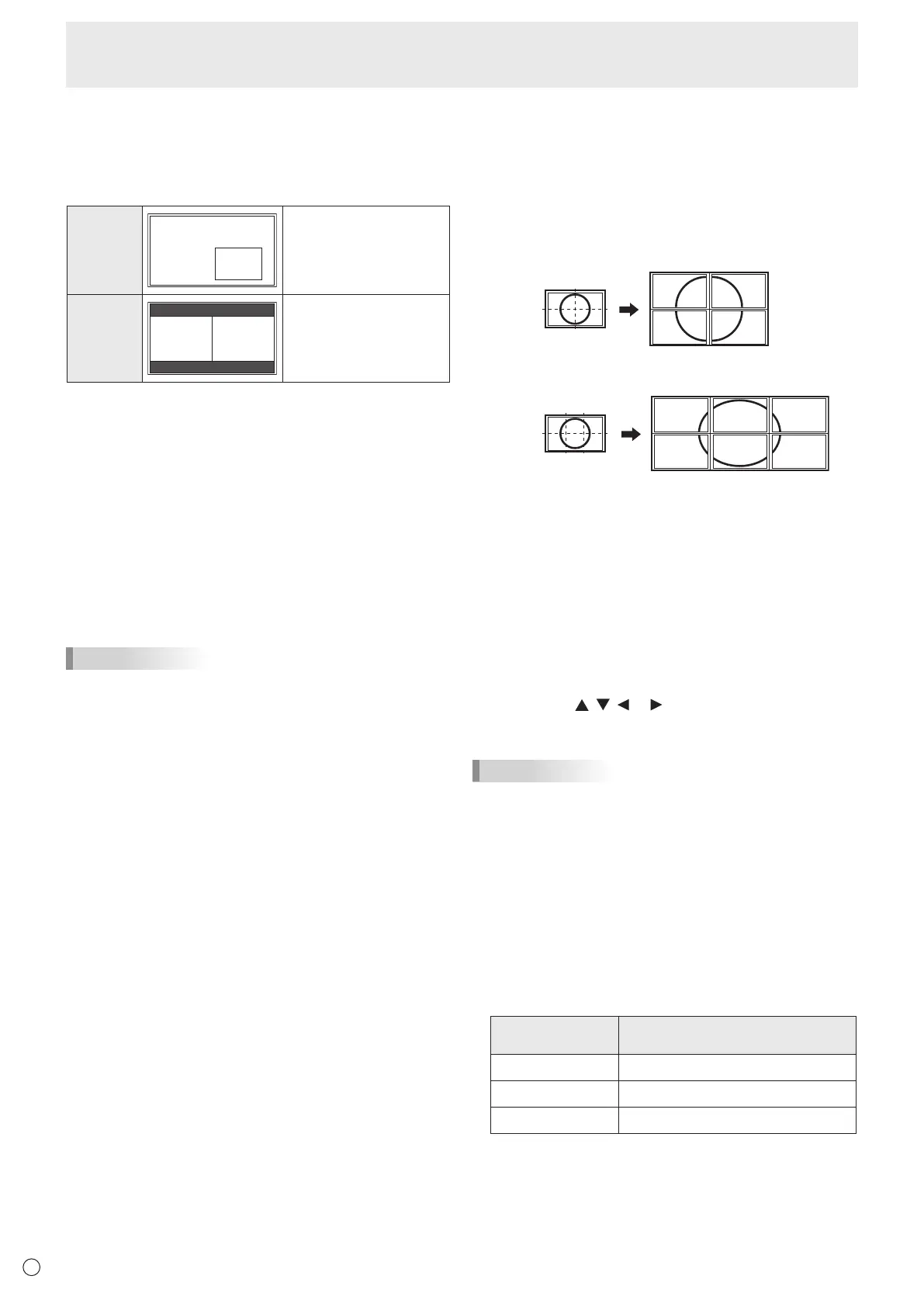

Sharp PN-M401 Operation Manual

30
E
n
Enlarge
• You can align several monitors and integrate them into a
single large screen to display.
• Up to 5 monitors can be aligned in both the horizontal and
vertical directions.
• Each monitor displays enlarged views of separated images.
(Example)
Horizontal direction: 2 monitor
s
Ve
rtical direction: 2 monitors
Horizontal direction: 3 monitor
s
Ve
rtical direction: 2 monitors
Setting procedure
Set using MULTI in the MULTI/PIP menu.
1. Set ENLARGE to ON.
2. Select ADVANCED (ENLARGE).
3. Set the number of monitors aligned in the horizontal
direction in ENLARGE H.
4. Set the number of monitors aligned in the vertical
direction in ENLARGE V.
5. Set the section of the separated image to be displayed
on each monitor in ENLARGE-POS.
1) Press the ENTER button.
2) Press the
, , or button to select position,
then press MENU button.
TIPS
• When Enlarge is used, the CONNECT AUTO INPUT
SELECT function and NO SIGNAL AUTO INPUT SEL.
function are disabled.
• When Enlarge is used, the HDMI AUTO VIEW function is
disabled.
n
ZOOM2 SPECIAL SETTING
If you connect a laptop computer with any of the following
screen resolutions and black bands appear around the screen,
set ZOOM2 SPECIAL SETTING of INPUT SIGNAL on the
SCREEN menu to ON and then select ZOOM2 in the SIZE
setting.
This displays the area inside the black band.
Laptop computer
resolution
Corresponding signal*
1
1280x800 1280x1024, 1280x960, 1400x1050*
2
1280x600 1280x720
1024x600 1024x768
*1: This setting is effective only when the screen resolution,
including the black band, is one of the resolutions listed
above.
*2: Use the automatic screen adjustment.
Menu Items
n
Dual-screen display
You can display two screens simultaneously.
Set this function with PIP MODES of PIP/PbyP in the MULTI/
PIP menu.
Or, press the PIP/PbyP button, and select the mode.
PIP
Main screen
Sub
screen
A sub screen is displayed
inside a main screen.
PbyP
Main
screen
Sub
screen
A main screen and a sub
screen are displayed in a
line.
* The currently selected input signal is displayed on the main
screen.
* The following combinations are available for display:
DisplayPort - HDMI1 or HDMI2
DisplayPort - D-SUB[RGB]
DisplayPort - D-SUB[COMPONENT]
DisplayPort - OPTION
DisplayPort - APPLICATION
HDMI1 - HDMI2
HDMI1 or HDMI2 - D-SUB[RGB]
HDMI1 or HDMI2 - D-SUB[COMPONENT]
HDMI1 or HDMI2 - APPLICATION
HDMI2 - OPTION
D-SUB[RGB] or D-SUB[COMPONENT] - OPTION
D-SUB[RGB] or D-SUB[COMPONENT] - APPLICATION
TIPS
• You might infringe on a copyright of the author which is
protected by copyright law when you display the images of
the computer screen and television/VCR simultaneously for
prot-making or to show the image to the public.
• In PIP, the screen size for dual-screen display is the same
as the size of the main screen for single-screen display.
In PbyP, the screen size for dual-screen display is the same
as the sizes of the main screen and sub-screen for single-
screen display.
In Dot by Dot, the screen size for dual-screen display is
NORMAL except when it is set as the PIP main screen.
• When dual-screen display is selected, the CONNECT
AUTO INPUT SELECT function and NO SIGNAL AUTO
INPUT SEL. function are disabled.
• When dual-screen display is selected and an interlaced
signal (1080i, 480i) is input to the main or sub screen, the
image is not displayed properly.
• When ROTATE 180° is set to ON, you cannot set PIP
MODES to PIP or PbyP.
