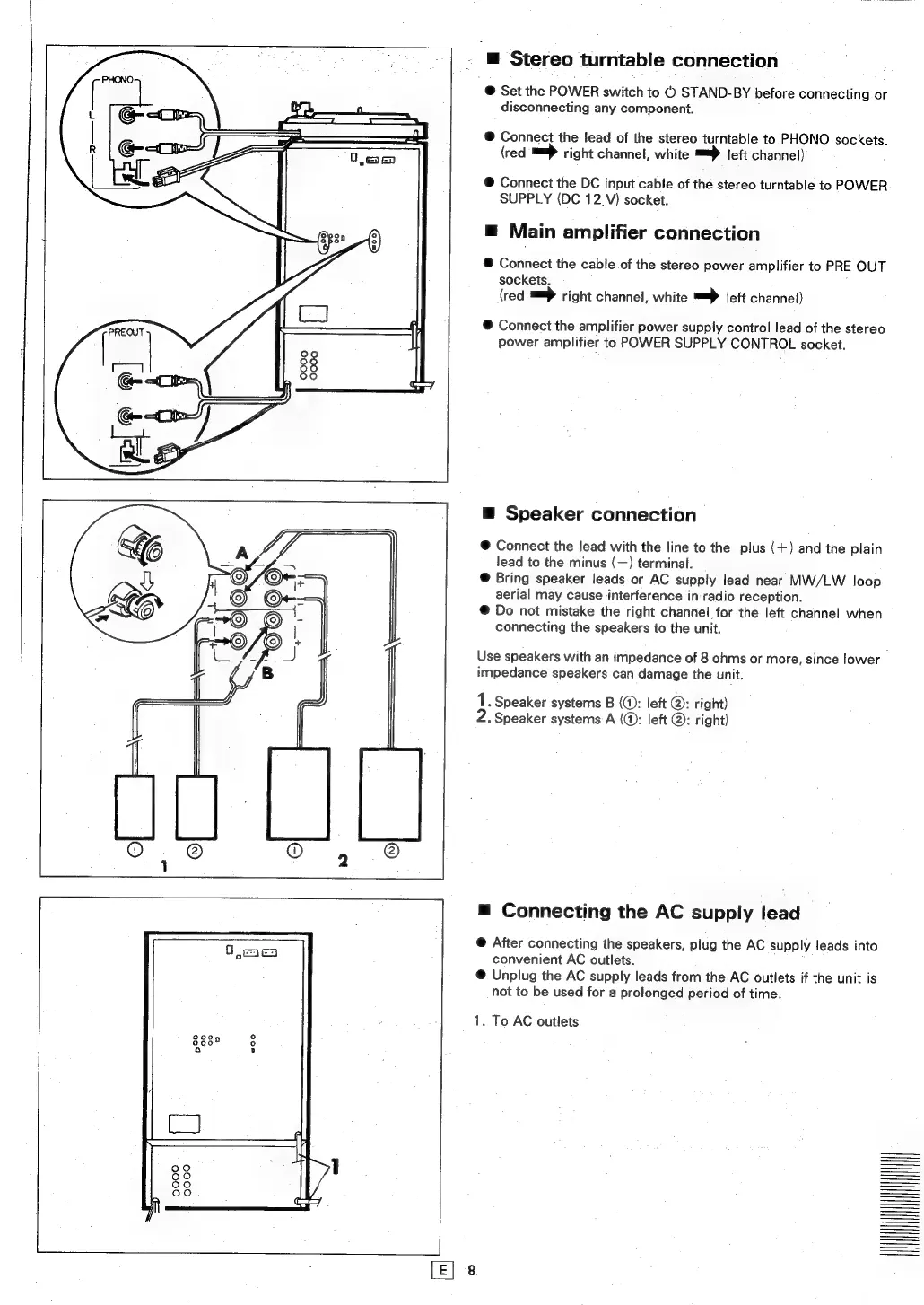

@ Stereo turntable connection
@
Set
the
POWER
switch
to
©
STAND-BY
before
connecting
or
disconnecting
any
component.
@
Connect
the
lead
of
the
stereo
turntable
to
PHONO
sockets.
(red
=>
right
channel,
white
a>
left
channel)
@
Connect
the
DC
input
cable
of
the
stereo
turntable
to
POWER
SUPPLY
(DC
12.
V)
socket.
# Main amplifier connection
@
Connect
the
cable
of
the
stereo
power
amplifier
to
PRE
OUT
sockets.
(red => right channel, white => left channel)
@
Connect
the
amplifier
power
supply
control
lead
of
the
stereo
power
amplifier
to
POWER
SUPPLY
CONTROL
socket.
@ Speaker connection
@
Connect
the
lead
with
the
line
to
the
plus
(+)
and
the
plain
lead
to
the
minus
(—)
terminal.
@
Bring
speaker
leads
or
AC
supply
lead
near
MW/LW
loop
aerial
may
cause
interference
in radio
reception.
@
Do
not
mistake
the
right
channel
for
the
left
channel
when
connecting
the
speakers
to
the
unit.
Use
speakers
with
an
impedance
of
8
ohms
or
more,
since
lower
impedance
speakers
can
damage
the
unit.
1. Speaker systems B (: left @: right)
2. Speaker systems A (@: left @: right)
™ Connecting the AC supply lead
@
After
connecting
the
speakers,
plug
the
AC
supply
leads
into
convenient
AC
outlets.
@
Unplug
the
AC
supply
leads
from
the
AC
outlets
if
the
unit
is
not
to
be
used
for
a
prolonged
period
of
time.
1. To AC outlets
