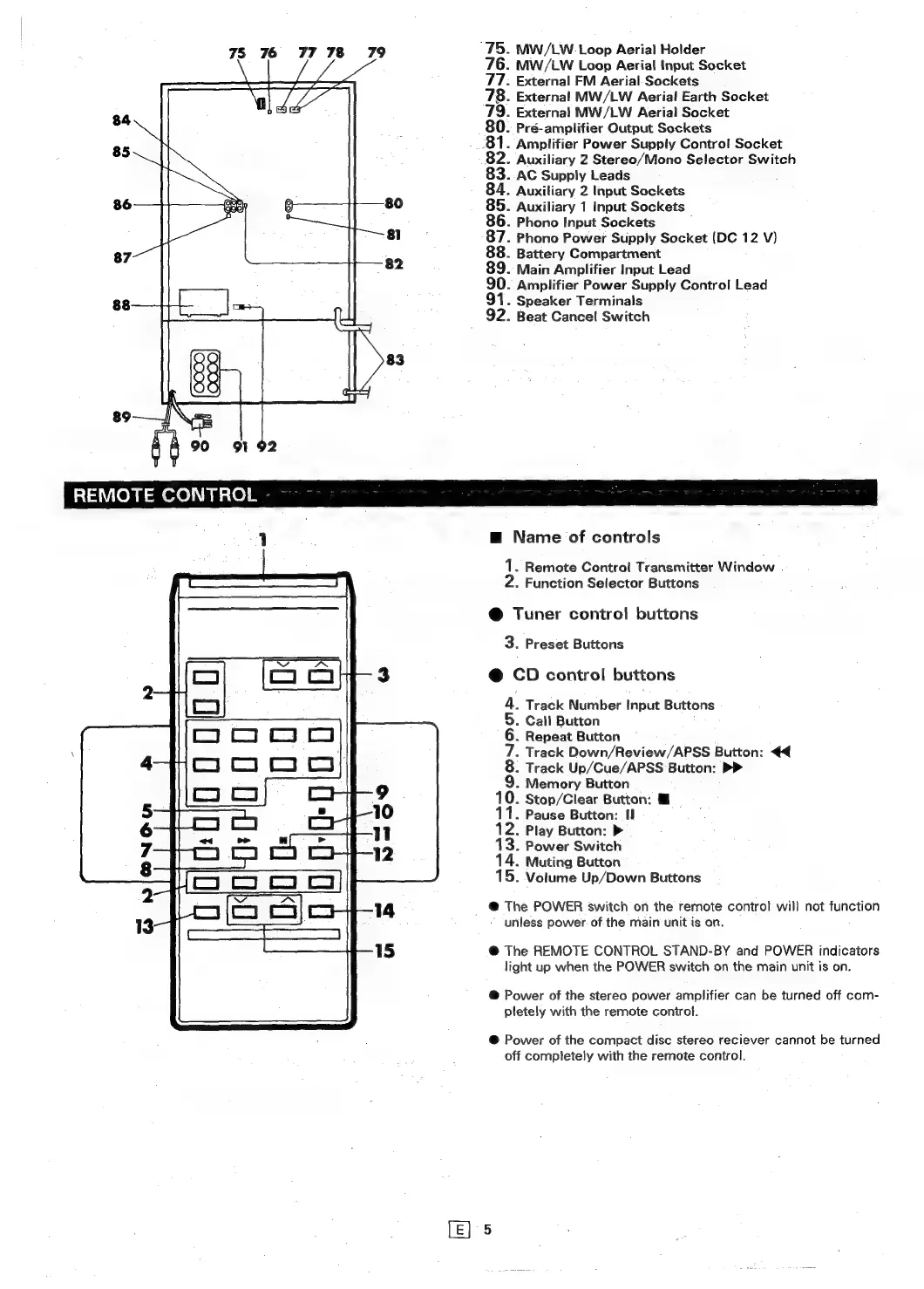

Sharp SM-7700H - REMOTE CONTROL FUNCTIONS; Remote Control Layout; Tuner and CD Control Buttons

‘75. MW/LW. Loop Aerial Holder
76. MW/LW Loop Aerial Input Socket
77. External FM Aerial Sockets
78. External MW/LW Aerial Earth Socket
79. External MW/LW Aerial Socket
80. Pré-amplifier Output Sockets
81. Amplifier Power Supply Control Socket
82. Auxiliary 2 Stereo/Mono Selector Switch
83. AC Supply Leads
84. Auxiliary 2 Input Sockets
85. Auxiliary 1 Input Sockets
86. Phono Input Sockets
87. Phono Power Supply Socket (DC 12 V)
88. Battery Compartment
89. Main Amplifier Input Lead
90. Amplifier Power Supply Control Lead
91. Speaker Terminals
92. Beat Cancel Switch
gm Name of controls
1. Remote Control Transmitter Window
2. Function Selector Buttons
@ Tuner control buttons
3. Preset Buttons
@ CD control buttons
Track Number Input Buttons
. Call Button
. Repeat Button
. Track Down/Review/APSS Button: <4
. Track Up/Cue/APSS Button: >>
- Memory Button
. Stop/Clear Button:
. Pause Button: II
. Play Button: >
. Power Switch
. Muting Button
. Volume Up/Down Buttons
TPWNAOWWON DUS ke ed ed ed ed
@ The POWER switch on the remote control will not function
unless power. of the main unit is on.
@ The REMOTE CONTROL STAND-BY and POWER indicators
light up when the POWER switch on the main unit is on.
®@ Power of the stereo power amplifier can be turned off com-
pletely with the remote contro}.
@ Power of the compact disc stereo reciever cannot be turned
off completely with the remote control.
