Sharp SMD2499FS Service Manual

28
SMD2499FS

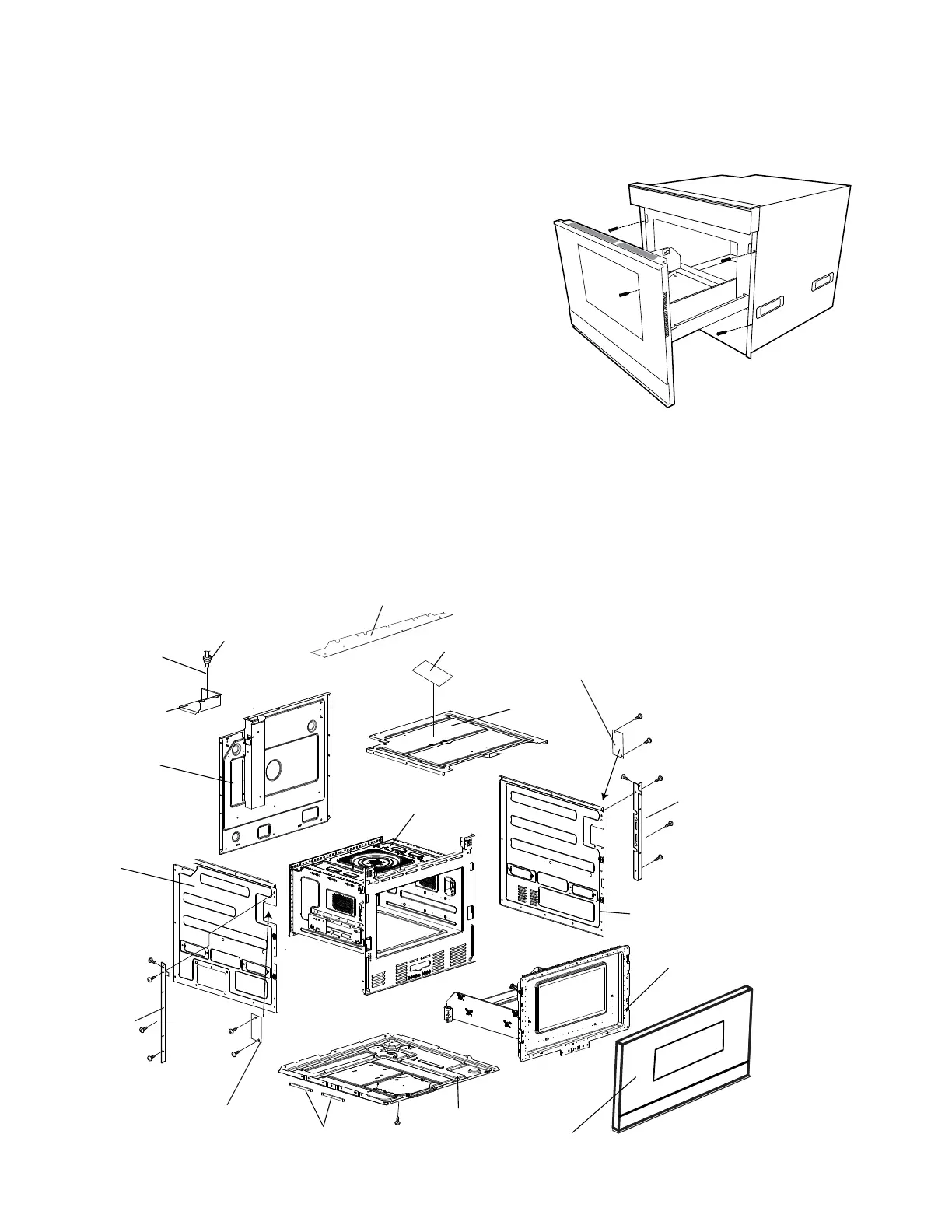

Fig. 1
1. Open the Drawer to access the (4) mounting screws holding the
unit on to the wall or cabinet opening. (Fig 1).
2. Close Drawer and carefully pull the unit out from opening and
unplug the power supply cord. Place unit on a secured surface
to work on.
3. Remove the (2) screws holding AC Cord Mounting
Angle. Lift the mounting angle (with AC Cord attached)
and unplug AC Cord from molex. (Fig 2).
4. Depending on which component you need to service, deside which
Outercase you want to remove.
5. There are (4) Outercase cabinet sides that can be removed.
The amount of screws each Outercase has is as follows:
(8) Rear, (12) Top, (13) Left Side & (11) Right Outercase (Fig 2).
NOTE: You now have access to all components of the Drawer.
WARNING: Follow all safety precautions as stated at the beginning of this Service
Manual before proceeding!
Fig. 2
CONVECTION MICROWAVE DRAWER DISASSEMBLY
Cavity
Door Panel
Door
Frame
Assy
AC Cord
Mount Angle
AC Cord
Cord Bushing
Side Angle
Left Outer Case
Schematic Diagram
Side Angle
Latch Cover Plate
Right Outer Case
Bottom Plate
Rear Outer Case
Top Outer Case
C/P Cover
Latch Cover Plate
Bottom Plate Cushions
x12

Sharp SMD2499FS Specifications

General

Style	drawer
Color	stainless steel
Total Capacity	1.4 cu. ft.
Convection	yes
Power Levels	11
Sensor Cooking	yes
Quick Start	yes
Timer	yes
Wi-Fi	yes
Remote Control	yes
Max Power Consumption	900 watts
Microwave Power	900 watts
Voltage	115 volts
Current	15

Weight and Dimensions

Depth	20-7/8"; 27"; 20 7/8 inch; 23-1/2"; 16-7/16"
Height	19 1/2 inch; 19-3/4"; 8-3/4"; 19-1/2"; 24-1/2"; 19-3/8"
Width	23-5/8"; 27-1/2"; 22-3/8"; 23 5/8 inch; 23-7/8"; 16-15/16"
